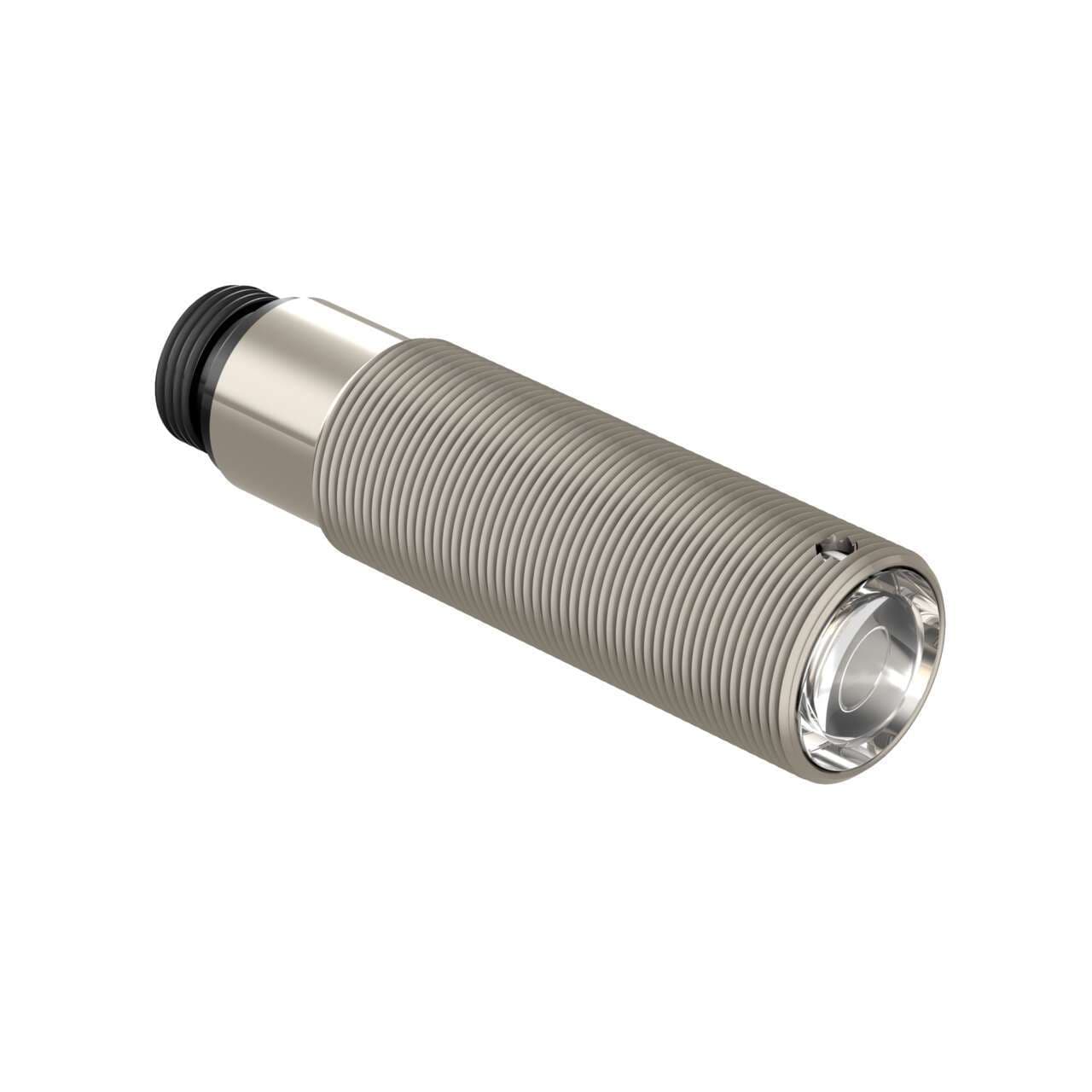

SM2A30SRLNCQD Banner Proximity Sensors
Part#:SM2A30SRLNCQD
Alt. Part#:27296
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency A Stainless Stl; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 3-pin Mini Integral QD
Product Details
- Weight 303.453048 g
- Country Of Origin MX
- Power AC
- Power Supply/Supply Voltage 24-240 V ac
- IP Rating IP67
- Feature: Hazardous Area No
- Connection Integral QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- IO Link No
- Sensing Mode (General) Opposed
- Housing Style Barrel
- Input/Output Solid-State AC Switch
- Output response time (ms) 10
- Max Sensing Distance (mm) 150000
- Operation Dark Operate
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant Yes
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Receiver
- Primary Housing Material Stainless Steel
- Quick Disconnect Type 7/8 in. (Mini)
- Delay at Power-up (ms) N/A
- Opposed Mode Emitter/Receiver Receiver
- Number of Pins 3
- Indicator LEDs
- Sensing Beam Infrared LED
- Min Op. Temp. (°C) -40
- Outputs Solid-State AC Switch
- Special Feature: Remote Teach No
- Repeatability (µs) 1000
- Feature: Encapsulated Yes
- Feature: Audible No
- Adjustments N/A
- Lens Material Acrylic
- DeviceNet No
- Special Feature: Intrinsically Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30SRLNCQD on Powermatic Associates is $344.00. Order now.
About the product
Banner Engineering SM2A30SRLNCQD is a photo-electric sensor designed for through-beam system applications with an "A" modulation frequency and is washdown rated. This sensor, part of the SM30 series, functions as a receiver alone and is housed in stainless steel. It comes pre-equipped with a 3-pin 7/8" mini connector for connectivity. The sensor operates on a supply voltage range of 24Vac-240Vac, with nominal voltages of 200Vac and 220Vac. It is designed to function in ambient air temperatures ranging from -40 to +70°C. The SM2A30SRLNCQD offers a degree of protection rated at IP67, NEMA 6P, and IP69K, making it suitable for harsh environmental conditions. Its shape is an M30 cylindrical threaded/barrel, and it features 1 x digital output (Solid-state AC output) for signaling. The sensing distance of this sensor is 150m, utilizing infrared (IR) light with a wavelength of 880 nm. It has a response time of 10ms / 0.01 s and operates in Dark-ON mode. The thread size for mounting is M30.
