SM2A30SRLNCQDC Banner Proximity Sensors
Part#:SM2A30SRLNCQDC
Alt. Part#:35913
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Receiver - Frequency C Stainless Stl; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Dark Operate; 3-pin Mini Integral QD
Product Details
- Weight 304.813824 g
- Country Of Origin MX
- Outputs Solid-State AC Switch
- Special Feature: Remote Teach No
- Adjustments N/A
- Housing Style Barrel
- Operation Dark Operate
- Repeatability (µs) 2300
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- Sensing Mode (Detailed) Receiver
- Power AC
- Primary Housing Material Stainless Steel
- Input/Output Solid-State AC Switch
- Max Sensing Distance (mm) 150000
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -40
- Quick Disconnect Type 7/8 in. (Mini)
- Output response time (ms) 10
- Connection Integral QD
- Power Supply/Supply Voltage 24-240 V ac
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Audible No
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Timing (Hold/Delay) No
- Delay at Power-up (ms) N/A
- Indicator LEDs
- IO Link No
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Receiver
- Number of Pins 3
- Barrel Diameter (mm) 30
- DeviceNet No
- NEMA Rating NEMA 6P
- Feature: Chemical Resistant Yes
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM2A30SRLNCQDC on Powermatic Associates is $364.00. Order now.
About the product

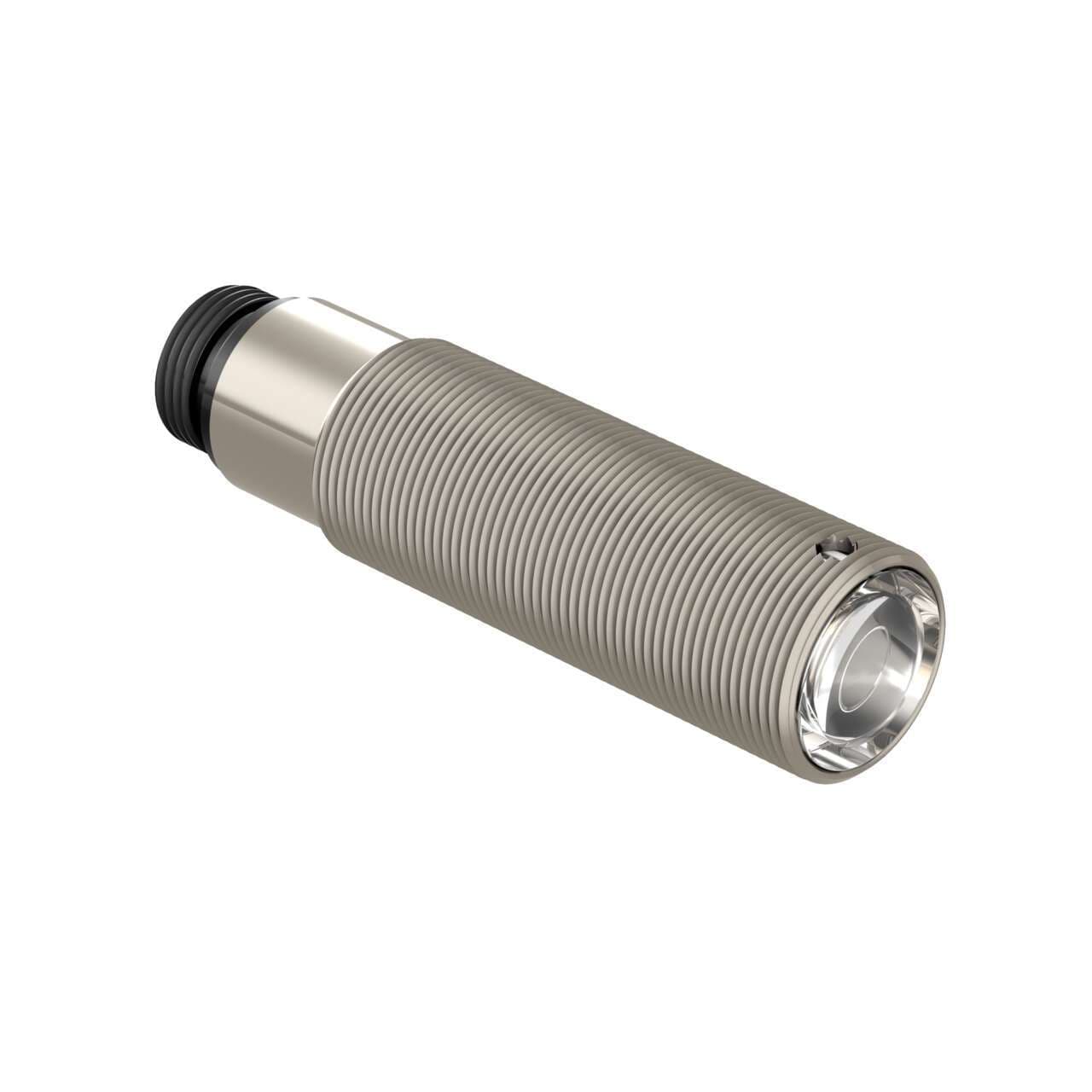

Banner Engineering SM2A30SRLNCQDC is a photo-electric sensor designed for through-beam system applications, part of the SM30 series. This sensor operates as a receiver alone, featuring a stainless steel housing and is pre-equipped with a 3-pin 7/8" mini connector for connectivity. It supports a supply voltage range of 24Vac to 240Vac, with nominal voltages at 200Vac and 220Vac. The sensor can operate within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, NEMA 6P, and IP69K, making it suitable for washdown environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The SM2A30SRLNCQDC provides one digital output (Solid-state AC output) and has a sensing distance of up to 150 meters. It utilizes infrared light with a wavelength of 880 nm and has a response time of 10ms (0.01 s). The operating mode is Dark-ON, tailored for applications requiring opposed mode "C" modulation frequency.
