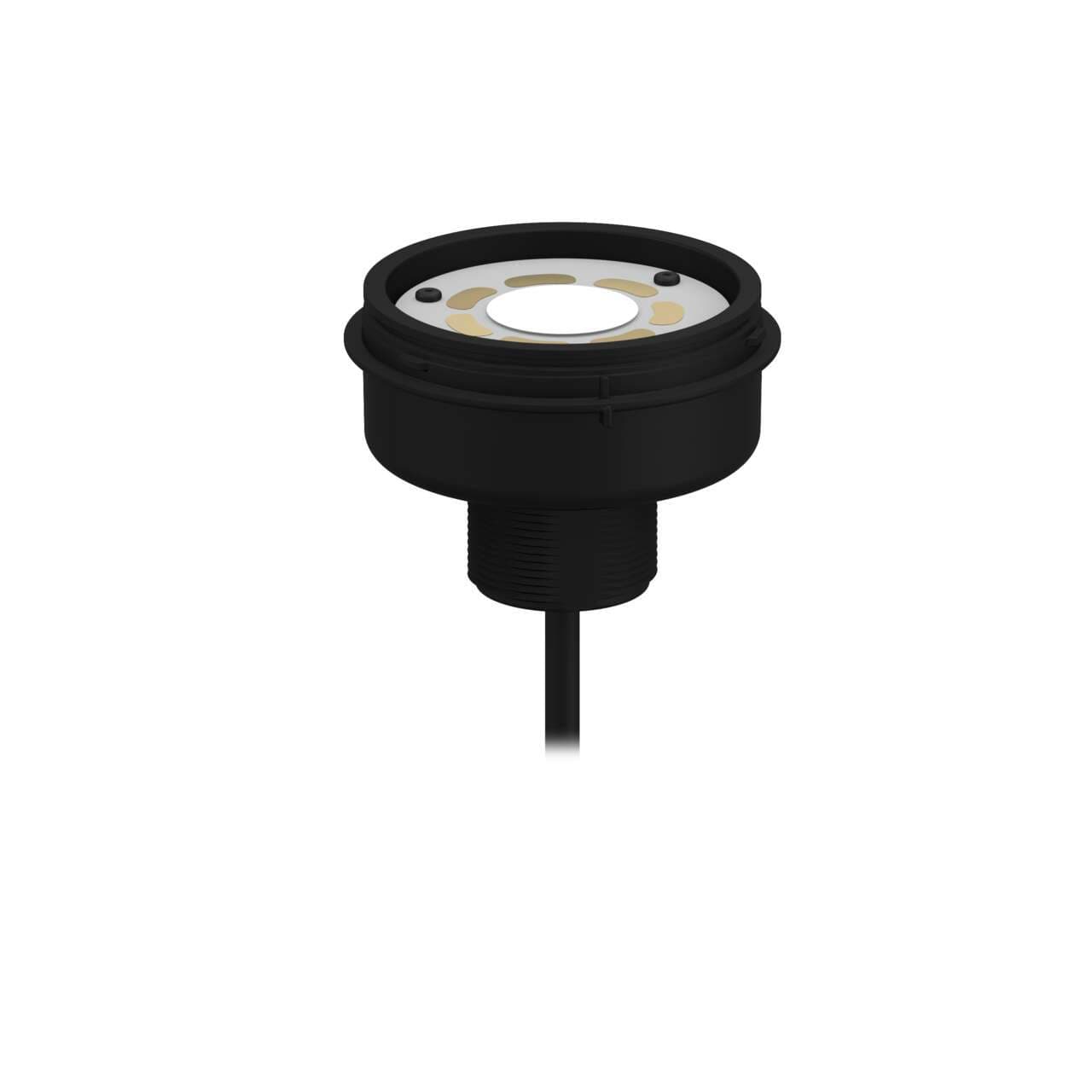

B-TL70-8 Banner Signal Towers
Part#:B-TL70-8
Alt. Part#:92224
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL70 Base Module; Supports 1-6 Modules; Voltage: 12-30 V dc; Environmental Rating: IP65; 8 Wire 2 m (6.5 ft) Integral Cable; Black Housing
Product Details
- Weight 226.796 g
- Country Of Origin MX
- Cable Length (m) 0.15
- Number of Input Pins/Conductors 8
- Storage Temp (°C) -40 to 70
- Wireless No
- Non-Illuminated Yes
- Power Source DC
- Housing Style Segment - Base
- Input Type Bimodal (PNP/NPN)
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Audible No
- IO Link No
- Number of Colors / Segments 1
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 47.5
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- Max Current Color (mA) 420
- Environmental Rating IP65
- Feature: Quick Disconnect No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Cable
- Product Size (mm) 70
- Feature: Hazardous Area No
- Indication Yes
- Power DC
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 50
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Max Input Response Time (ms) 180
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of B-TL70-8 on Powermatic Associates is $53.00. Order now.
About the product
Banner Engineering B-TL70-8 is a base unit belonging to the Modular series, designed as a base segment/module with a black polycarbonate housing. It supports the integration of 1-6 modules and operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This unit features a cylindrical shape with a diameter of 70mm / 2-3/4" and is pre-wired with a 2m / 6.5ft 8-core cable terminated with bare end flying leads for connectivity. It offers a degree of protection rated at IP65 and can be mounted via surface or base pole with an M30 thread. The B-TL70-8 is designed to operate within an ambient air temperature range of -40°C to +50°C and includes 6 x digital inputs (12-30Vdc; PNP/NPN) for color control, with a current consumption of 420mA.
