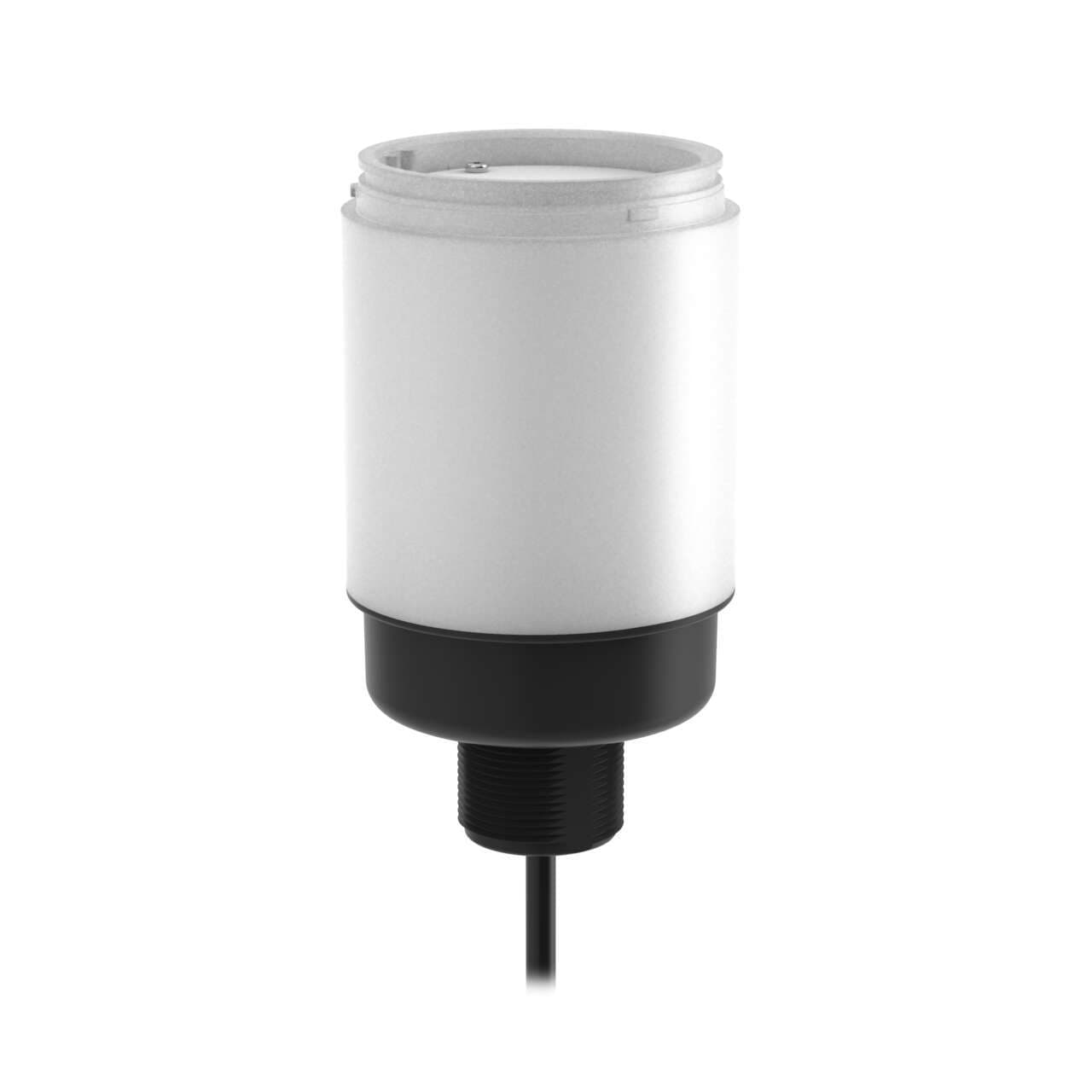

B-TL70Z-7 Banner Signal Towers
Part#:B-TL70Z-7
Alt. Part#:97514
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description
TL70 Base Module; Supports 1-6 Modules; Voltage: 100-240 V ac; Environmental Rating: IP65; 2 m (6.5 ft) Integral Cable; Black Housing
Product Details
- Weight 589.6696 g
- Country Of Origin MX
- Indication Yes
- Color Technology Standard LED
- Min Op. Temperature (°C) -40
- Wireless No
- Connection Cable
- Storage Temp (°C) -40 to 70
- Non-Illuminated Yes
- Input Type AC
- IO Link No
- Housing Style Segment - Base
- Product Size (mm) 70
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Max Input Response Time (ms) 240
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power Source AC
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 115.8
- Feature: Hazardous Area No
- Power AC
- Environmental Rating IP65
- Primary Housing Color Black
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 7
- Max Op. Temperature (°C) 50
- Number of Colors / Segments 1
- Supply Voltage 100-240 V ac
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of B-TL70Z-7 on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering B-TL70Z-7 is a base unit belonging to the Modular series, designed as a base segment/module with a black polycarbonate housing. It supports 1-6 modules and is characterized by its cylindrical shape with a diameter of 70mm / 2-3/4". This unit is pre-wired with a 2m / 6.5ft 7-core cable terminated with bare end flying leads, facilitating easy installation. It operates on a supply voltage of 100Vac-240Vac (120Vac / 220Vac / 230Vac) and is designed for surface or base pole mounting with an M30 thread. The B-TL70Z-7 offers a degree of protection rated at IP65, making it suitable for various environmental conditions, with an operational ambient air temperature range of -40°C to +50°C. It features 6 x digital inputs (100-240Vac) for color control and has a current consumption of 420mA.
