B-TL70Z-Q5 Banner Signal Towers
Part#:B-TL70Z-Q5
Alt. Part#:97515
Manufacturer:Banner
Category:Signal Towers
Product Lifecycle:Active
Product description

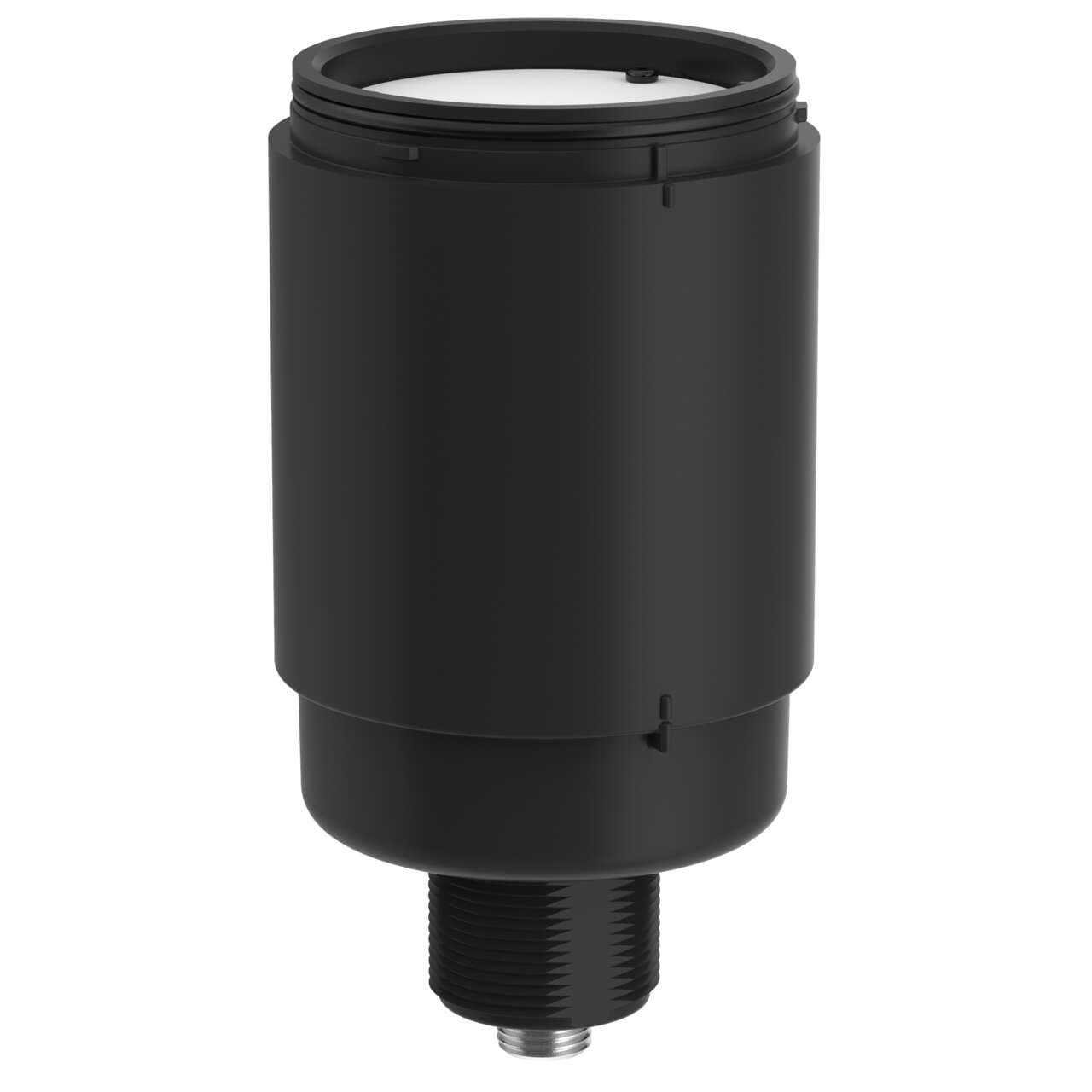

TL70 Base Module; Supports 1-4 Modules; Voltage: 100-240 V ac; Environmental Rating: IP65; 5-pin Micro Integral QD; Black Housing
Product Details
- Weight 430.9124 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Power AC
- Connection Integral QD
- Max Op. Temperature (°C) 50
- IO Link No
- Modbus RTU No
- Power Source AC
- Housing Style Segment - Base
- Input Type AC
- Feature: Audible No
- Wireless No
- Indication Yes
- Supply Voltage 100-240 V ac
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 115.8
- Min Op. Temperature (°C) -40
- Number of Colors / Segments 1
- Cable Length (m) 2
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Color Technology Standard LED
- Max Input Response Time (ms) 240
- Primary Housing Color Black
- Product Size (mm) 70
- Number of Input Pins/Conductors 5
- Storage Temp (°C) -40 to 70
- Non-Illuminated Yes
- Environmental Rating IP65
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of B-TL70Z-Q5 on Powermatic Associates is $158.00. Order now.
About the product
Banner Engineering B-TL70Z-Q5 is a base unit belonging to the Modular series, designed as a base segment/module with a black polycarbonate housing. It supports 1-4 modules and features a cylindrical shape with a diameter of 70mm / 2-3/4". This unit operates on a supply voltage of 100Vac-240Vac (120Vac / 220Vac / 230Vac) and is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It offers a degree of protection of IP65 and can be mounted via surface or base pole with an M30 thread. The B-TL70Z-Q5 operates within an ambient air temperature range of -40°C to +50°C and includes 4 x digital inputs (100-240Vac) for color control, with a current consumption of 420mA.
