BT63ST5-VL Banner Fiber Optic Sensors

BT63ST5-VL on Powermatic Associates
Banner
  • BT63ST5-VL
  • BT63ST5-VL

Part#:BT63ST5-VL

Alt. Part#:96012

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

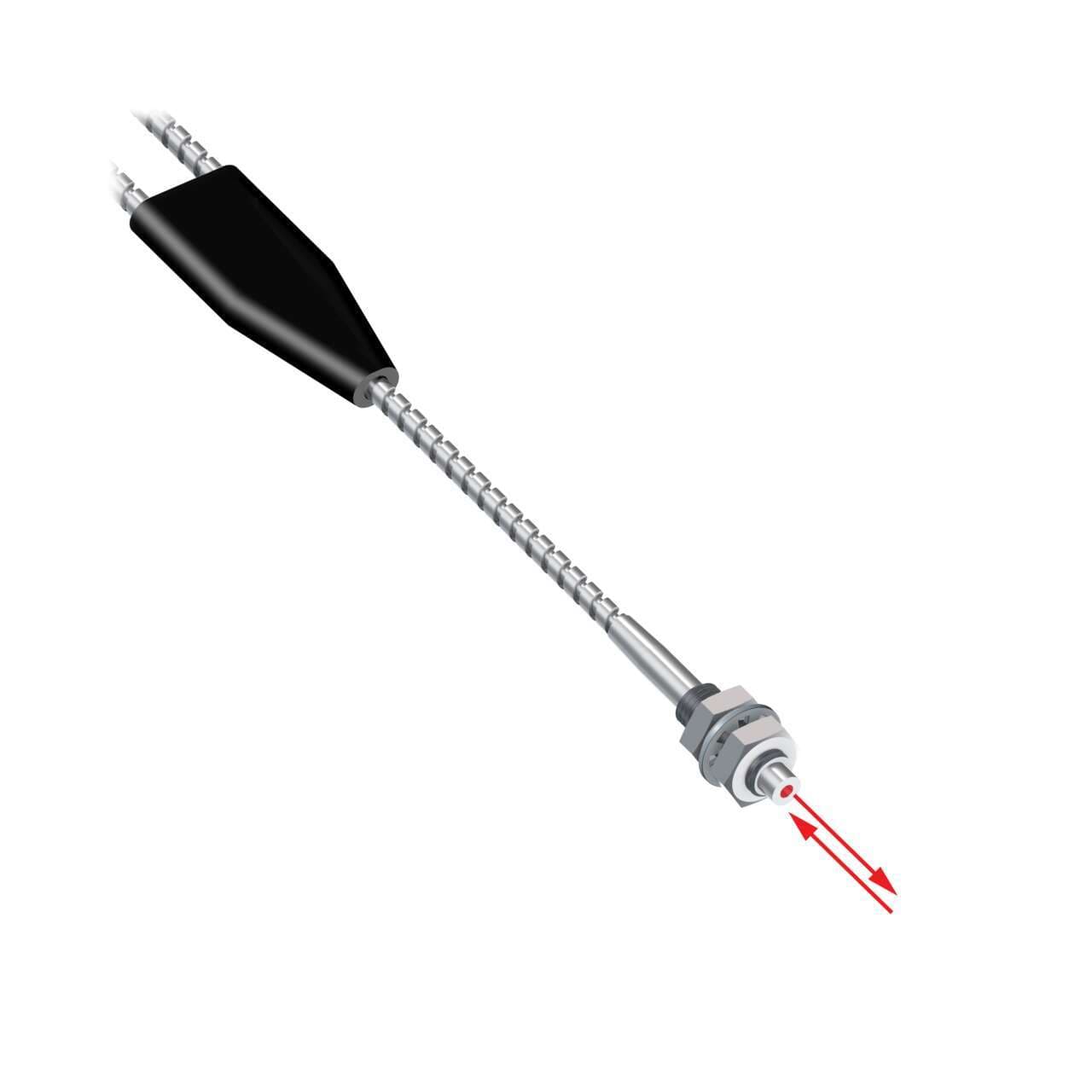

Glass Fiber; Bifurcated 1.5 mm Bundle; M6 Threaded Tip; Stainless Sheathing 1 m Long; Terminated For Plastic Fiber Sensors; Vantage Line

Product Details

  • Weight
    28.8484512 g
  • Country Of Origin
    US
  • Main function
    Fiber sensor
  • Functions
    Fiber optic sensor
  • Thread size
    M6
  • Equivalent to
    BT63ST5VL
  • Sub-range name
    Glass fiber series
  • Shape
    Cylindrical (threaded) end tip
  • Length
    3ft / 1m
  • Order code / Manufacturer SKU
    96012
  • Diameter
    1.5mm fiber core
  • Primary brand
    Banner Engineering
  • Design
    diffuse-reflective system Bifurcated fiber
  • Ambient air temperature for operation
    +249 °C
  • Product series / family name
    Fiber sensors
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
  • Sensing Mode (Detailed)
    Reflective
  • Sensing Mode (General)
    Diffuse
  • Fiber Length (m)
    1
  • Fiber Sensing End Size
    M6
  • Termination
    Terminated
  • Feature: Extended Range
    No
  • Fiber Sensing End Size - Mounting Area
    M6
  • Quantity Included
    1
  • Flex Relief
    Yes
  • Feature: Small Object Detection
    No
  • Max Distance: DF-G3 (mm)
    1446
  • Sensing End Material (Specific)
    Stainless Steel
  • Sensing End Segment 1
    Thread
  • Application: Liquid Level
    No
  • Beam Exit
    In-line
  • Feature: Chemical Resistant
    No
  • Measured Max Distance (mm)
    186
  • Max Range: DF-G3 (mm)
    >1m - <=3m
  • Fiber Sensing End Tip
    Thread
  • Minimum Bend Radius (mm)
    25
  • Tariff Fiber Meters (fbm)
    730
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Max Temp ( °C)
    249
  • Application: Vacuum Feed Through
    None
  • Fiber Optic Type
    Glass
  • Retractile
    No
  • Integrated Lens
    No
  • Max Distance: DF-G2 (mm)
    301
  • Housing Style
    Round
  • Core Diameter (mm)
    1.5
  • Termination Type
    Plastic Fiber Sensors
  • Max Distance: DF-G1 (mm)
    186

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BT63ST5-VL on Powermatic Associates is $145.00. Order now.

About the product

Banner Engineering BT63ST5-VL is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system. It features a flexible, bifurcated fiber with in-line sensing capabilities. The sensing end is made of stainless steel, while the fiber itself is glass, encased in stainless flexible tubing for added durability. The fiber core has a diameter of 1.5mm, and the sensor's end tip is cylindrical with threading for easy installation. It measures 3 feet (approximately 1 meter) in length. This sensor is capable of operating in ambient air temperatures up to +249°C.

BT63ST5-VL Related Documents

BT6 SERIES GLASS FIBER M6 THREAD VL-1630955270761.stpBT6 SERIES GLASS FIBER M6 THREAD VL-1630955270764.pdf
