BT66ST5-VL Banner Fiber Optic Sensors

BT66ST5-VL on Powermatic Associates
Banner
  • BT66ST5-VL
  • BT66ST5-VL

Part#:BT66ST5-VL

Alt. Part#:96023

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

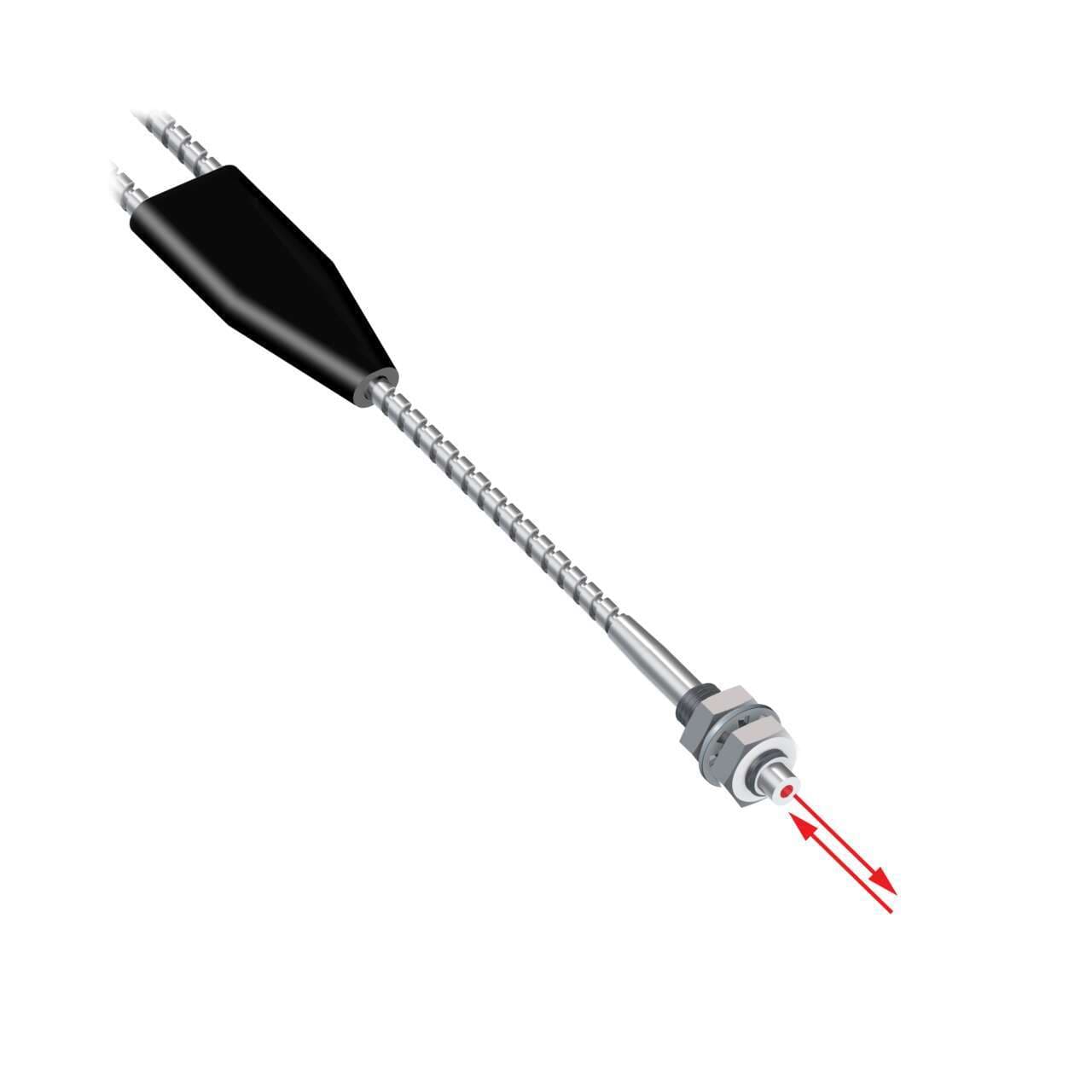

Glass Fiber; Bifurcated 1.5 mm Bundle; M6 Threaded Tip; Stainless Sheathing 2 m Long; Terminated For Plastic Fiber Sensors; Vantage Line

Product Details

  • Weight
    80.9208128 g
  • Country Of Origin
    US
  • Primary brand
    Banner Engineering
  • Product series / family name
    Fiber sensors
  • Diameter
    1.5mm fiber core
  • Thread size
    M6
  • Equivalent to
    BT66ST5VL
  • Design
    diffuse-reflective system Bifurcated fiber
  • Material
    Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
  • Sub-range name
    Glass fiber series
  • Shape
    Cylindrical (threaded) end tip
  • Length
    6ft / 2m
  • Main function
    Fiber sensor
  • Functions
    Fiber optic sensor
  • Ambient air temperature for operation
    +249 °C
  • Order code / Manufacturer SKU
    96023
  • Max Range: DF-G3 (mm)
    >1m - <=3m
  • Flex Relief
    Yes
  • Sensing End Material (Specific)
    Stainless Steel
  • Retractile
    No
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing End Segment 1
    Thread
  • Housing Style
    Round
  • Minimum Bend Radius (mm)
    25
  • Max Distance: DF-G2 (mm)
    285
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Length (m)
    2
  • Fiber Optic Type
    Glass
  • Fiber Sensing End Tip
    Thread
  • Quantity Included
    1
  • Integrated Lens
    No
  • Beam Exit
    In-line
  • Feature: Chemical Resistant
    No
  • Max Distance: DF-G1 (mm)
    176
  • Termination Type
    Plastic Fiber Sensors
  • Core Diameter (mm)
    1.5
  • Tariff Fiber Meters (fbm)
    1524
  • Fiber Sensing End Size
    M6
  • Feature: Extended Range
    No
  • Sensing Mode (General)
    Diffuse
  • Application: Vacuum Feed Through
    None
  • Max Temp ( °C)
    249
  • Measured Max Distance (mm)
    176
  • Max Distance: DF-G3 (mm)
    1368
  • Application: Liquid Level
    No
  • Termination
    Terminated
  • Fiber Sensing End Size - Mounting Area
    M6
  • Feature: Small Object Detection
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BT66ST5-VL on Powermatic Associates is $194.00. Order now.

About the product

Banner Engineering BT66ST5-VL is a fiber sensor belonging to the Glass fiber series, designed with a diffuse-reflective system. It features a flexible, bifurcated fiber with in-line sensing capabilities. The sensing end is made of stainless steel, while the fiber itself is glass, encased in stainless flexible tubing for added durability. The fiber core has a diameter of 1.5mm, and the sensor's end tip is cylindrical with threading for secure installation. It has a length of 6ft (approximately 2m) and is capable of operating in ambient air temperatures up to +249°C.

BT66ST5-VL Related Documents

BT6 SERIES GLASS FIBER M6 THREAD VL-1630954989098.stpBT6 SERIES GLASS FIBER M6 THREAD VL-1630954989096.pdf

Manufacturer warranty

BT66ST5-VL Banner

$194.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$194.00

$194.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
