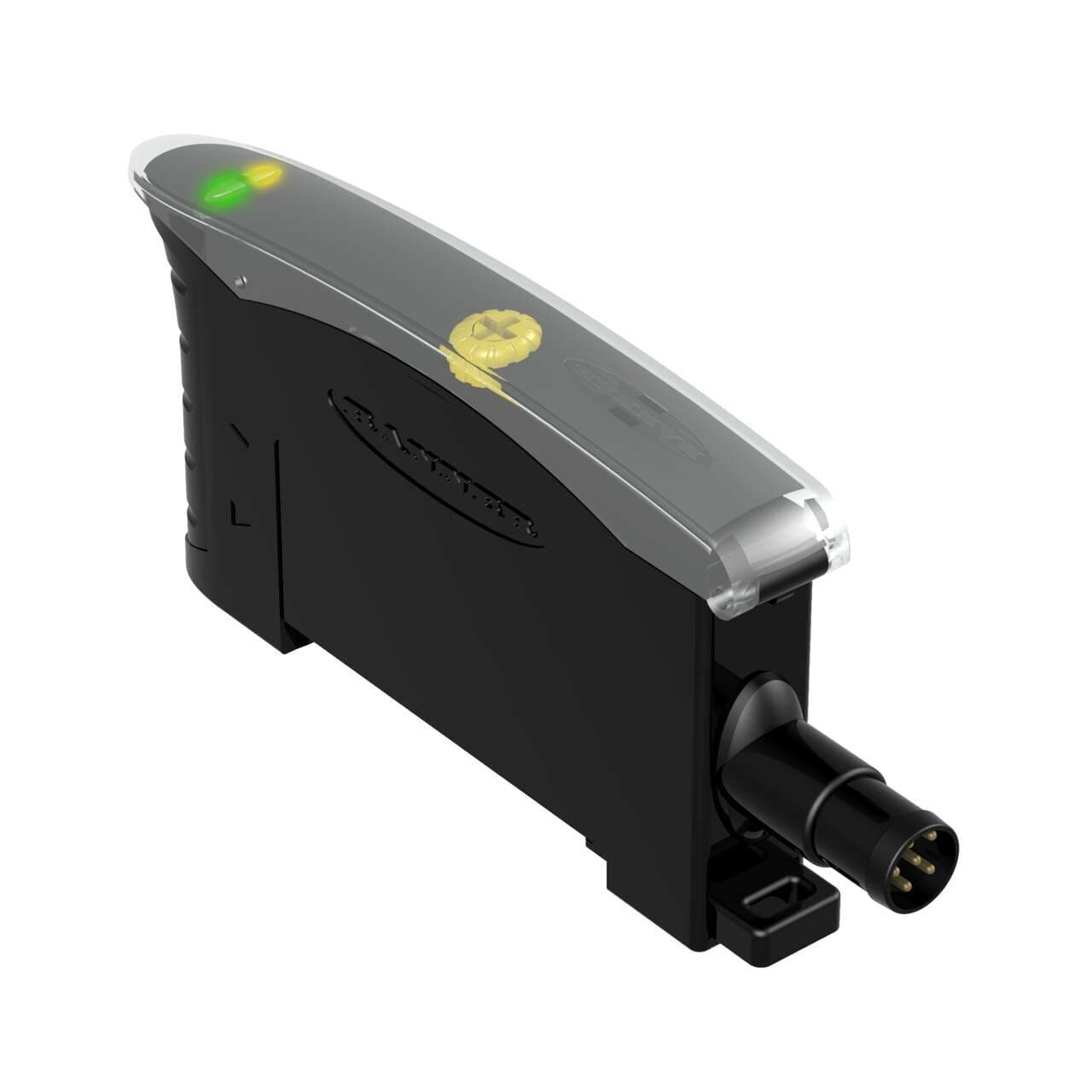

D10AFPQ5 Banner Sensor Accessories

Product Details

• Weight
  72.57472 g
• Country Of Origin
  CN
• Shape
  Rectangular
• Degree of protection
  IP50 NEMA 1
• Display
  LED 4 digits display
• Light Color
  Visible red
• Digital outputs
  1 x digital output (NPN/PNP transistor)
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Response time
  500ms / 0.5 s
• Material
  thermoplastic housing Polycarbonate cover
• Contents
  mounting bracket M3 hardware
• Main function
  Amplifier for sensor
• Sub-range name
  D10 series
• Product series / family name
  Fiber optic amplifiers
• Functions
  High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) potentiometer adjustment
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Mounting mode
  DIN rail mounting
• Compliant with standard(s)
  cURus CE
• Order code / Manufacturer SKU
  74181
Net Depth (mm)
35.9 mm
Ambient air temperature for operation
-20...+55 °C
Net Height (mm)
68.1 mm
Technical compatibility with
plastic fiber optic cable
Net Width (mm)
10.5 mm
Housing Style
DIN Rail
NEMA Rating
NEMA 1
Power Supply/Supply Voltage
10-30 V dc
Minimum response time (ms)
.5
Input/Output
Discrete
Max Op. Temperature (°C)
55
Indicator Display Type
Indicator LEDs
Connection
Integral QD
Number of Pins
4
Special Feature: Remote Teach
No
Primary Housing Material
Thermoplastic
Output Type (Specific)
Single Discrete
Max Op. Relative Humidity (%)
90% @ 55°C
Housing Material
Thermoplastic
Fiber Type
Plastic and Glass
Crosstalk Avoidance
Yes
Feature: Audible
No
Intrinsically Safe
No
Feature: Hazardous Area
No
Color LED - Amplifiers
Red
Repeatability (µs)
95
Delay at Power-up (ms)
100
Output
Bipolar (NPN & PNP)
Adjustments
Potentiometer
Power
DC
IP Rating
IP50
Feature: Timing (Hold/Delay)
Yes
Quick Disconnect Type
M12 (Euro)
Min Op. Temperature (°C)
-20
Special Feature: Bussable Power
No
IO Link
No
