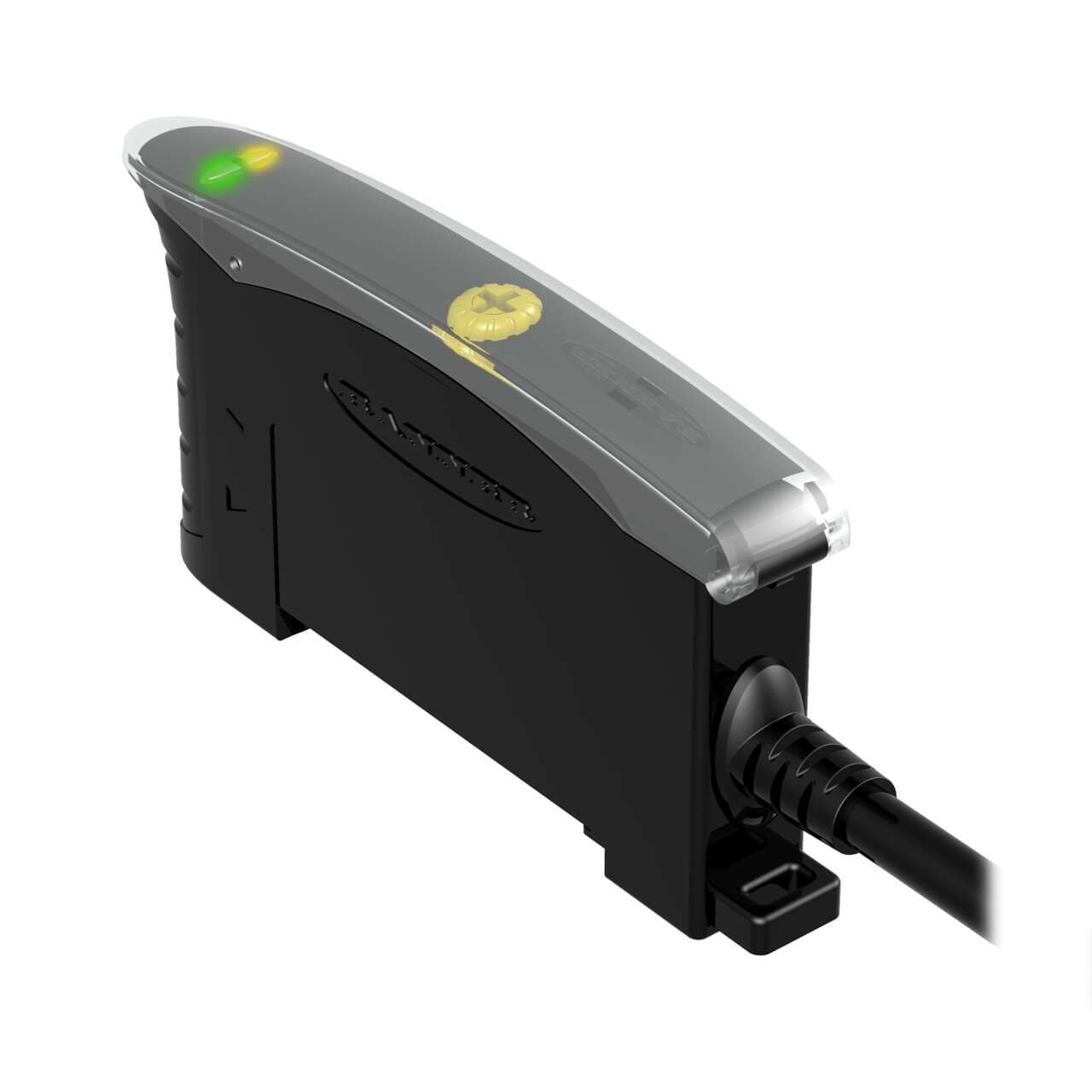

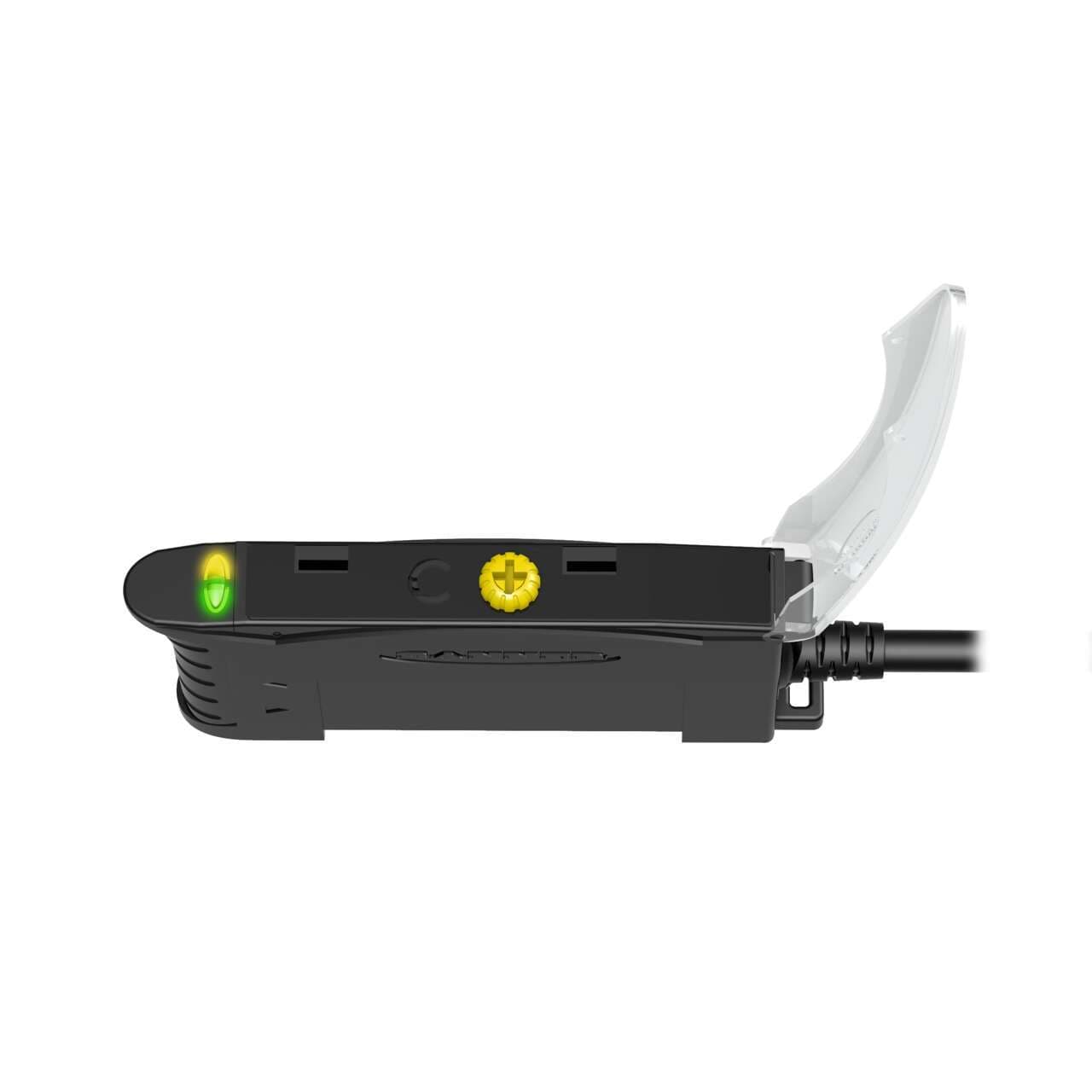

D10AFPY Banner Sensor Accessories

Product Details

• Weight
  99.79024 g
• Country Of Origin
  CN
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Response time
  200ms / 0.2 s
• Display
  LED 4 digits display
• Primary brand
  Banner Engineering
• Sub-range name
  D10 series
• Shape
  Rectangular
• Functions
  High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) potentiometer adjustment
• Ambient air temperature for operation
  -20...+55 °C
• Product series / family name
  Fiber optic amplifiers
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Mounting mode
  DIN rail mounting
• Compliant with standard(s)
  cURus CE
• Net Depth (mm)
  35.9 mm
• Main function
  Amplifier for sensor
• Light Color
  Visible red
• Degree of protection
  IP50 NEMA 1
• Material
  thermoplastic housing Polycarbonate cover
• Technical compatibility with
  plastic fiber optic cable
Digital outputs
1 x digital output (NPN/PNP transistor)
Net Height (mm)
68.1 mm
Contents
mounting bracket M3 hardware
Net Width (mm)
10.5 mm
Order code / Manufacturer SKU
73121
Primary Housing Material
Thermoplastic
IP Rating
IP50
Adjustments
Potentiometer
IO Link
No
Fiber Type
Plastic and Glass
Quick Disconnect Type
No QD
Special Feature: Remote Teach
No
Minimum response time (ms)
.2
Repeatability (µs)
50
Crosstalk Avoidance
Yes
Special Feature: Bussable Power
No
Output Type (Specific)
Single Discrete
Intrinsically Safe
No
Feature: Audible
No
NEMA Rating
NEMA 1
Feature: Timing (Hold/Delay)
Yes
Housing Style
DIN Rail
Number of Pins
4
Delay at Power-up (ms)
100
Power
DC
Output
Bipolar (NPN & PNP)
Max Op. Relative Humidity (%)
90% @ 55°C
Indicator Display Type
Indicator LEDs
Color LED - Amplifiers
Red
Min Op. Temperature (°C)
-20
Feature: Hazardous Area
No
Cable Length (m)
2
Connection
Cable
Power Supply/Supply Voltage
10-30 V dc
Input/Output
Discrete
Max Op. Temperature (°C)
55
Housing Material
Thermoplastic
