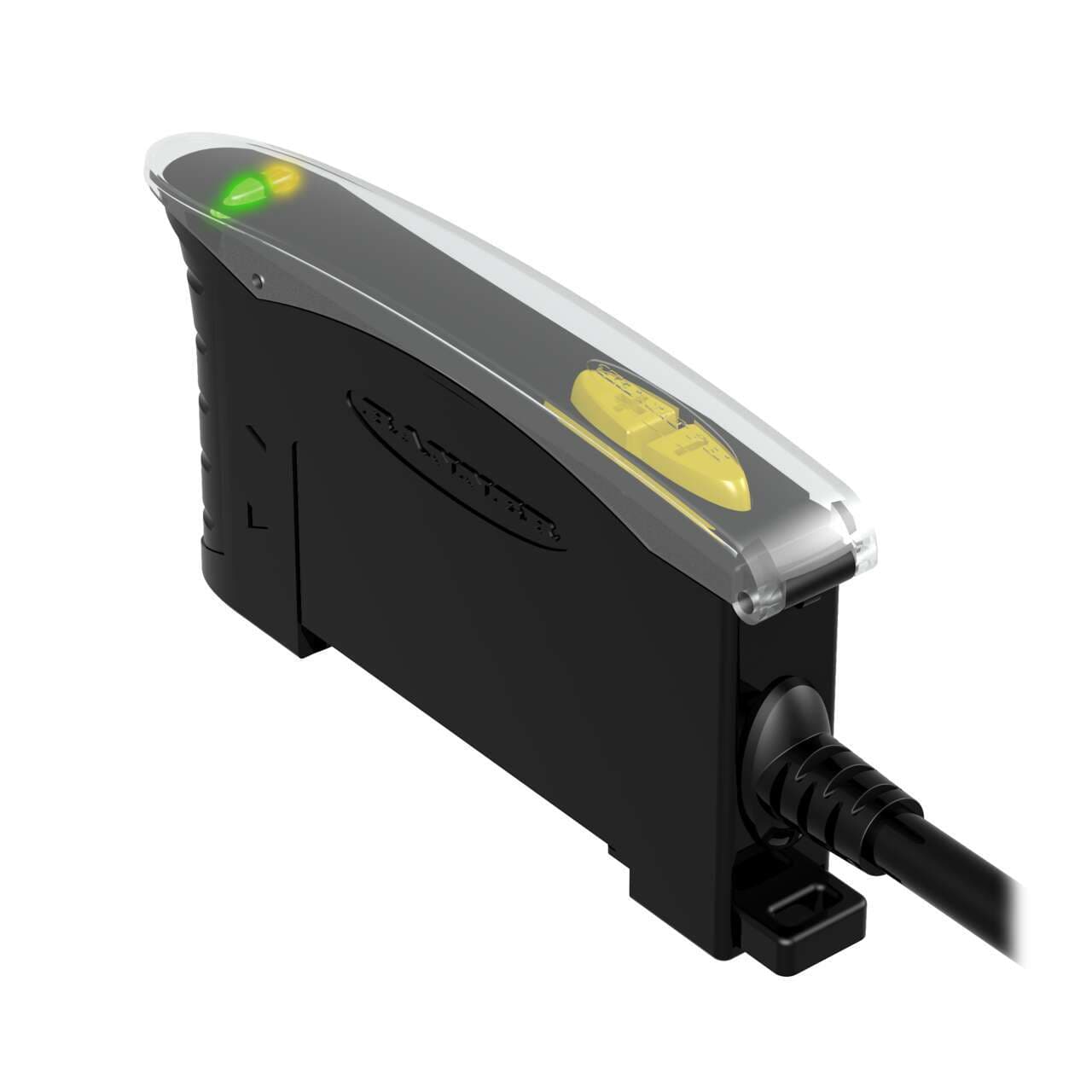

D10DPFP Banner Sensor Accessories
Part#:D10DPFP
Alt. Part#:62382
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
D10 Expert: Red Beam Plastic Fiber; Range: Depends on Fiber; Input: 12-24 V dc; Output: 2 PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 127.00576 g
- Country Of Origin CN
- Housing Material Thermoplastic
- Feature: Timing (Hold/Delay) Yes
- IO Link No
- Feature: Audible No
- Feature: Hazardous Area No
- Special Feature: Bussable Power No
- Indicator Display Type Single Digital Display
- Minimum response time (ms) .05
- Delay at Power-up (ms) 1000
- Power Supply/Supply Voltage 12-24 V dc
- Adjustments Teach Button
- Special Feature: Remote Teach Yes
- Intrinsically Safe No
- Crosstalk Avoidance Yes
- Max Op. Relative Humidity (%) 90% @ 50°C
- Min Op. Temperature (°C) -10
- Max Op. Temperature (°C) 55
- NEMA Rating NEMA 1
- Output Type (Specific) Dual Discrete
- Repeatability (µs) 25 to 100
- Quick Disconnect Type No QD
- IP Rating IP50
- Number of Pins 6
- Color LED - Amplifiers Red
- Fiber Type Plastic and Glass
- Connection Cable
- Output PNP
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Housing Style DIN Rail
- Power DC
- Cable Length (m) 2
- Main function Amplifier for sensor
- Shape Rectangular
- Ambient air temperature for operation -10...+55 °C
- Contents mounting bracket M3 hardware
- Wavelength 680 nm
- Digital outputs 2 x digital outputs (PNP transistors)
- Compliant with standard(s) cURus CE
- Primary brand Banner Engineering
- Display LED 4 digits display
- Supply voltage (DC) 12Vdc-24Vdc
- Material thermoplastic housing Polycarbonate cover
- Technical compatibility with plastic fiber optic cable
- Net Width (mm) 10.5 mm
- Sub-range name D10 Expert series
- Functions High-performance fiber optic sensor amplifier green LED (power ON) yellow LED (output state) TEACH mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP50 NEMA 1
- Net Height (mm) 68.1 mm
- Product series / family name Fiber optic amplifiers
- Light Color Visible red
- Mounting mode DIN rail mounting
- Order code / Manufacturer SKU 62382
- Net Depth (mm) 35.9 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of D10DPFP on Powermatic Associates is $302.00. Order now.
About the product
Banner Engineering D10DPFP is an amplifier for sensors, designed for DIN rail mounting. It features a net width of 11 mm and is constructed with a thermoplastic housing and a polycarbonate (PC) cover. This part operates within an ambient air temperature range of -10 to +55 °C and offers a degree of protection rated at IP50 NEMA 1. It emits a visible red light with a wavelength of 680 nm and has a rapid response time of 50µs / 0.00005 s. The D10DPFP includes 2 x digital outputs (PNP transistor) and is characterized by its rectangular shape. It is part of the D10 Expert series and incorporates high-performance fiber optic sensor amplifier functions with a TEACH mode red beam designed for plastic fiber. The connection is facilitated by a pre-wired 6.5ft / 2m cable terminated with bare end flying leads, and it requires a supply voltage of 12Vdc-24Vdc. The net dimensions are 11 mm in width, 36 mm in depth, and 69 mm in height.
