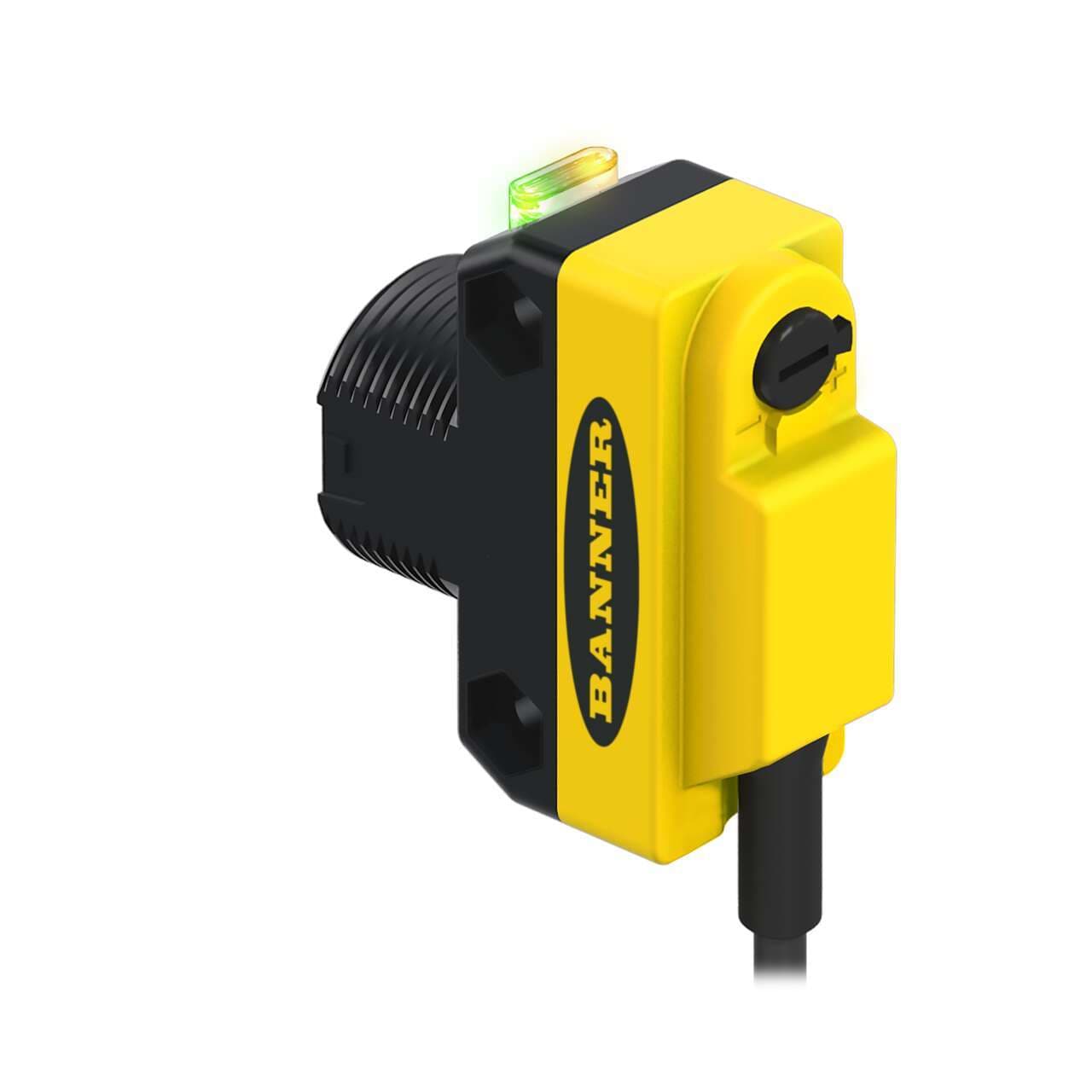

QS18VN6LLP W/30 Banner Proximity Sensors
Part#:QS18VN6LLP W/30
Alt. Part#:73236
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Polarized Retro; Range: 10 m; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 9 m (30 ft) Cable
Product Details
- Weight 203.209216 g
- Country Of Origin US
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Polarized
- Input/Output Discrete
- Max Sensing Distance (mm) 10000
- Housing Style Rectangular w/M18 Mount
- Indicator LEDs
- IO Link No
- Cable Length (m) 9
- Min Op. Temp. (°C) -10
- Primary Housing Material ABS
- Max Op. Temp. (°C) 50
- IP Rating IP67
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Output response time (ms) 0.7
- Sensing Beam Wavelength 650
- Number of Pins 4
- Adjustments Potentiometer
- Small Visible Spot Laser
- Feature: Quick Disconnect No
- DeviceNet No
- Sensing Beam Visible Red Laser
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Repeatability (µs) 130
- Quick Disconnect Type No QD
- Operation Light/Dark Operate
- Delay at Power-up (ms) 200
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Retroreflective
- Feature: Hazardous Area No
- Laser Classification Class 1
- NEMA Rating NEMA 6
- Outputs NPN
- Feature: Encapsulated No
- Power DC
- Connection Cable
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6LLP W/30 on Powermatic Associates is $228.00. Order now.
About the product
Banner Engineering QS18VN6LLP W/30 is a miniature polarized Class 1 laser photo-electric sensor designed for retro-reflective mode operation with potentiometer adjustment. It features an M18 threaded mount and is pre-wired with a 30ft / 9m cable terminated with bare end flying leads. This sensor operates within an ambient air temperature range of -10 to +50 °C and is housed in a thermoplastic casing with an acrylic lens. It belongs to the QS18LLP series and offers a sensing distance of 10cm to 10m. The light color is visible red, with a wavelength of 650 nm, and it supports Light-ON and Dark-ON operating modes. It has a degree of protection rated at IP67 NEMA 6, making it suitable for various environments. The supply voltage required is between 10Vdc and 30Vdc, with 12Vdc and 24Vdc as nominal values. It features 1 x digital output (NPN transistor; complementary NO/NC) and boasts a quick response time of 0.7ms / 0.0007 s.
