DEE2R-813D Banner Cordsets
Product Details
- Weight 340.194 g
- Country Of Origin TW
- Trunk Length (m) No Trunk
- Primary Gender Female
- Primary AWG 22
- Cordset Length (m) 3.96
- Primary Connector Type EURO
- Secondary Coupling Method M12 Single Key
- Maximum Temp. (°C) 105
- Connector Body Material/Color PUR Black
- Secondary Number of Conductors 8
- Cable Jacket Material PVC
- Current Rating (A) 2.0
- Secondary Gender Male
- Cable Jacket Color Yellow
- Primary Coupling Method M12 Single Key
- Primary Orientation Straight
- Coupling Material/Color Nickel Plated Brass
- Secondary Orientation Straight
- Number of Contacts 8
- Voltage Rating (V) 60 V ac/75 V dc
- Secondary Connector Type EURO
- Feature: Hazardous Area No
- Number of Connectors 2
- Minimum Temp. (°C) -40
- Primary Number of Conductors 8
- Shield/No Shield No Shield
- Secondary AWG 22
- Outside Cable Diameter (mm) 6
- IP Rating IP68
- Oil/Grease Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DEE2R-813D on Powermatic Associates is $52.00. Order now.
About the product

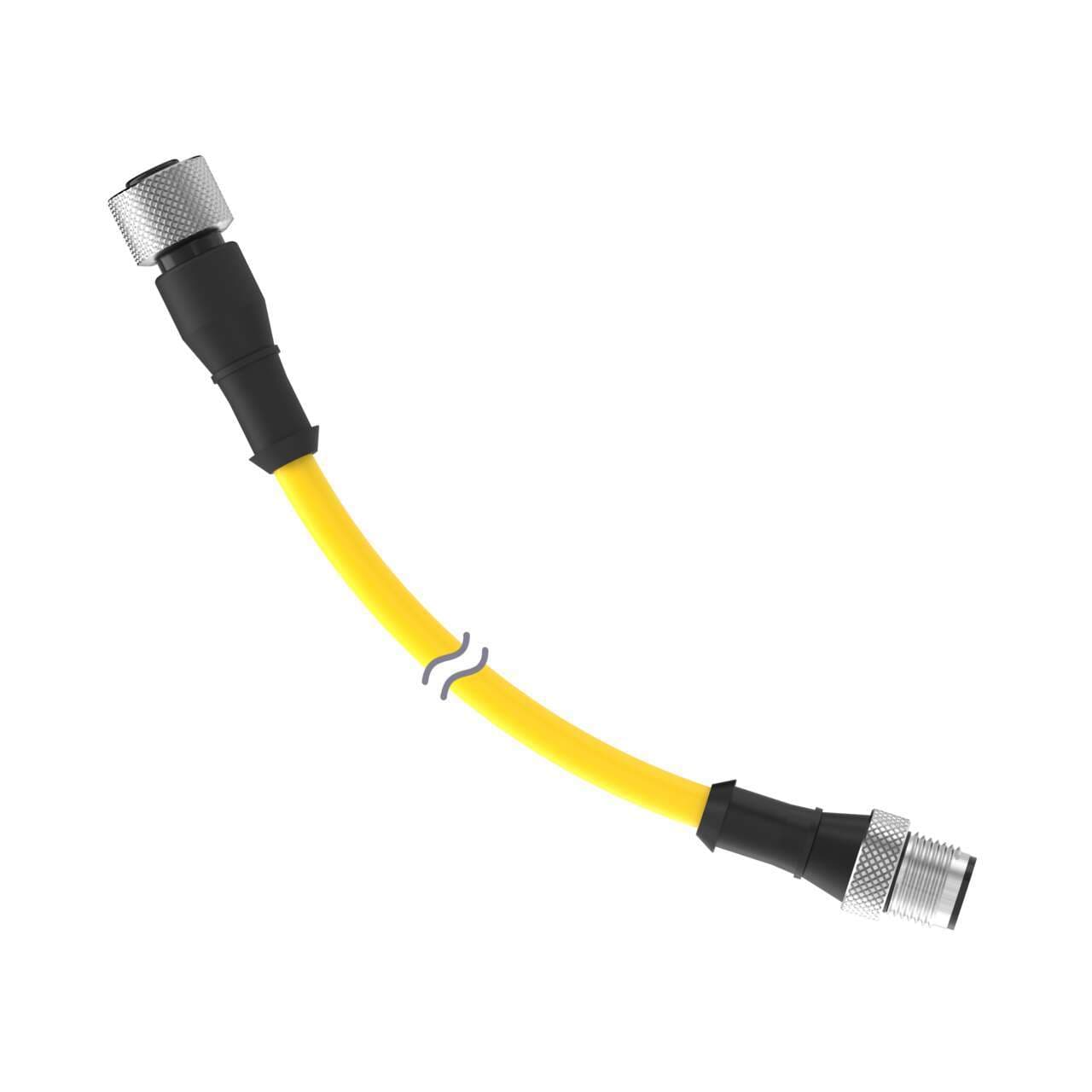

Banner Engineering DEE2R-813D is a pre-assembled, double-ended cable featuring an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. The cable is constructed with a chrome-plated brass coupling nut and PVC sheathing in yellow, designed for durability and visibility. It has a diameter of 6mm and a length of 13ft (3.96m). This cordset is rated for use in ambient air temperatures ranging from -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for demanding environments. The DEE2R-813D operates at a rated voltage of 60Vac and 75Vdc, ensuring compatibility with a variety of electrical systems.
Similar products from: Banner Cordsets
Manufacturer warranty
DEE2R-813D Banner
$52.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$52.00
$52.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare DEE2R-813D with other Cordsets products
Weight
Country Of Origin
Trunk Length (m)
Primary Gender
Primary AWG
Cordset Length (m)
Primary Connector Type
Secondary Coupling Method
Maximum Temp. (°C)
Connector Body Material/C...
Selected product
DEE2R-813D
Banner
Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 3.96 m 8x22 Yellow PVC Jacket...
Weight340.194 g
Country Of OriginTW
Trunk Length (m)No Trunk
Primary GenderFemale
Primary AWG22
Cordset Length (m)3.96
Primary Connector TypeEURO
Secondary Coupling MethodM12 Single Key
Maximum Temp. (°C)105
Connector Body Material/ColorPUR Black
QDE-860D
Banner
Cordset: Single Ended M12; 8-pin Straight Female; 18.29 m 8x22 Yellow PVC Jacket; Nickel-Plated Bras...
Weight1088.6208 g
Country Of OriginTW
Trunk Length (m)No Trunk
Primary Gender-
Primary AWG-
Cordset Length (m)18.3
Primary Connector Type-
Secondary Coupling Method-
Maximum Temp. (°C)-
Connector Body Material/ColorPUR Black
RDLP-815D
Banner
Cordset: Single Ended LP-Custom; 8-pin Straight Male; 4.6 m 8x22 Yellow PVC Jacket; TPU Black
Weight288.3937936 g
Country Of OriginTW
Trunk Length (m)No Trunk
Primary Gender-
Primary AWG-
Cordset Length (m)4.57
Primary Connector Type-
Secondary Coupling Method-
Maximum Temp. (°C)-
Connector Body Material/ColorPUR Black
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of DEE2R-813D?
Purchase the DEE2R-813D from Powermatic Associates at the price of $52.00. Order today.
Out if stock but available for backorder.
Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 3.96 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts
