DEE2R-81D Banner Cordsets

Name: DEE2R-81D
Brand: Banner
Price: 37 USD
Availability: BackOrder

Part#:DEE2R-81D

Alt. Part#:72205

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

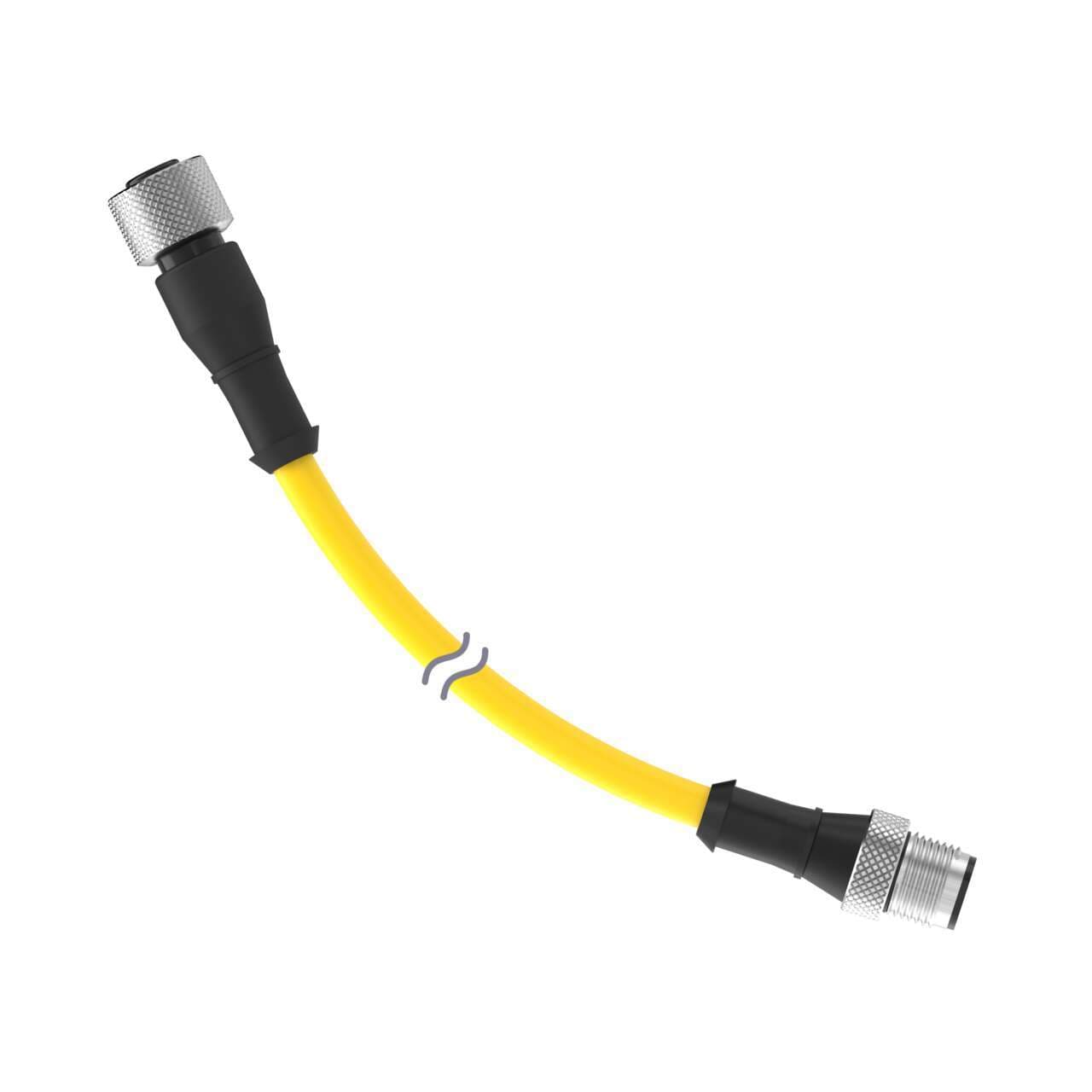

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 0.3 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

Product Details

Weight
36.28736 g
Country Of Origin
TW
Oil/Grease Resistant
No
Secondary AWG
22
Feature: Hazardous Area
No
Secondary Number of Conductors
8
Secondary Gender
Male
Secondary Coupling Method
M12 Single Key
Primary AWG
22
Secondary Connector Type
EURO
Secondary Orientation
Straight
Primary Number of Conductors
8
Primary Gender
Female
Primary Connector Type
EURO
Primary Coupling Method
M12 Single Key
Primary Orientation
Straight
Current Rating (A)
2.0
IP Rating
IP68
Voltage Rating (V)
60 V ac/75 V dc
Minimum Temp. (°C)
-40

Coupling Material/Color

Nickel Plated Brass

Maximum Temp. (°C)

105

Outside Cable Diameter (mm)

Shield/No Shield

No Shield

Cable Jacket Color

Yellow

Connector Body Material/Color

PUR Black

Cable Jacket Material

PVC

Number of Contacts

Number of Connectors

Trunk Length (m)

No Trunk

Cordset Length (m)

0.31

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DEE2R-81D on Powermatic Associates is $37.00. Order now.

About the product

Banner Engineering DEE2R-81D is a pre-assembled, double-ended cable or cordset designed for various automation applications. It features an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. The cable is made from PVC material and has a yellow sheathing, with a diameter of 6mm and a length of 1ft or 300mm. It is rated for a voltage of 60Vac and 75Vdc. The DEE2R-81D operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, indicating a high level of protection against dust and water ingress.
