DEE2R-85D Banner Cordsets

Name: DEE2R-85D
Brand: Banner
Price: 78 USD
Availability: BackOrder

Part#:DEE2R-85D

Alt. Part#:56506

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

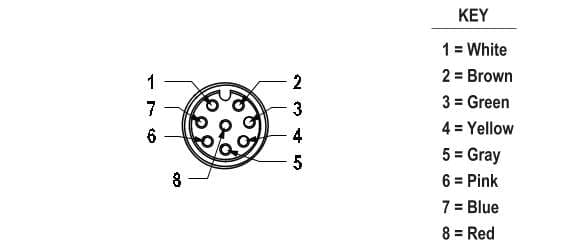

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male; 1.52 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nuts

Product Details

Weight
181.4368 g
Country Of Origin
TW
Outside Cable Diameter (mm)
6
Number of Connectors
2
Connector Body Material/Color
PUR Black
Trunk Length (m)
No Trunk
Cordset Length (m)
1.52
Primary Orientation
Straight
Cable Jacket Color
Yellow
Current Rating (A)
2.0
Primary Connector Type
EURO
Voltage Rating (V)
60 V ac/75 V dc
Primary Coupling Method
M12 Single Key
Secondary Gender
Male
Primary AWG
22
Secondary Orientation
Straight
Secondary AWG
22
Cable Jacket Material
PVC
Coupling Material/Color
Nickel Plated Brass
Minimum Temp. (°C)
-40

Maximum Temp. (°C)

105

Primary Gender

Female

IP Rating

IP68

Primary Number of Conductors

Secondary Coupling Method

M12 Single Key

Secondary Connector Type

EURO

Feature: Hazardous Area

Oil/Grease Resistant

Shield/No Shield

No Shield

Number of Contacts

Secondary Number of Conductors

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DEE2R-85D on Powermatic Associates is $78.00. Order now.

About the product

Banner Engineering DEE2R-85D is a pre-assembled, double-ended cascadable cable designed for various automation applications. It features chrome-plated brass coupling nuts and a PVC cable with yellow sheathing. The cable has an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. It is designed to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68. The cable has a diameter of 6mm and a length of 5ft (1.52m). It is rated for a voltage of 60Vac and 75Vdc.
