Part#:DEE8-425D

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

Banner Engineering DEE8-425D is a pre-assembled, double-ended cable designed for various automation applications. It features an 8-pin Euro-style M12 female connector on one end and a 4-pin Euro-style M12 male connector on the other. The cable is made from PVC material and is encased in yellow sheathing. It has a diameter of 6mm and a length of 7.62m. This cable operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68. It is rated for a voltage of 60Vac and 75Vdc.

Product Details

  • Feature: Hazardous Area
    No
  • Oil/Grease Resistant
    No
  • Secondary AWG
    22
  • Secondary Number of Conductors
    4
  • Secondary Orientation
    Straight
  • Secondary Gender
    Male
  • Secondary Coupling Method
    M12 Single Key
  • Secondary Connector Type
    EURO
  • Primary AWG
    22
  • Primary Number of Conductors
    8
  • Primary Orientation
    Straight
  • Primary Coupling Method
    M12 Single Key
  • Voltage Rating (V)
    60 V ac/75 V dc
  • Primary Connector Type
    EURO
  • Primary Gender
    Female
  • IP Rating
    IP68
  • Minimum Temp. (°C)
    -40
  • Current Rating (A)
    2.0
  • Coupling Material/Color
    Nickel Plated Brass
  • Maximum Temp. (°C)
    105
  • Cable Jacket Material
    PVC
  • Number of Connectors
    2
  • Trunk Length (m)
    No Trunk
  • Number of Contacts
    8
  • Shield/No Shield
    No Shield
  • Cordset Length (m)
    7.62
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    6
  • Cable Jacket Color
    Yellow

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Similar products from: Banner Electronic Components

T18SP6R on Powermatic Associates

T18SP6R

Banner

Banner Engineering T18SP6R is a photo-electric sensor designed for through-beam system applications, part of the T18 series. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It features a pre-wired connection with a 6.5ft / 2m cable ending in bare end flying leads. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for threaded mount installation and can operate within an ambient air temperature range of -40 to +70°C. The T18SP6R offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance is up to 20m, utilizing infrared light with a wavelength of 950 nm. It has a quick response time of 3ms / 0.003 s and supports both Light-ON and Dark-ON operating modes.

4 in stock
WLAW360X180DQ on Powermatic Associates

WLAW360X180DQ

Banner

Banner Engineering WLAW360X180DQ is an industrial LED area light designed with a diffused window for 1-color Cool White (W) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this task light are L180mm x W360mm, featuring an acrylic diffused window and PBT housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The rectangular-shaped light offers a degree of protection rated at IP67 and IP69K, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -20°C to +50°C and includes 1 x digital input (12Vdc / 24Vdc) for color control.

4 in stock
T18SN6R W/30 on Powermatic Associates

T18SN6R W/30

Banner

Banner Engineering T18SN6R W/30 is a photo-electric sensor designed as part of the T18 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for threaded mount installation and can operate within an ambient air temperature range of -40 to +70°C. This model boasts an IP67, IP69K, and NEMA 6P degree of protection, ensuring durability in various environmental conditions. The T18SN6R W/30 has a cylindrical M18 threaded/barrel shape, includes 1 x digital output (NPN transistor), and offers a sensing distance of up to 20m. It utilizes infrared light with a wavelength of 950 nm and has a response time of 3ms. The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.

1 in stock

Manufacturer warranty

DEE8-425D Banner

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare DEE8-425D with other Electronic Components products

Feature: Hazardous Area

Oil/Grease Resistant

Secondary AWG

Secondary Number of Condu...

Secondary Orientation

Secondary Gender

Secondary Coupling Method

Secondary Connector Type

Primary AWG

Primary Number of Conduct...

Selected product

DEE8-425D
Backordered
DEE8-425D
Banner

Banner Engineering DEE8-425D is a pre-assembled, double-ended cable designed for various automation ...

Feature: Hazardous AreaNo

Oil/Grease ResistantNo

Secondary AWG22

Secondary Number of Conductors4

Secondary OrientationStraight

Secondary GenderMale

Secondary Coupling MethodM12 Single Key

Secondary Connector TypeEURO

Primary AWG22

Primary Number of Conductors8

MDE45M-8MSP-RJ45S-4M-GN
4 in stock
MDE45M-8MSP-RJ45S-4M-GN
Mencom

Ethernet, Cordset, Shielded to Both Ends, 8 Pole, M12 Male Straight / RJ45 Plug, 4M, Green, PVC

Feature: Hazardous Area-

Oil/Grease Resistant-

Secondary AWG-

Secondary Number of Conductors-

Secondary Orientation-

Secondary Gender-

Secondary Coupling Method-

Secondary Connector Type-

Primary AWG-

Primary Number of Conductors-

PV12-10HDR-D
7 in stock

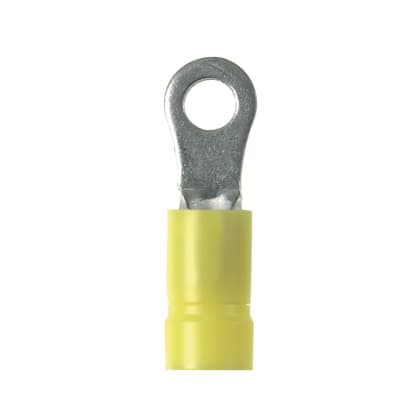

PV12-10HDR-D
