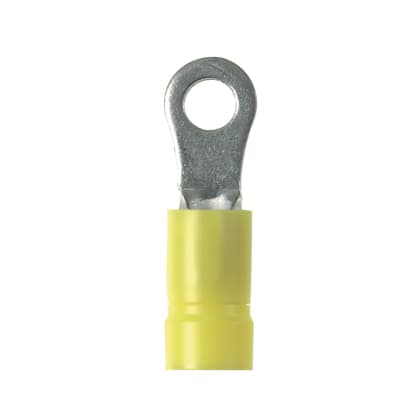

PV12-10HDR-D Panduit Electronic Components

Product Details

• Stud Hole Size (In.)
  1/5
• Maximum Metric Conductor Size (mm²)
  6
• Barrel Length (In.)
  0.54
• Maximum Wire Insulation Diameter (mm)
  5.8
• Tongue Length (mm)
  13.7
• Stud Hole Size (mm)
  5.1
• Minimum Copper Conductor Size (AWG)
  #16
• Color Code
  Yellow
• Maximum Wire Insulation Diameter (In.)
  0.23
• Tongue Width (In.)
  0.37
• Insulation Material
  Vinyl
• Minimum Wire Size (AWG)
  #16
• Base Material
  Copper
• Maximum Operating Temperature (°F)
  221
• Maximum Copper Conductor Size (AWG STR)
  #12
• Minimum Copper Conductor Size (AWG SOL)
  NA
• Wire Strip Length (mm)
  7.1
• CSA Temperature Rating (°C)
  105
• Overall Width (mm)
  9.4
• Part Features
  • Manufactured from stock 56% thicker than a standard #16 – 14 AWG terminal for use in heavy-duty applications • Insulation housing is marked with “HDR” to signify heavy-duty ring • Ring tongue design assures a secure connection in high vibration appli
Stud Size
#10
Wire Strip Length (In.)
0.28
Barrel Length (mm)
13.7
Overall Length (In.)
1.08
Tongue Width (mm)
9.4
Maximum Wire Size (AWG)
#12
Maximum Voltage (V)
600
Insulation Diameter (mm)
5.8
Seam Type
Brazed
Maximum Copper Conductor Size (AWG SOL)
NA
Minimum Metric Conductor Size (mm²)
2
Maximum Voltage (kV)
0.6
Insulation Diameter (In.)
0.23
Overall Length (mm)
27.4
Maximum Copper Conductor Size (AWG)
#12
Standards Met
CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
Flammability Rating
UL 94 V-0
Sub Brand
Pan-Term
Product Type
Loose Piece Ring Terminal
Minimum Copper Conductor Size (AWG STR)
#16
Finish/Coating
Tin-Plated
Maximum Operating Temperature (°C)
105
Overall Width (In.)
0.37
For Use With
CT-600A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-460
Tongue Length (In.)
0.54
Packaging Type
Box
