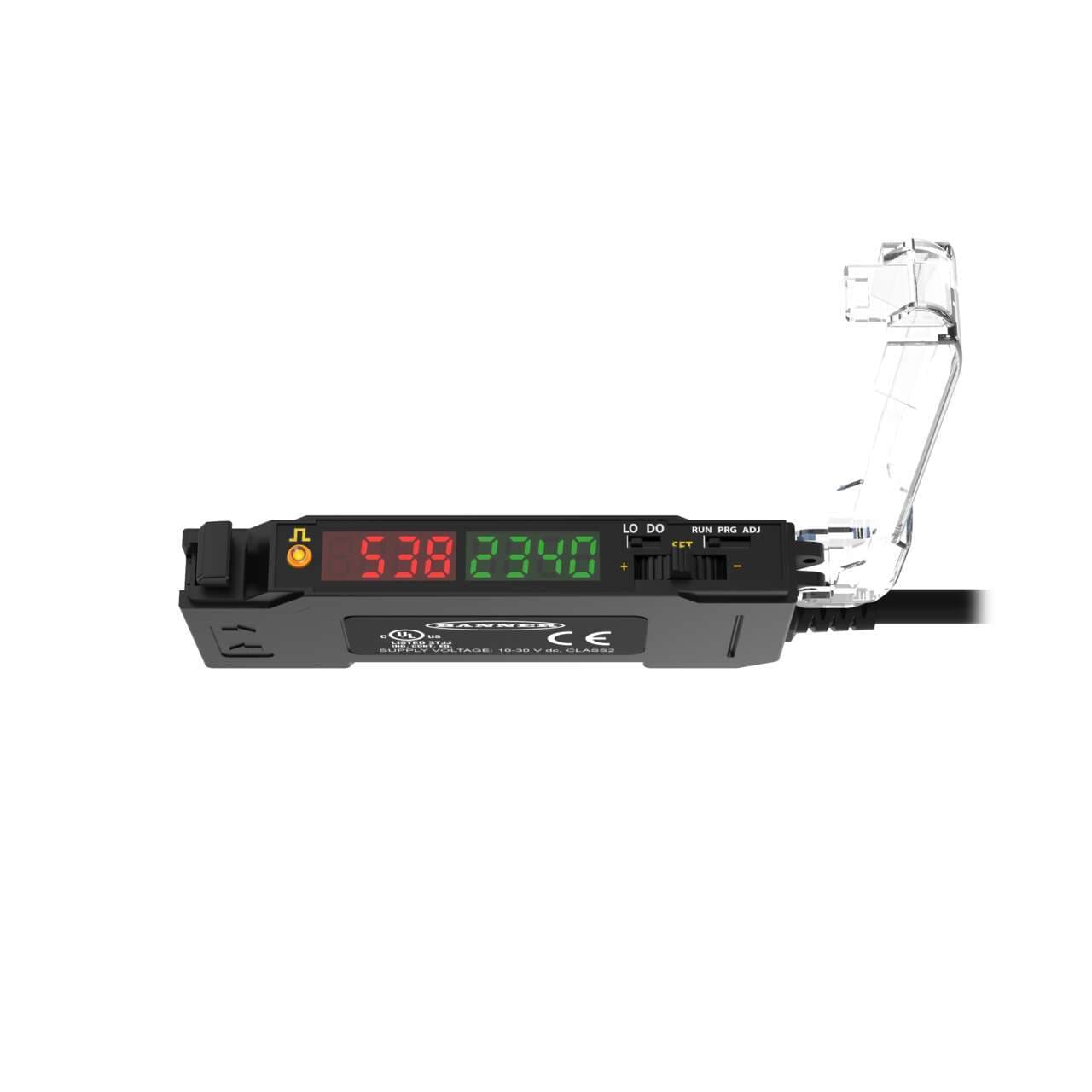

DF-G2-PS-9M Banner Sensor Accessories
Part#:DF-G2-PS-9M
Alt. Part#:87557
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
DF-G2 Red Beam High Speed Dual Display Fiber Amplifier; Range: Depends on Fiber; Input 10-30 V dc; Outputs: 1 PNP; 9 m 4-conductor PVC Cable
Product Details
- Weight 317.5144 g
- Country Of Origin CN
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Mounting mode DIN rail mounting
- Order code / Manufacturer SKU 87557
- Degree of protection IP50 NEMA 1
- Wavelength 635 nm
- Light Color Visible red
- Shape Rectangular
- Material thermoplastic housing
- Product series / family name Fiber optic amplifiers
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Display LED 4 digits x 2 (red + green)
- Functions High-speed dual-display fiber optic sensor amplifier yellow LED (output status) red LED (signal) TEACH mode
- Compliant with standard(s) cULus CE
- Sub-range name DF-G2 Expert series
- Main function Amplifier for sensor
- Ambient air temperature for operation -10...+55 °C
- Connection type Pre-wired with 9m cable terminated with bare end flying leads
- Equivalent to DFG2PS9M
- Power DC
- Max Op. Temperature (°C) 55
- Indicator Display Type Dual Digital Displays
- Housing Style DIN Rail
- Color LED - Amplifiers Red
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Audible No
- Connection Cable
- Number of Pins 4
- Intrinsically Safe No
- Application: Registration Mark Yes
- Input/Output Discrete
- Min Op. Temperature (°C) -10
- Minimum response time (ms) .01
- Quick Disconnect Type No QD
- IP Rating IP50
- Adjustments Teach Button
- Housing Material Thermoplastic
- Output PNP
- Output Type (Specific) Single Discrete
- Special Feature: Remote Teach Yes
- Special Feature: Bussable Power No
- Primary Housing Material Thermoplastic
- Repeatability (µs) 5 to 165
- Crosstalk Avoidance Yes
- Feature: Timing (Hold/Delay) Yes
- Cable Length (m) 9
- NEMA Rating NEMA 1
- Delay at Power-up (ms) 500
- IO Link No
- Fiber Type Plastic and Glass
- Max Op. Relative Humidity (%) 90% @ 60°C
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DF-G2-PS-9M on Powermatic Associates is $267.00. Order now.
About the product
Banner Engineering DF-G2-PS-9M is an amplifier for sensors, designed for DIN rail mounting with a thermoplastic housing. It operates within an ambient air temperature range of -10 to +55°C and offers a degree of protection rated at IP50 NEMA 1. This part features a visible red light with a wavelength of 635 nm and a rapid response time of 10µs (0.00001 s). It includes 1 x digital output (PNP transistor) and is characterized by its rectangular shape. The DF-G2-PS-9M, part of the DF-G2 Expert series, incorporates high-speed dual-display fiber optic sensor amplifier functions and is designed with TEACH mode for ease of use. It comes pre-wired with a 9m cable terminated with bare end flying leads, supporting a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.).
