DX80N9X2S-P1C Banner I/O Modules

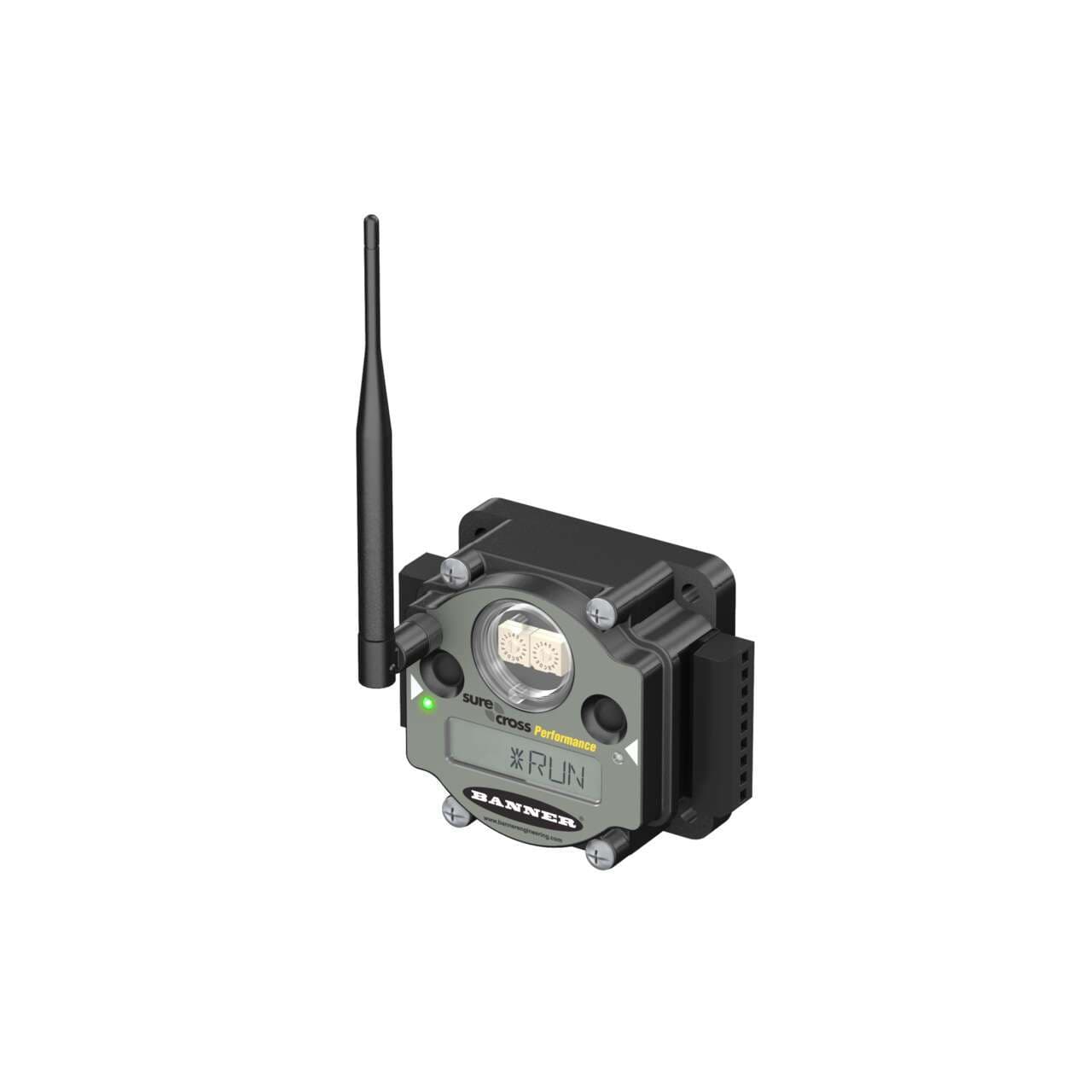

Banner Engineering DX80N9X2S-P1C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. Its dimensions are H44.5mm x W103.3mm x D80.1mm. The RTU includes 2 digital outputs (30Vdc; NMOS Sinking; 1A), 2 analog inputs (0-20mA / 0-10Vdc / Thermistor 10kΩ; 12-bit), and 2 digital inputs (30Vdc 3mA; PNP/NPN), accommodating a variety of signal types. It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication, with a transmission frequency of 900 MHz. The design incorporates 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector for connectivity. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates within the 900MHz ISM band at 1W, capable of a maximum transmission distance of 9.6km at nominal emission power.
