DX80N9X2S-P5C Banner I/O Modules
Part#:DX80N9X2S-P5C
Alt. Part#:18802
Manufacturer:Banner
Category:I/O Modules
Product Lifecycle:Active
Product description
DX80 Performance 900 mHz Node 1 W IP20; FlexPower External Antenna; Input: 2 Discrete NPN 4 Analog; Output: 2 Discrete NMOS; External Terminals
Product Details
- Weight 430.9124 g
- Country Of Origin US
- Housing Style External Terminals
- Environmental Rating (IP) IP20
- Max Operating Temperature ( °C) 80
- Output Details 2 NMOS Discrete
- Star Topology Yes
- Modbus/TCP No
- Discrete Outputs Yes
- Max Temp Operating Conditions 80
- Relative Humidity 95%
- Feature: Hazardous Area Yes
- Analog Inputs Yes
- Min Temp Operating Conditions -20
- RS-232 No
- Environmental Rating (NEMA) NEMA 1
- Wireless Yes
- Power Flex Power
- Power Supply 10-30 V dc or 3.6-5.5 V dc low power option
- Point-to-Point Topology Yes
- Modbus RTU No
- Discrete Inputs Yes
- Min Operating Temperature ( °C) -20
- RS-485 No
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Point-to-Multipoint Topology Yes
- EtherNet/IP No
- Input/Output Analog & Discrete
- LCD Display Yes
- Tree Topology No
- PROFINET No
- Device Type Node
- Input Details 2 NPN Discrete, 4 Selectable Analog
- Ships With Battery No
- Wireless Radio Frequency 900 MHz
- 1-wire Serial Interface No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DX80N9X2S-P5C on Powermatic Associates is $699.00. Order now.
About the product

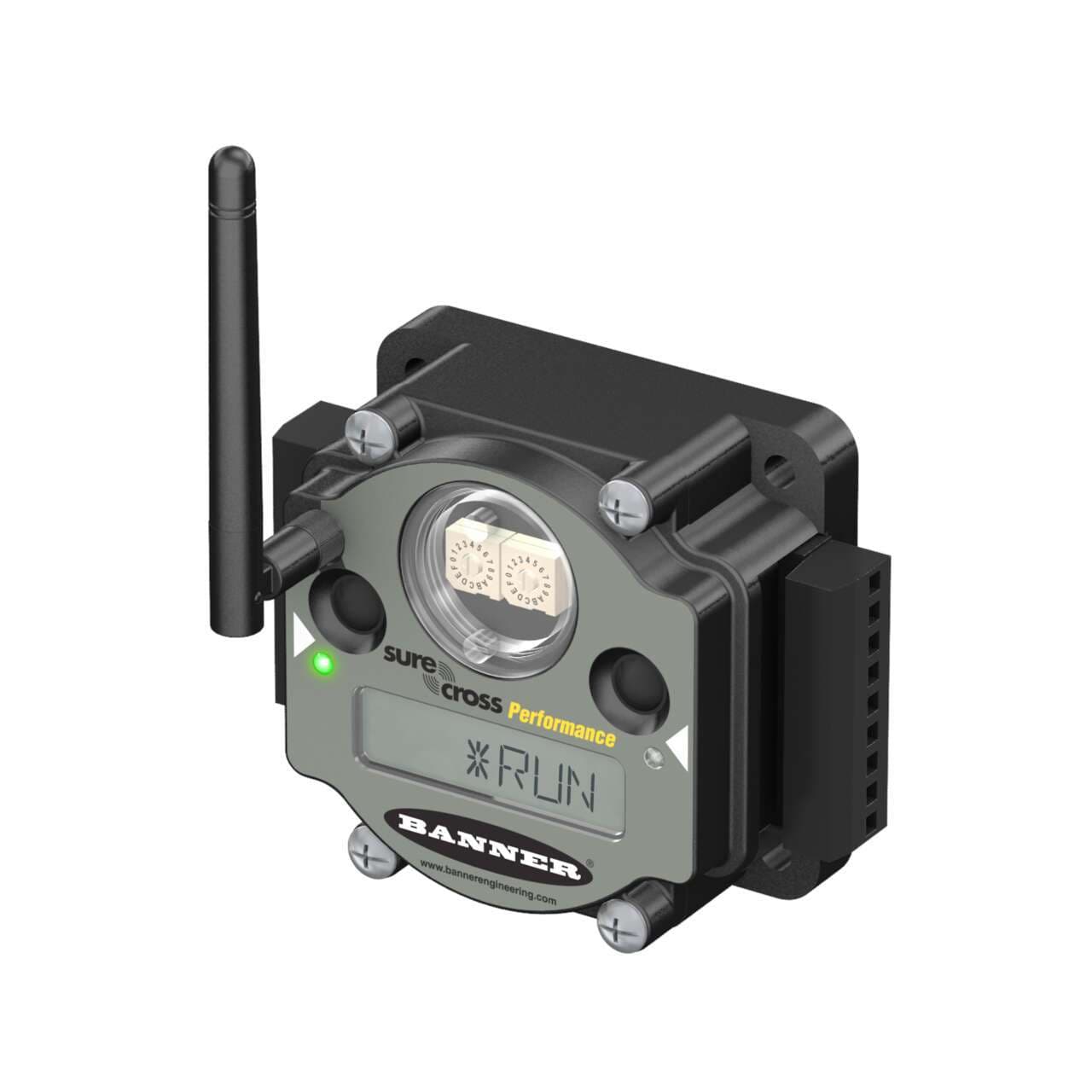

Banner Engineering DX80N9X2S-P5C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. Its dimensions are H44.5mm x W103.3mm x D80.1mm. The RTU includes 2 digital outputs (30Vdc; NMOS; 1A), 4 analog inputs (0-20mA / 0-10Vdc; 12-bit), and 2 digital inputs (30Vdc 3mA; NPN). It utilizes FHSS (Frequency Hopping Spread Spectrum) technology and Time Division Multiple Access (TDMA) for reliable communication, with a transmission frequency of 900 MHz. The design incorporates 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on the 900MHz ISM band with 1W power, capable of a maximum transmission distance of 9.6km at nominal emission power.
