IR13ST5AL7.6 Banner Fiber Optic Sensors

IR13ST5AL7.6 on Powermatic Associates
Banner
  • IR13ST5AL7.6
  • IR13ST5AL7.6

Part#:IR13ST5AL7.6

Alt. Part#:802477

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

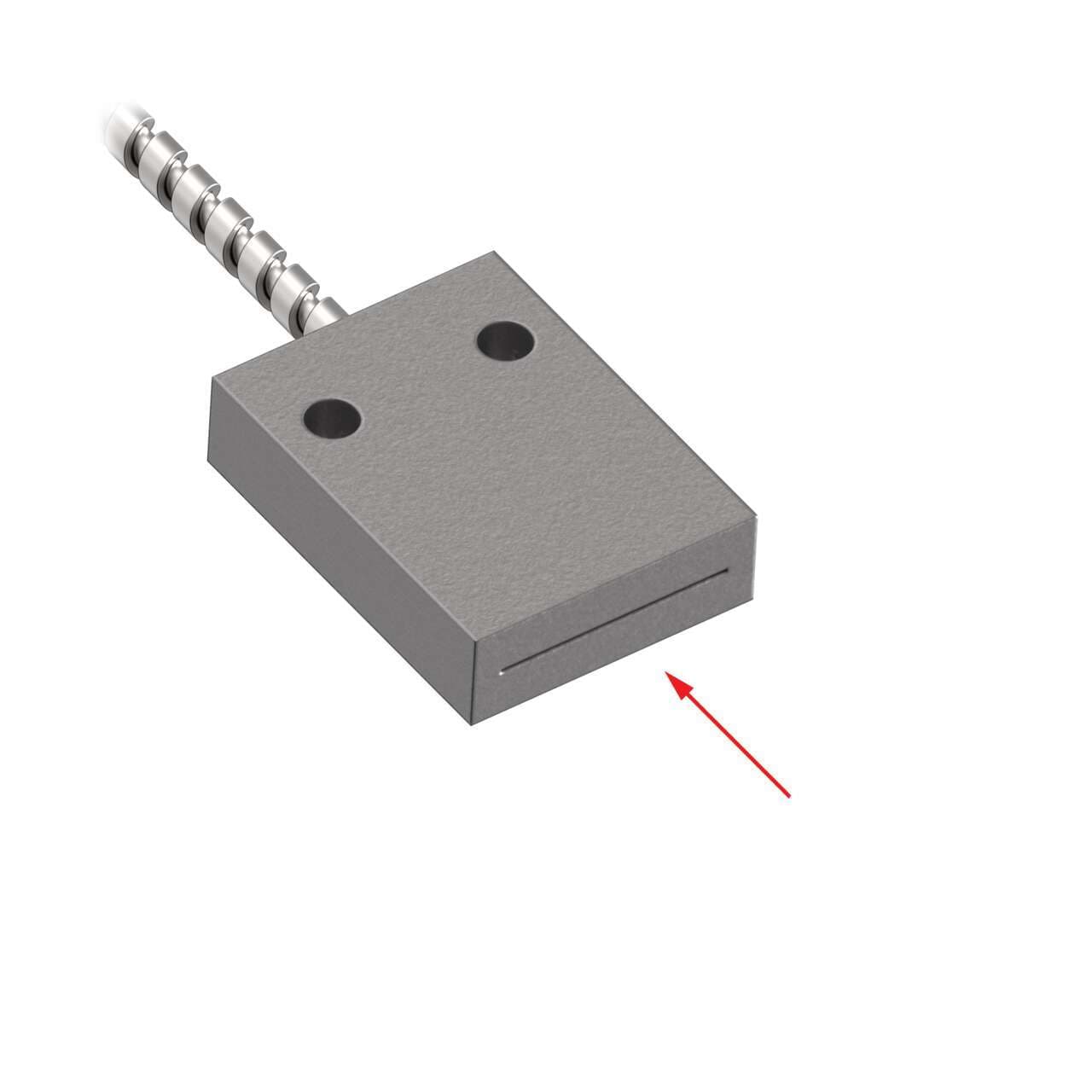

Glass Fiber Opposed Mode; 1 m long; Stainless Steel Sheath; Rectangle Sensing Tip; 0.25 mm x 7.62 mm array; Max. Operating Temperature at Sensing Tip, 315C; Terminated for use in Plastic Fiber Sensors

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    US
  • Housing Style
    Rectangular
  • Array Length (mm)
    7.6
  • Application: Vacuum Feed Through
    None
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Retractile
    No
  • Fiber Sensing End Size
    19.1 x 25.4 mm
  • Beam Exit
    In-line
  • Fiber Sensing End Tip
    Array
  • Integrated Lens
    No
  • Fiber Sensing End Size - Mounting Area
    19.1 x 25.4 mm
  • Sensing Mode (General)
    Opposed
  • Max Temp ( °C)
    315
  • Tariff Fiber Meters (fbm)
    829
  • Sensing Mode (Detailed)
    Array
  • Quantity Included
    1
  • Minimum Bend Radius (mm)
    25
  • Max Distance: DF-G2 (mm)
    1165
  • Fiber Optic Type
    Glass
  • Flex Relief
    No
  • Application: Liquid Level
    No
  • Termination Type
    Plastic Fiber Sensors
  • Sensing End Segment 1
    Rectangle
  • Termination
    Terminated
  • Max Distance: DF-G1 (mm)
    719
  • Max Range: DF-G3 (mm)
    >5m
  • Sensing End Segment 2
    Array
  • Core Diameter (mm)
    1.6
  • Feature: Extended Range
    No
  • Sensing End Material (Specific)
    Aluminum
  • Fiber Length (m)
    1
  • Feature: Chemical Resistant
    No
  • Max Distance: DF-G3 (mm)
    5590
  • Feature: Small Object Detection
    Yes
  • Measured Max Distance (mm)
    719

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IR13ST5AL7.6 on Powermatic Associates is $329.00. Order now.

About the product

Banner Engineering IR13ST5AL7.6 is a fiber sensor belonging to the Glass fiber series, designed for through-beam system / opposed mode individual fiber in-line sensing. This sensor features a rectangular shape with an aluminium sensing end, glass fiber, and a stainless steel monocoil construction. It has a length of 3ft / 910mm and a fiber core diameter of 1.6mm. The IR13ST5AL7.6 is engineered to operate in ambient air temperatures up to +315°C.
