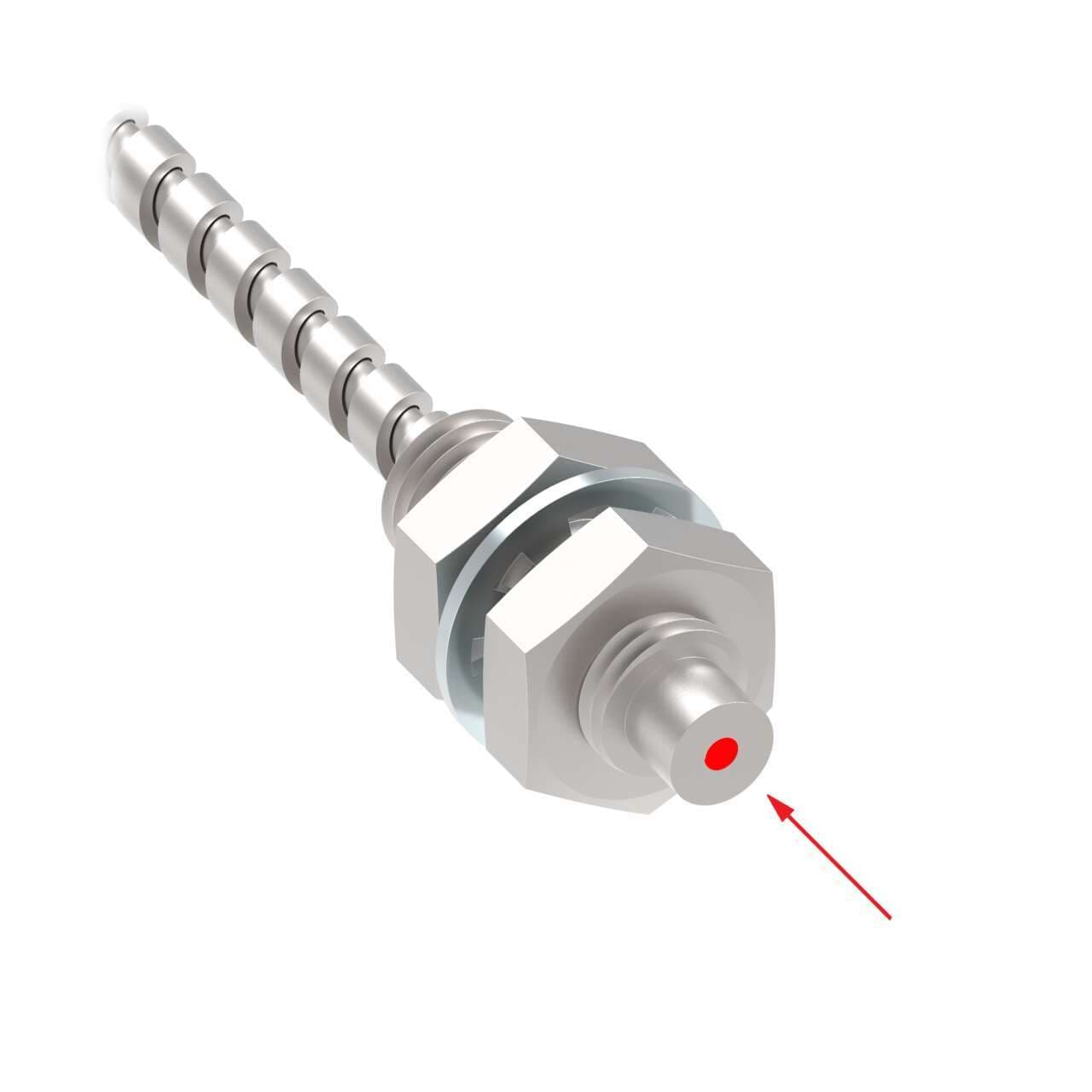

IT.86.6ST5M6 Banner Fiber Optic Sensors

Product Details

• Weight
  136.0776 g
• Country Of Origin
  US
• Primary brand
  Banner Engineering
• Sub-range name
  Glass fiber series
• Shape
  Cylindrical (threaded) end tip
• Thread size
  M6
• Product series / family name
  Fiber sensors
• Diameter
  0.75mm (end) 1.3mm fiber core
• Main function
  Fiber sensor
• Design
  through-beam system / opposed mode Individual fiber
• Length
  6.6ft / 2m
• Functions
  Fiber optic sensor
• Ambient air temperature for operation
  +249 °C
• Order code / Manufacturer SKU
  802387
• Material
  Stainless steel sensing end Glass fiber stainless flexible tubing (fiber sheath)
• Housing Style
  Round
• Fiber Sensing End Size
  M6
• Beam Exit
  In-line
• Retractile
  No
• Tariff Fiber Meters (fbm)
  1044
Termination
Terminated
Termination Type
Plastic Fiber Sensors
Quantity Included
1
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Fiber Length (m)
2
Integrated Lens
No
Max Distance: DF-G1 (mm)
No Data
Sensing End Material (Specific)
Stainless Steel
Flex Relief
No
Feature: Extended Range
No
Sensing Mode (General)
Opposed
Core Diameter (mm)
1.3
Feature: Small Object Detection
No
Fiber Optic Type
Glass
Fiber Sensing End Tip
Thread
Max Temp ( °C)
249
Application: Vacuum Feed Through
None
Sensing Mode (Detailed)
Reflective
Sensing End Segment 1
Thread
Application: Liquid Level
No
Minimum Bend Radius (mm)
25
Measured Max Distance (mm)
No Data
Feature: Chemical Resistant
No
Max Distance: DF-G3 (mm)
No Data
Max Distance: DF-G2 (mm)
No Data
Fiber Sensing End Size - Mounting Area
M6
