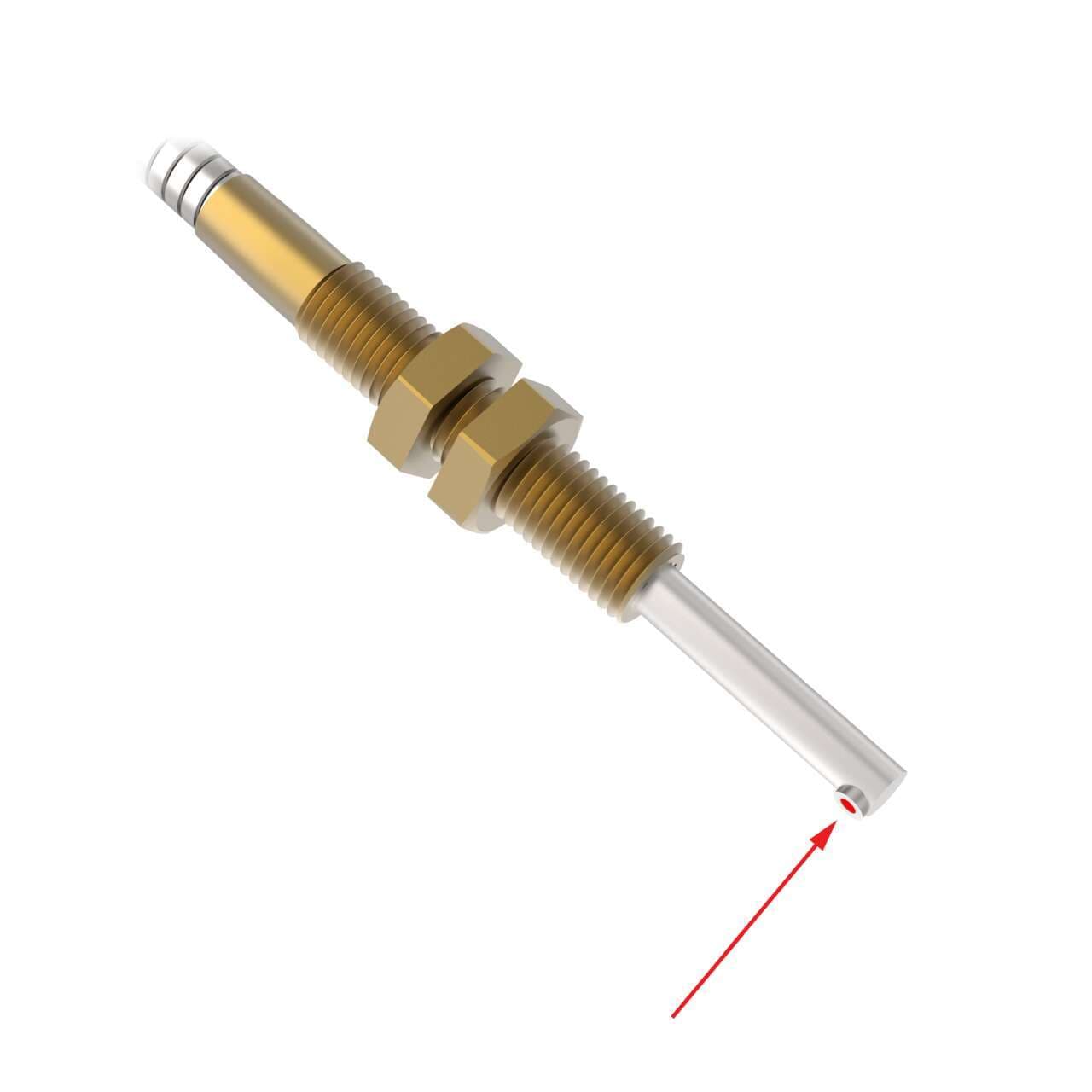

ITETA1.53S Banner Fiber Optic Sensors

Name: ITETA1.53S
Brand: Banner
Price: 173 USD
Availability: BackOrder

Part#:ITETA1.53S

Alt. Part#:21495

Manufacturer:Banner

Category:Fiber Optic Sensors

Product Lifecycle:Active

Product description

Glass Fiber Opposed Mode0.91 m long; 2.29 mm dia. Bundle; Stainless Steel Sheath; 5/16x24 Thread; 4.75 mm Probe, Side Exit

Product Details

Weight
110.676448 g
Country Of Origin
US
Housing Style
Round
Fiber Length (m)
0.914
Feature: Small Object Detection
No
Sensing End Material (Specific)
Stainless Steel
Sensing End Segment 2
Ferrule
Feature: Extended Range
No
Beam Exit
Right Angle
Minimum Bend Radius (mm)
25
Tariff Fiber Meters (fbm)
1597
Max Temp ( °C)
249
Measured Max Distance (mm)
No Data
Fiber Sheathing Material (Jacket)
Stainless Steel Monocoil
Core Diameter (mm)
2.3
Application: Vacuum Feed Through
None
Retractile
No
Feature: Chemical Resistant
No
Sensing Mode (General)
Opposed
Max Distance: DF-G3 (mm)
No Data

Fiber Sensing End Tip

Sideview

Flex Relief

Termination Type

Glass Fiber Sensors

Quantity Included

Sensing End Segment 3

Sideview

Application: Liquid Level

Sensing Mode (Detailed)

Reflective

Sensing End Segment 1

Thread

Termination

Terminated

Fiber Optic Type

Glass

Fiber Sensing End Size

5.3 mm

Integrated Lens

Fiber Sensing End Size - Mounting Area

#5/16-24 thread

Max Distance: DF-G2 (mm)

No Data

Max Distance: DF-G1 (mm)

No Data

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ITETA1.53S on Powermatic Associates is $173.00. Order now.

About the product

Banner Engineering ITETA1.53S, part of the Glass fiber series, is a fiber sensor designed with a through-beam system / opposed mode flexible fiber individual fiber side / right-angled sensing. This sensor features a cylindrical (threaded) end tip made of stainless steel and a glass fiber with a stainless flexible tubing fiber sheath. The total length of the sensor is 3ft / 910mm, with a 25.4mm diameter for the probe and a 2.3mm diameter for the fiber core. It is built to operate in ambient air temperatures up to +249°C.
