IVURDM-QD-815 Banner Cordsets
Product Details
- Weight 294.8348 g
- Country Of Origin TW
- Shield Type Coupling
- Primary Orientation Straight
- Maximum Temp. (°C) 105
- Feature: Hazardous Area No
- Connector Body Material/Color PUR Black
- Primary Coupling Method M12 Single Key
- Secondary Orientation Straight
- Cordset Length (m) 4.57
- Primary Connector Type EURO
- Primary AWG 24
- Cable Jacket Color Black
- Voltage Rating (V) 30 V ac/dc
- Secondary Coupling Method M12 Single Key
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 6.1
- Coupling Material/Color Nickel Plated Brass
- Secondary Number of Conductors 8
- Number of Connectors 2
- Minimum Temp. (°C) -40
- Secondary Connector Type EURO
- Cable Jacket Material PVC
- Trunk Length (m) No Trunk
- IP Rating IP67
- Secondary AWG 24
- Number of Contacts 8
- Current Rating (A) 2.0
- Primary Number of Conductors 8
- Shield/No Shield Shield
- Secondary Gender Male
- Primary Gender Female
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of IVURDM-QD-815 on Powermatic Associates is $140.00. Order now.
About the product

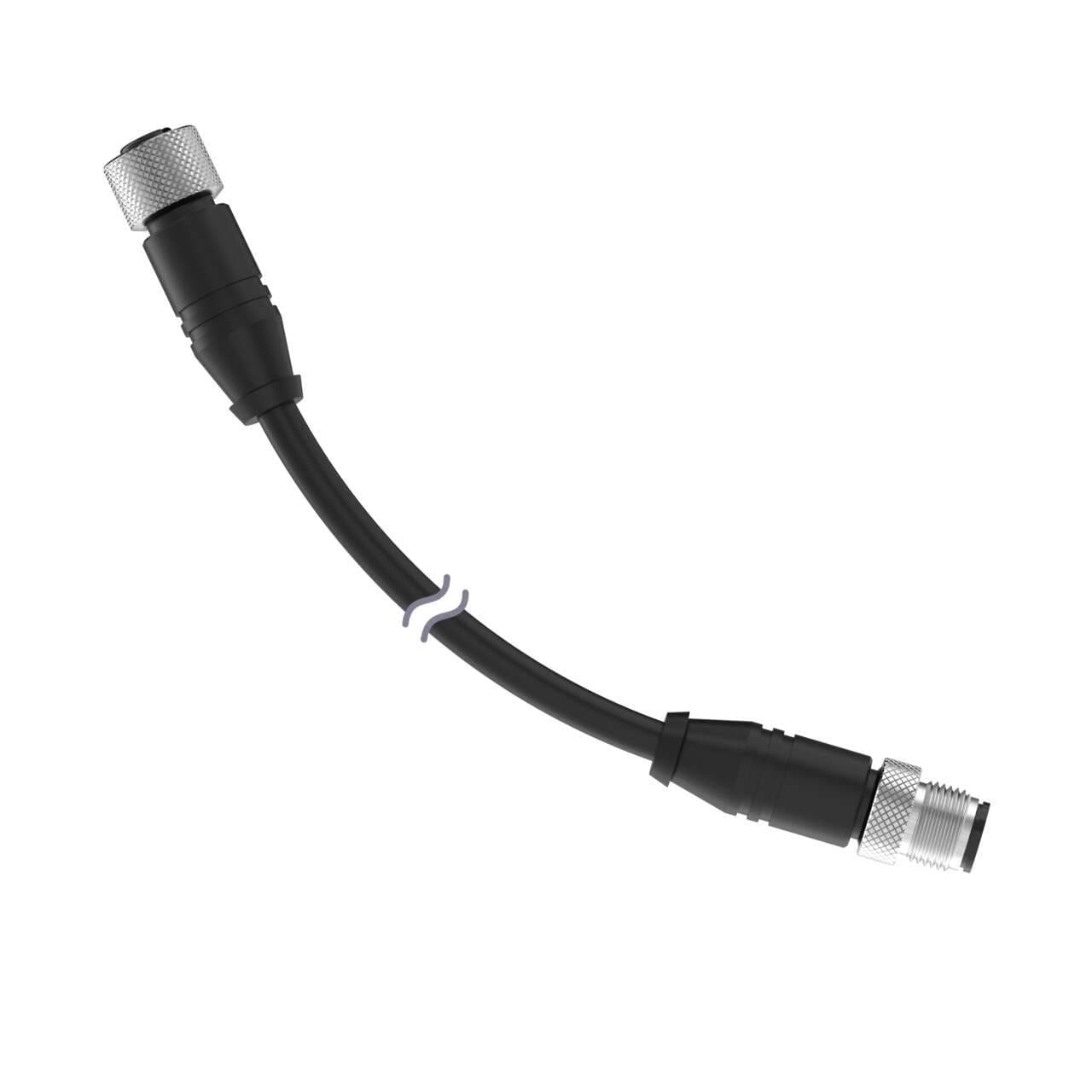

Banner Engineering IVURDM-QD-815 is a pre-assembled connecting/interconnect cable or cordset designed with double-ended connectivity. It features black sheathing made from PVC material and measures 15ft (4.5m) in length. This cable is equipped with an 8-pin Euro-style M12 male connector and an 8-pin Euro-style M12 female connector. It is rated for a voltage of 30Vac and 30Vdc, with a cable diameter of 6.1mm. The IVURDM-QD-815 is designed to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67.
