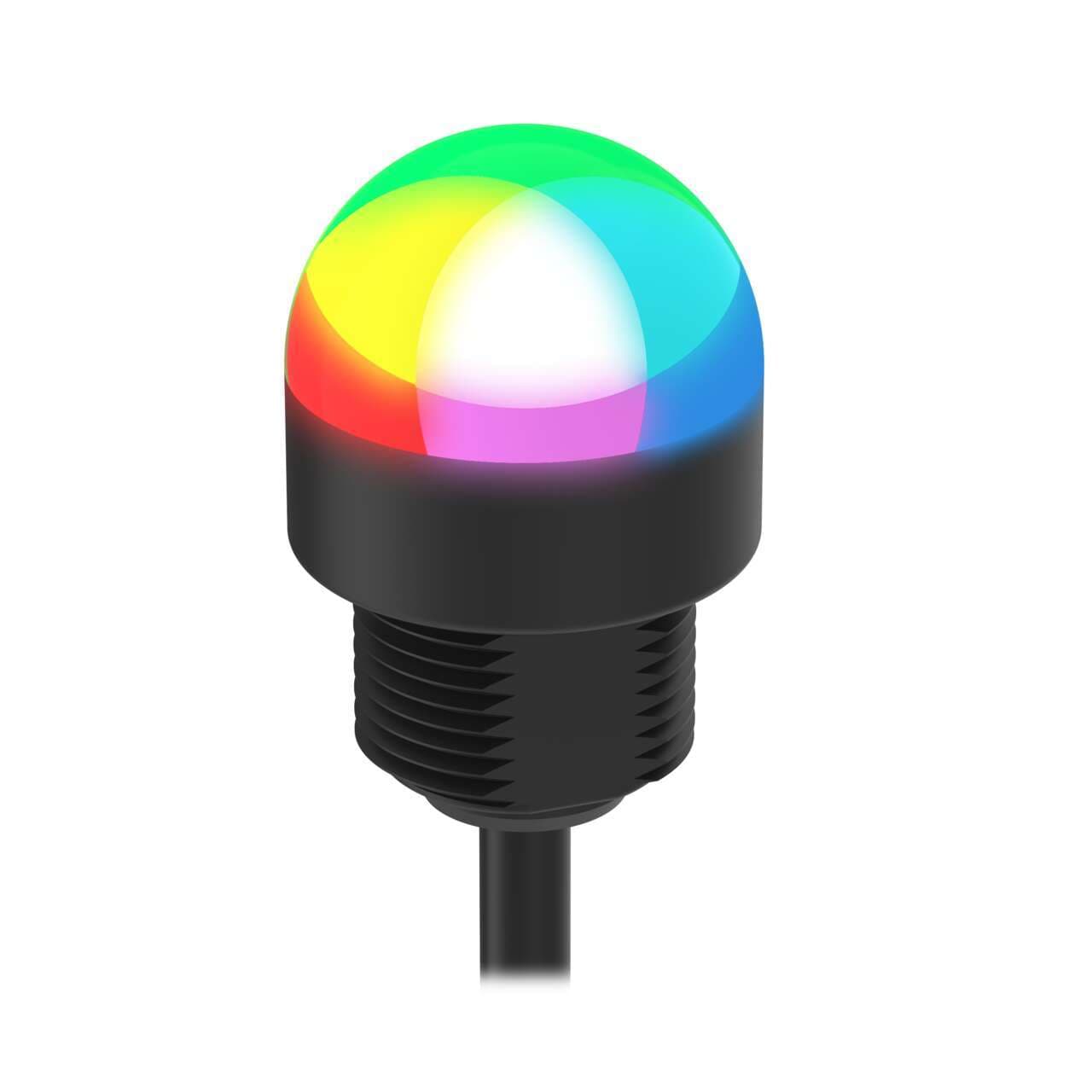

K30L2RGB7 Banner Pick-to-Light Sensors

Product Details

• Weight
  90.7184 g
• Country Of Origin
  MX
• Power Source
  DC
• Lumens Color 1
  3.2
• Color Option 4
  Yellow
• Max Current Color (mA)
  60
• Environmental Rating
  IP67; IP69
• Primary Window Material
  Polycarbonate Diffused
• Color Option 1
  Red
• Power
  DC
• Color Option 3
  Blue
• Color 4 - Wavelength/Color Temp/Coordinates
  0.449, 0.474
• Wire Selectable Function
  Flashing
• Physical Dimensions (LxWxH or DxH mm)
  30.0 x 44.5
• Feature: Hazardous Area
  No
• Number of Colors / Segments
  7
• Lumens Color 2
  4.6
• Color 5 - Wavelength/Color Temp/Coordinates
  5700K
• Dimming Option
  Programmable
• Max Op. Temperature (°C)
  50
Primary Housing Material
Polycarbonate
Animation Option 1
Solid On
Lumens Color 4
7.1
Lumens Color 7
5.3
NEMA Type and UL Type Rating
UL 4X, 12, 13
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Connection
Cable
Color Option 5
White
Color Option 6
Magenta
Color Technology
RGB Configurable
Indication
Yes
Lumens Color 3
0.70
Color 6 - Wavelength/Color Temp/Coordinates
0.370, 0.179
Number of Input Pins/Conductors
5
IO Link
No
Mounting Thread
M22 x 1.5
Color Option 2
Green
Color 3 - Wavelength/Color Temp/Coordinates
470 nm
Color Option 7
Cyan
Housing Style
Base Mount - Dome Window
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Lumens Color 5
6.9
Color 7 - Wavelength/Color Temp/Coordinates
0.194, 0.474
Product Size (mm)
30
Color 2 - Wavelength/Color Temp/Coordinates
525 nm
Lumens Color 6
4.5
Input Type
Bimodal (PNP/NPN)
Primary Housing Color
Black
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Supply Voltage
10-30 V dc
Modbus RTU
No
Min Op. Temperature (°C)
-40
Feature: Audible
No
Wireless
No
Storage Temp (°C)
-40 to 70
Max Input Response Time (ms)
250
Feature: Washdown Rated
Yes
Pro-Editor Compatible (Discrete)
Yes
Multi-Color Device
Single Color On
Feature: Chemical Resistant
No
