K30LOXXPPB2 Banner Pick-to-Light Sensors
Part#:K30LOXXPPB2
Alt. Part#:25408
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Orange; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 136.0776 g
- Country Of Origin US
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Operation Normally Open
- Secondary Material Thermoplastic
- Wireless No
- Number of Colors / Segments 1
- Max Input Response Time (ms) 1
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- Feature: Audible No
- Mounting Thread M22 x 1.5
- Connection Cable
- Primary Housing Color Black
- Environmental Rating IP67
- IO Link No
- Power Source DC
- Color Option 1 Orange
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Power DC
- Input Type PNP
- Animation Option 1 Solid On
- Max Output Response Time (ms) 10
- Feature: Quick Disconnect No
- Actuation Yes
- Output Type Dry Contact
- Product Size (mm) 30
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Activation Function Push-Button
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 49.4
- Supply Voltage 10-30 V dc
- Storage Temp (°C) -40 to 70
- NEMA Type and UL Type Rating NEMA 13
- Button Operation Momentary
- Modbus RTU No
- Housing Style Base Mount - Dome Window
- Max Current Color (mA) 40
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30LOXXPPB2 on Powermatic Associates is $96.00. Order now.
About the product

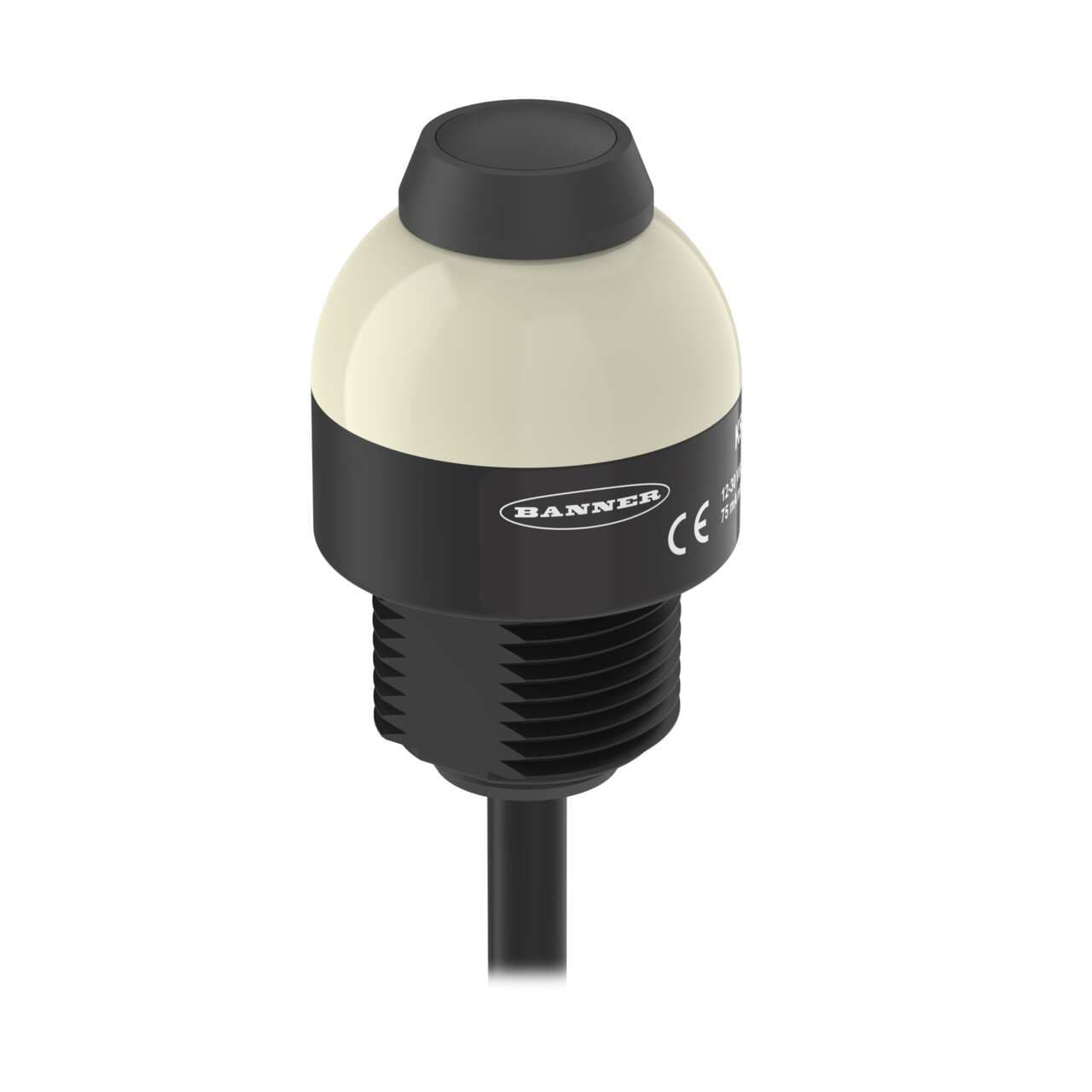

Banner Engineering K30LOXXPPB2 is an illuminated push-button featuring a 1-color orange LED illumination within a black housing. It is designed with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. The K30LOXXPPB2 can be mounted on a surface, base, or pole flush within a 22mm hole featuring an M22 thread. The dome diameter measures 30mm / 1-3/16". It is designed to function in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and NEMA 13. The operating mode is momentary NO (Normally Open) touch output, with a current consumption of 40mA. It includes 1 x digital input (10-30Vdc; PNP) for color control, 1 x digital output (NO relay contact type), and 1 NO auxiliary contact, with no NC (Normally Closed) auxiliary contacts.
