K30LWXXPPB2QP Banner Pick-to-Light Sensors
Part#:K30LWXXPPB2QP
Alt. Part#:25433
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K30L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: White; 150 mm (6 in) PVC Pigtail QD
Product Details
- Weight 77.11064 g
- Country Of Origin MX
- Actuation Yes
- Max Current Color (mA) 40
- Input Type PNP
- Storage Temp (°C) -40 to 70
- IO Link No
- Housing Style Base Mount - Dome Window
- Max Input Response Time (ms) 1
- Button Operation Momentary
- Modbus RTU No
- Activation Function Push-Button
- Supply Voltage 10-30 V dc
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Mounting Thread M22 x 1.5
- Number of Colors / Segments 1
- Environmental Rating IP67
- Pro-Editor Compatible (Discrete) No
- Primary Window Material Polycarbonate Diffused
- Power Source DC
- Color Option 1 White
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- Connection Pigtail QD
- Max Output Response Time (ms) 10
- Primary Housing Color Black
- Feature: Quick Disconnect Yes
- Power DC
- Quick Disconnect Type M12 (Euro)
- Operation Normally Open
- NEMA Type and UL Type Rating NEMA 13
- Secondary Material Thermoplastic
- Cable Length (m) 0.15
- Product Size (mm) 30
- Animation Option 1 Solid On
- Output Type Dry Contact
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 30.0 x 49.4
- Feature: Hazardous Area No
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K30LWXXPPB2QP on Powermatic Associates is $92.00. Order now.
About the product

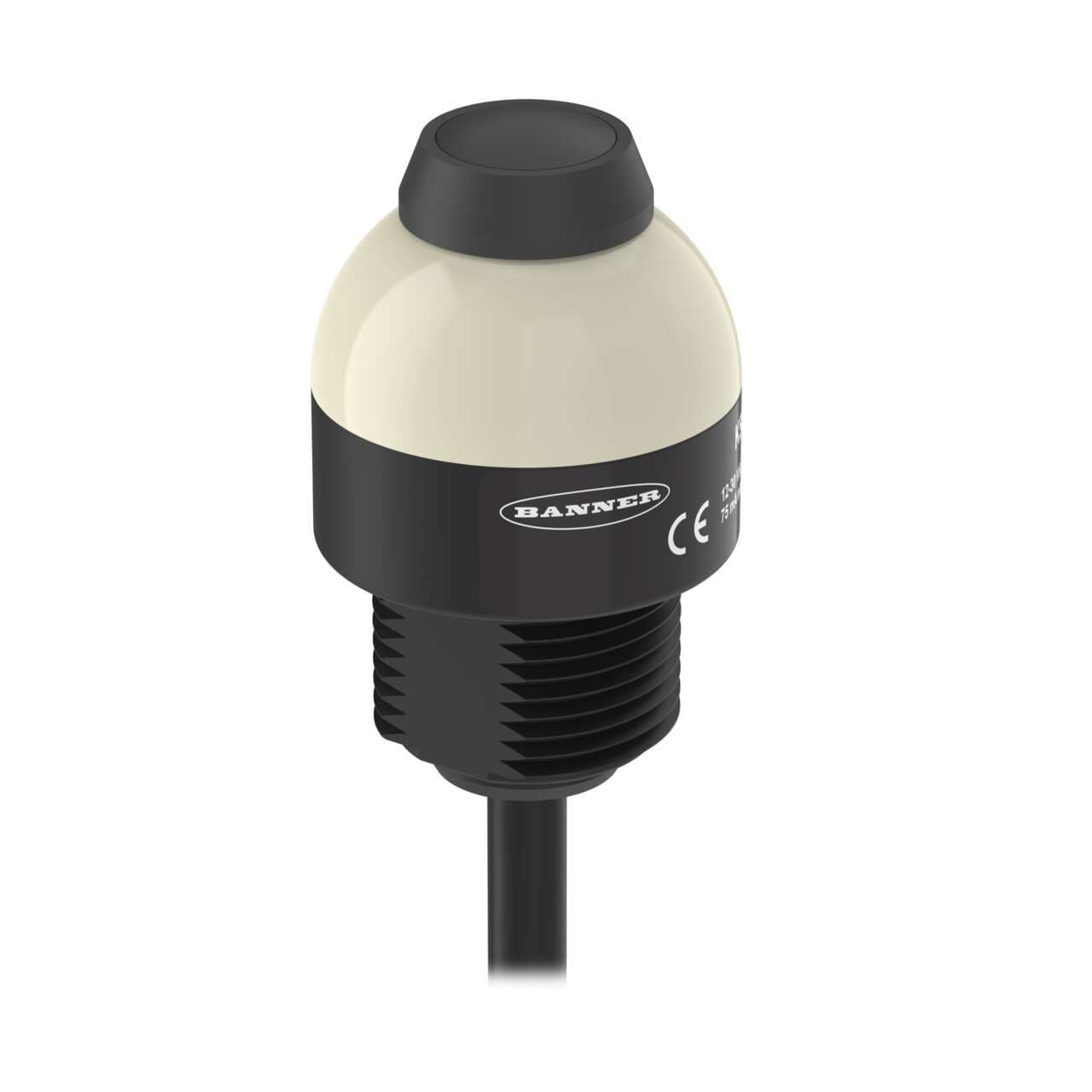

Banner Engineering K30LWXXPPB2QP is an illuminated push-button featuring a 1-color white LED illumination within a black housing. It has a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-wired with a 6-inch (15cm) pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector. It operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed for surface, base, or pole flush mounting in a 22mm hole with an M22 thread. The dome diameter measures 30mm (1-3/16 inches). It is suitable for operation in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and NEMA 13. The operating mode is momentary NO (Normally Open) touch output, with a current consumption of 40mA. It includes 1 x digital input (10-30Vdc; PNP) for color control and 1 x digital output (NO relay contact type), along with 1 Normally Open (NO) auxiliary contact and 0 Normally Closed (NC) auxiliary contacts.
