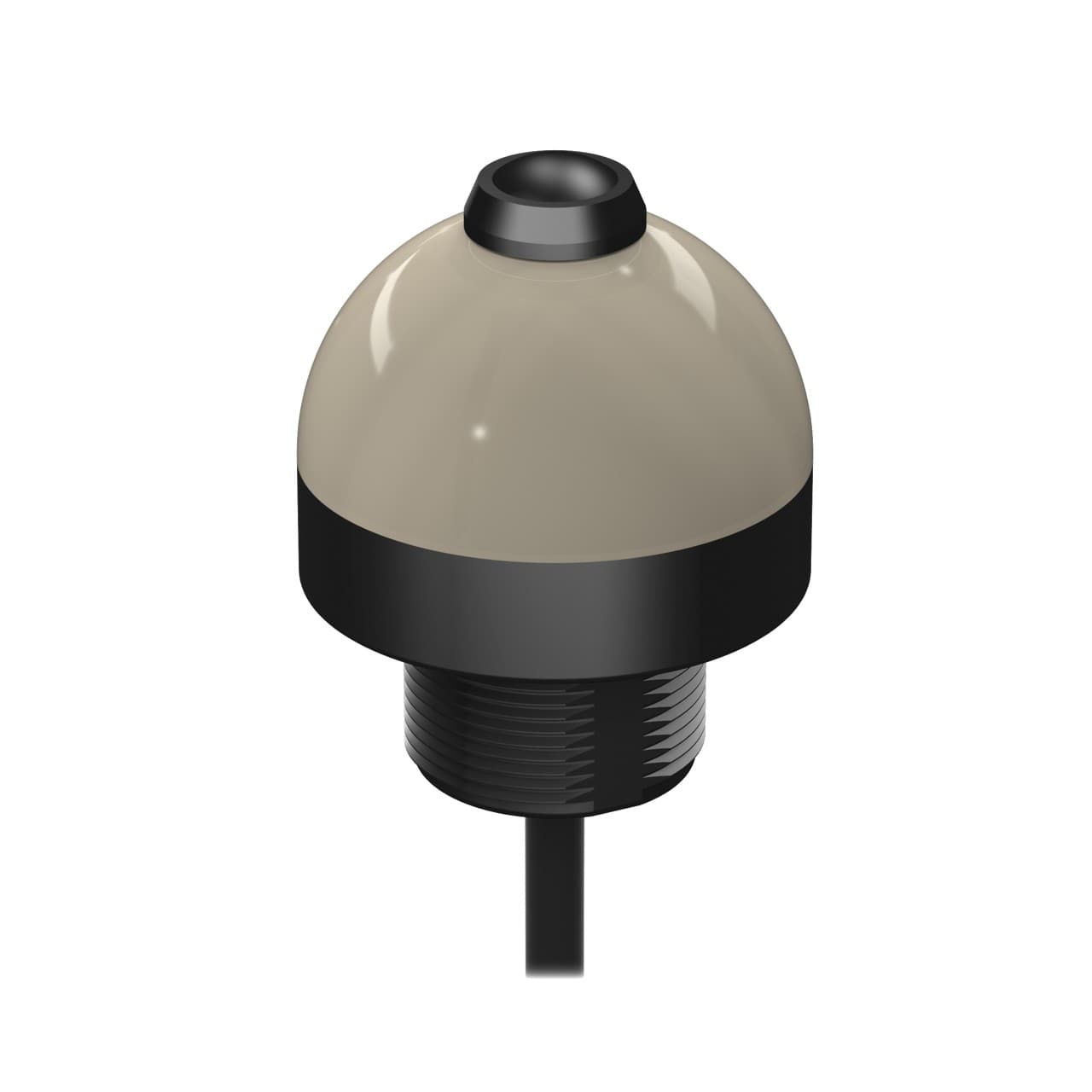

K50LWOXPPB2 Banner Electronic Components

Product Details

• IO Link
  No
• Actuation
  Yes
• Color Option 1
  White
• Supply Voltage
  12-30 V dc
• Primary Housing Color
  Black
• Pro-Editor Compatible (Discrete)
  No
• Primary Housing Material
  Polycarbonate
• Product Size (mm)
  50
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Multi-Color Device
  Single Color On
• Number of Colors / Segments
  2
• Color Option 2
  Orange
• Primary Window Material
  Polycarbonate Diffused
• Output Type
  Dry Contact
• Feature: Quick Disconnect
  No
• Activation Function
  Push-Button
• Operation
  Normally Open
• Environmental Rating
  IP65
• Wireless
  No
• Power Source
  DC
Max Current Color (mA)
65
Feature: Hazardous Area
No
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Color Technology
Standard LED
Input Type
PNP
Physical Dimensions (LxWxH or DxH mm)
50.0 x 63.7
Housing Style
Base Mount - Dome Window
Connection
Cable
Max Op. Temperature (°C)
50
Feature: Audible
No
Mounting Thread
M30 x 1.5
Number of Input Pins/Conductors
5
Min Op. Temperature (°C)
-40
Feature: Chemical Resistant
No
Power
DC
Animation Option 1
Solid On
Storage Temp (°C)
-40 to 70
Button Operation
Momentary
Modbus RTU
No
Secondary Material
Thermoplastic
