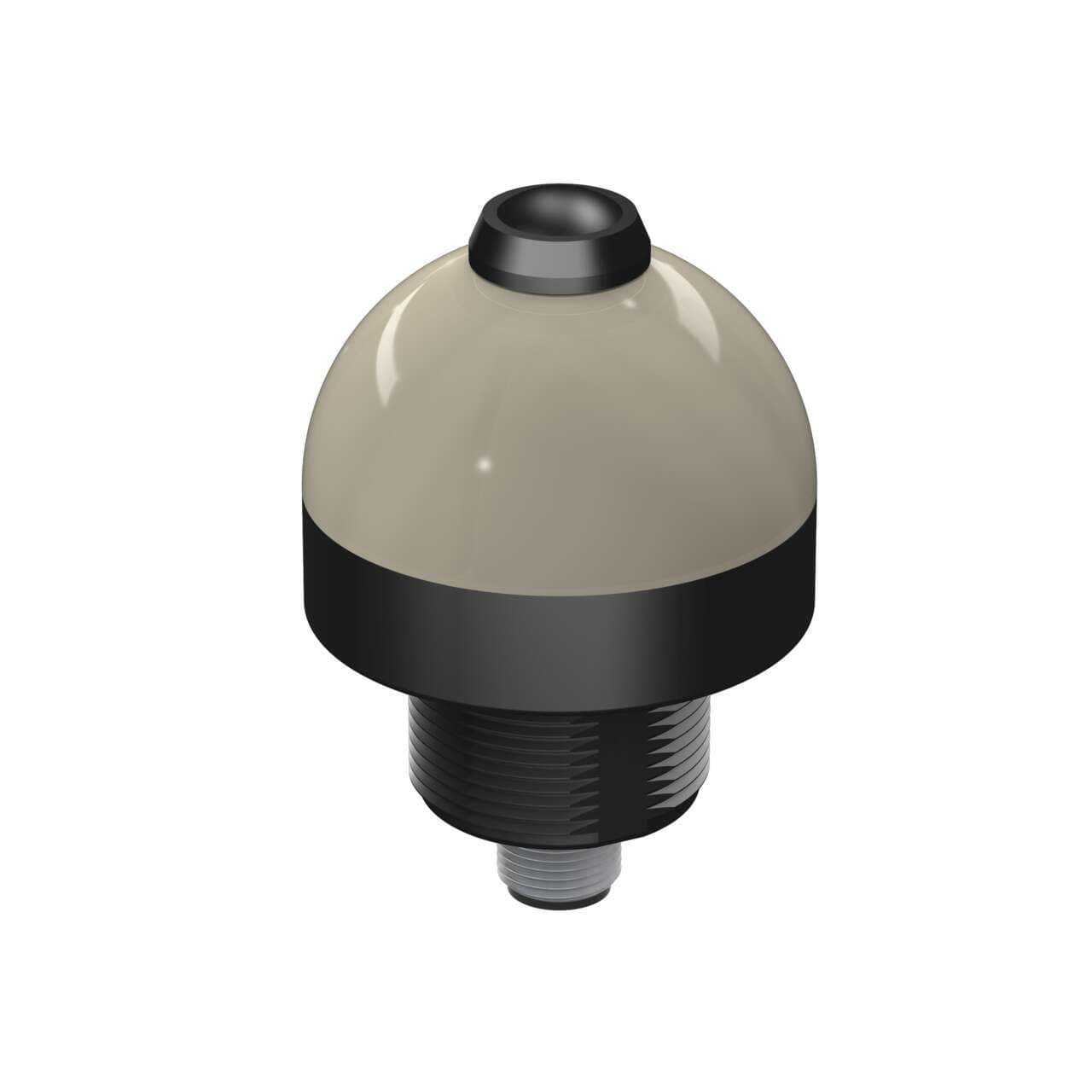

K50LGXXPPB2Q Banner Pick-to-Light Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  MX
• Power
  DC
• Product Size (mm)
  50
• Operation
  Normally Open
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Feature: Hazardous Area
  No
• Primary Housing Material
  Polycarbonate
• Number of Colors / Segments
  1
• Supply Voltage
  12-30 V dc
• Storage Temp (°C)
  -40 to 70
• Wireless
  No
• Power Source
  DC
• Color Option 1
  Green
• Output Type
  Dry Contact
• Max Op. Temperature (°C)
  50
• Feature: Chemical Resistant
  No
• Activation Function
  Push-Button
• Max Current Color (mA)
  65
• Environmental Rating
  IP65
Feature: Audible
No
Housing Style
Base Mount - Dome Window
Color Technology
Standard LED
Input Type
PNP
Primary Window Material
Polycarbonate Diffused
Pro-Editor Compatible (Discrete)
No
Actuation
Yes
Connection
Integral QD
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Button Operation
Momentary
IO Link
No
Mounting Thread
M30 x 1.5
Number of Input Pins/Conductors
4
Min Op. Temperature (°C)
-40
Multi-Color Device
Single Color On
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Quick Disconnect Type
M12 (Euro)
Primary Housing Color
Black
Feature: Quick Disconnect
Yes
Cable Length (m)
2
Animation Option 1
Solid On
Physical Dimensions (LxWxH or DxH mm)
50.0 x 74.7
Secondary Material
Thermoplastic
Modbus RTU
No
