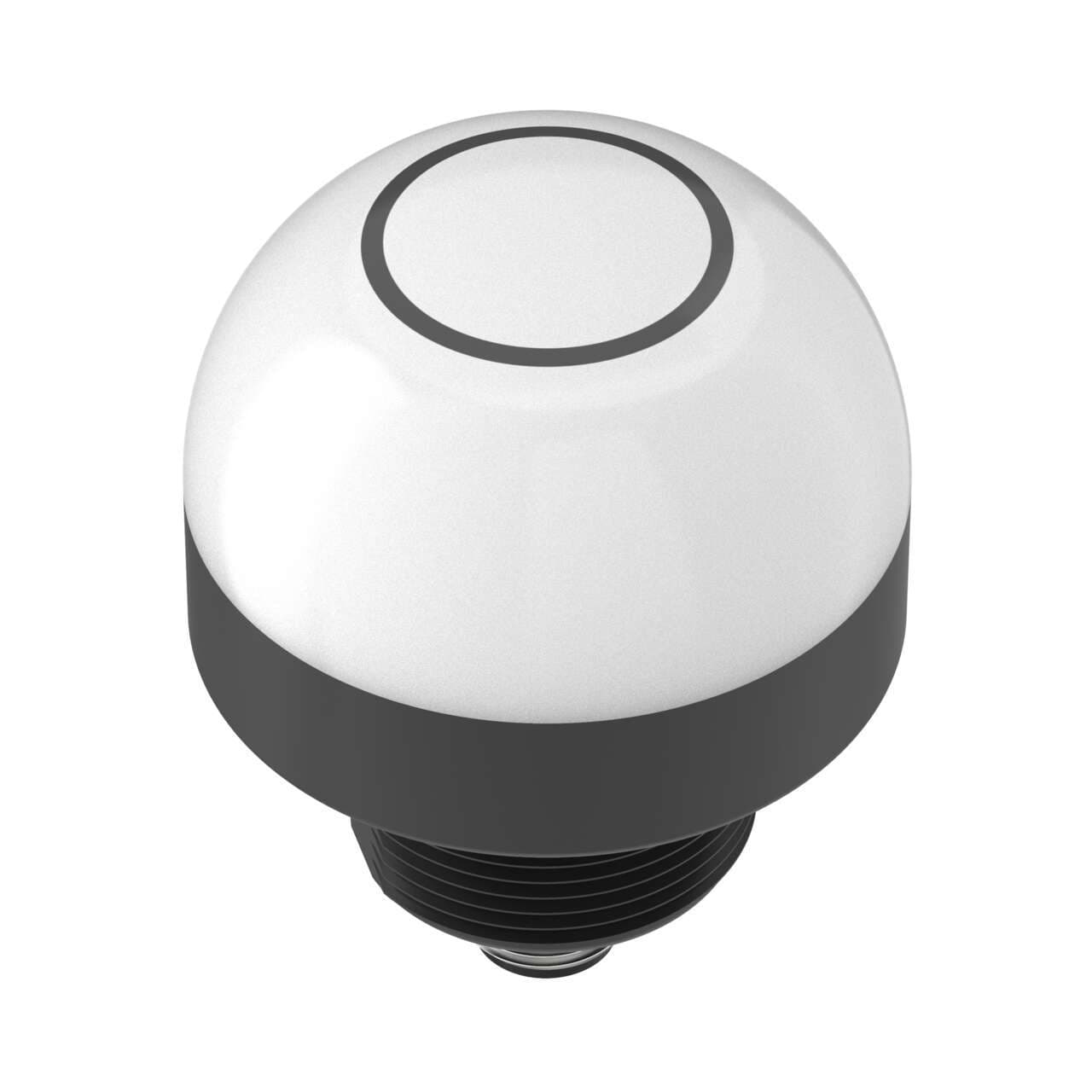

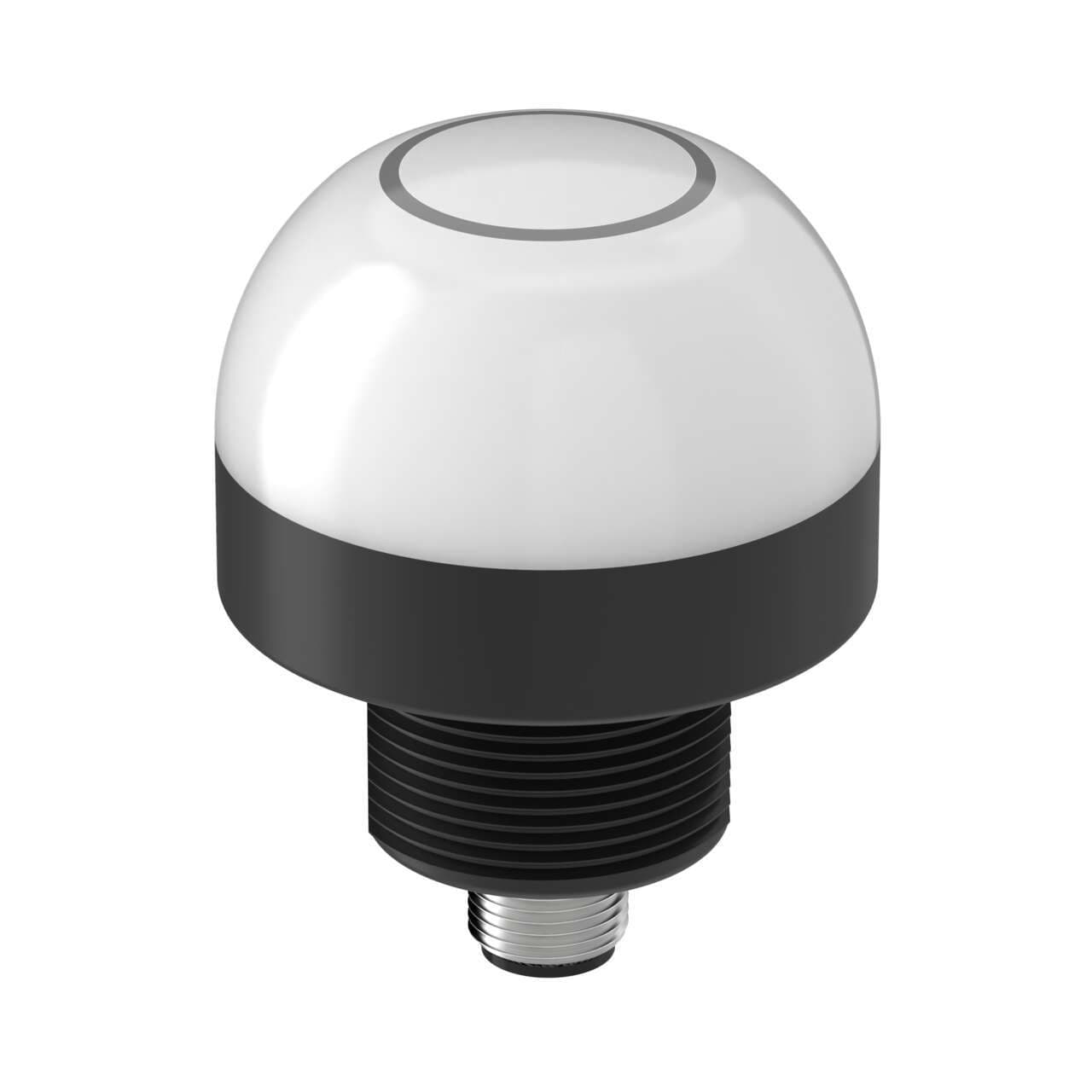

K50PTAMGRY3Q-CRCLI Banner Pick-to-Light Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  MX
• Activation Function
  Capacitive Touch
• Color Technology
  RGB Configurable
• Actuation
  Yes
• Quick Disconnect Type
  M12 (Euro)
• Max Current Color (mA)
  150
• Power Source
  DC
• Connection
  Integral QD
• Primary Housing Material
  Polycarbonate
• Product Size (mm)
  50
• Power
  DC
• Color Option 1
  Green
• Color Option 2
  Red
• Max Output Response Time (ms)
  300
• Feature: Hazardous Area
  No
• Number of Colors / Segments
  3
• Housing Style
  Base Mount - Dome Window
• Color Input Control
  Multiple (One or more wires/color, enables more colors than input wires)
• Color 1 - Wavelength/Color Temp/Coordinates
  522 nm
Color Option 3
Yellow
Lumens Color 1
16.5
Mounting Thread
M30 x 1.5
Primary Window Material
Polycarbonate Diffused
Wireless
No
Feature: Chemical Resistant
No
Output Type
Bipolar (NPN & PNP)
Min Op. Temperature (°C)
-40
Environmental Rating
IP67; IP69
Feature: Audible
No
Pick-to-Light Function
F2
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Modbus RTU
No
Color 3 - Wavelength/Color Temp/Coordinates
576 nm
Physical Dimensions (LxWxH or DxH mm)
50.0 x 66.0
IO Link
No
Number of Input Pins/Conductors
5
Supply Voltage
12-30 V dc
Feature: Washdown Rated
Yes
I/O Block Compatible
Yes
Max Op. Temperature (°C)
50
Input Type
Bimodal (PNP/NPN)
Multi-Color Device
Simultaneous Colors On
Lumens Color 2
8.3
Max Input Response Time (ms)
40
Primary Housing Color
Black
Color 2 - Wavelength/Color Temp/Coordinates
620 nm
Operation
Normally Open
Storage Temp (°C)
-40 to 70
Lumens Color 3
23.8
Button Operation
Momentary
Pro-Editor Compatible (Discrete)
Yes
