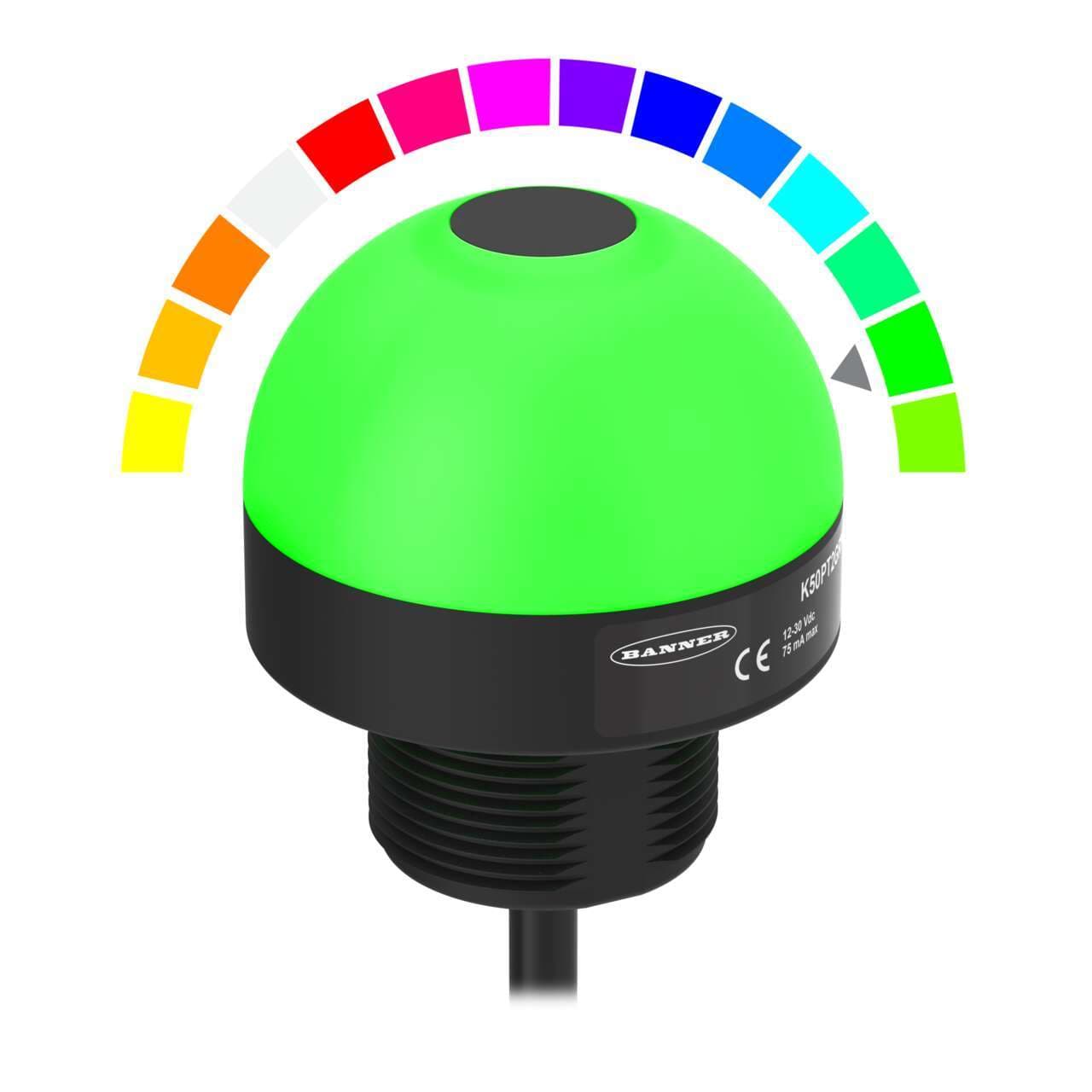

K50PFF200ALRGB14 Banner Pick-to-Light Sensors
Part#:K50PFF200ALRGB14
Alt. Part#:811256
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Pro with Pro Editor: 14-Color RGB Fixed-Field Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Range: 200 mm; Bimodal, NO, Latching; Colors: Multicolor; 2 m (6 ft) Integral Cable
Product Details
- Weight 226.796 g
- Country Of Origin MX
- Actuation Yes
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Mounting Thread M30 x 1.5
- Number of Colors / Segments 14
- Lumens Color 2 20.5
- Color Option 5 Blue
- Number of Input Pins/Conductors 8
- Maximum Sensing Distance (mm) 200
- Feature: Hazardous Area No
- Output Type Bipolar (NPN & PNP)
- Min Op. Temperature (°C) -40
- IO Link No
- Housing Style Base Mount - Dome Window
- Lumens Color 1 7.1
- Color Option 4 Cyan
- Color 7 - Wavelength/Color Temp/Coordinates 5700K
- Max Input Response Time (ms) 40
- Feature: Washdown Rated Yes
- Primary Housing Material Polycarbonate
- Connection Cable
- Lumens Color 3 14.2
- Lumens Color 6 9.5
- Operation Normally Open
- Max Op. Temperature (°C) 50
- Multi-Color Device Simultaneous Colors On
- Sensing Mode (General) Fixed Field
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 576 nm
- Color 5 - Wavelength/Color Temp/Coordinates 466 nm
- Lumens Color 7 21.6
- Number of Beams 1
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) Yes
- Power Source DC
- Color Option 2 Yellow
- Lumens Color 5 4
- Supply Voltage 12-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Cable Length (m) 2
- Quick Disconnect Type No QD
- Color 4 - Wavelength/Color Temp/Coordinates 493 nm
- Pick-to-Light Function F2
- Max Output Response Time (ms) 300
- Button Operation Latching
- Power DC
- Color Technology RGB Configurable
- Color Option 3 Green
- Color Option 6 Magenta
- Wire Selectable Function Flashing
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Wireless No
- Activation Function Optical
- Color Option 1 Red
- Color 3 - Wavelength/Color Temp/Coordinates 522 nm
- Color Option 7 White
- Input Type Bimodal (PNP/NPN)
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Color 1 - Wavelength/Color Temp/Coordinates 620 nm
- Lumens Color 4 15.8
- Max Current Color (mA) 150
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 67.3
- USB No
- Primary Window Material Polycarbonate Diffused
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50PFF200ALRGB14 on Powermatic Associates is $188.00. Order now.
About the product
K50 Pro with Pro Editor: 14-Color RGB Fixed-Field Sensor, Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K, Range: 200 mm; Bimodal, NO, Latching; Colors: Multicolor, 2 m (6ft) Cable
