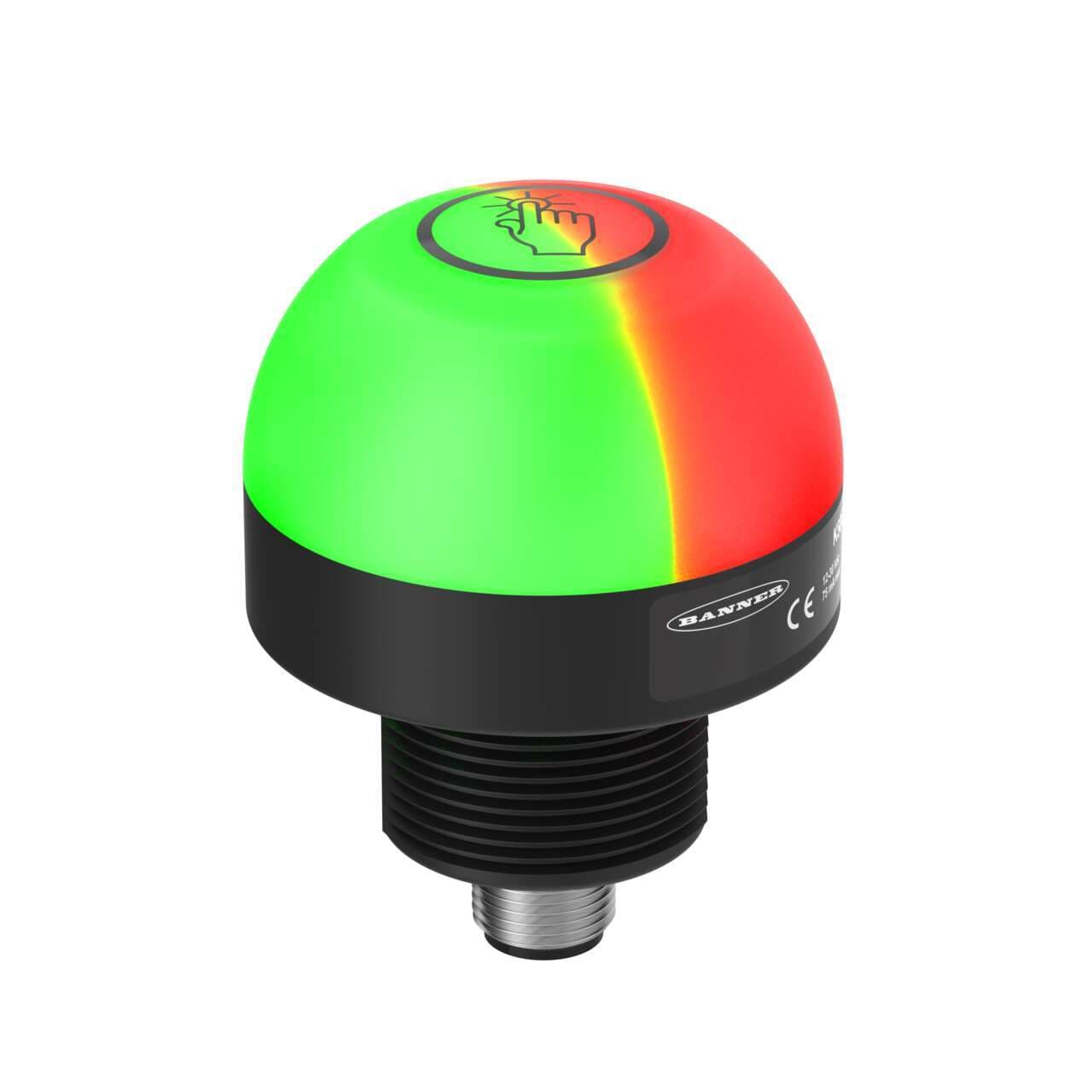

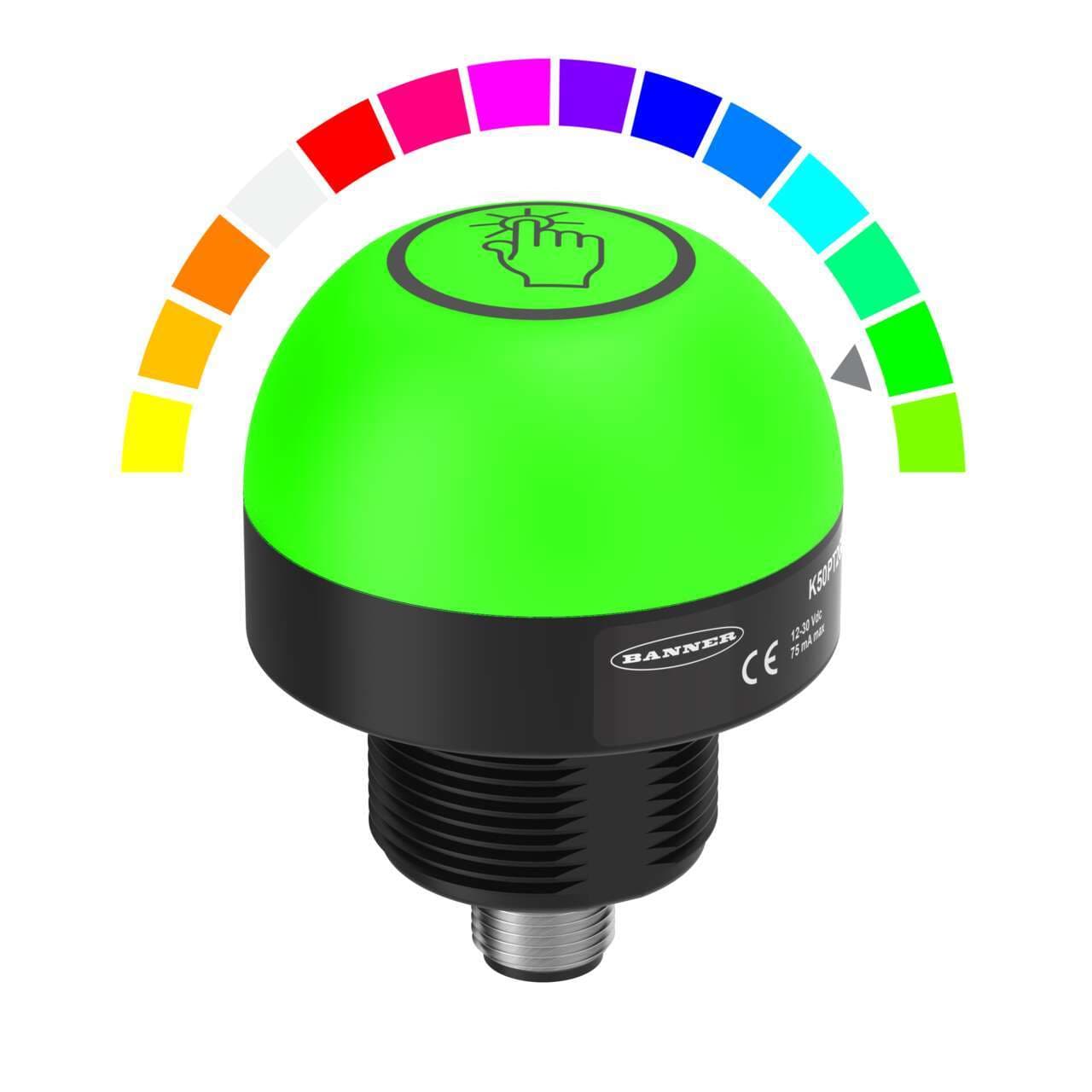

K50PTAMGRY3Q Banner Pick-to-Light Sensors

Product Details

• Weight
  181.4368 g
• Country Of Origin
  MX
• Actuation
  Yes
• Color 1 - Wavelength/Color Temp/Coordinates
  522 nm
• Max Current Color (mA)
  150
• Max Input Response Time (ms)
  40
• Modbus RTU
  No
• Cable Length (m)
  0.15
• Lumens Color 1
  16.5
• Pick-to-Light Function
  F2
• Max Output Response Time (ms)
  300
• Wireless
  No
• Mounting Thread
  M30 x 1.5
• Color Technology
  RGB Configurable
• Connection
  Integral QD
• Color 2 - Wavelength/Color Temp/Coordinates
  620 nm
• Feature: Washdown Rated
  Yes
• Primary Housing Material
  Polycarbonate
• Color Input Control
  Multiple (One or more wires/color, enables more colors than input wires)
• Power
  DC
Color Option 3
Yellow
Supply Voltage
12-30 V dc
Max Op. Temperature (°C)
50
Feature: Chemical Resistant
No
Housing Style
Base Mount - Dome Window
Color Option 1
Green
Color 3 - Wavelength/Color Temp/Coordinates
576 nm
I/O Block Compatible
Yes
Button Operation
Momentary
Power Source
DC
Product Size (mm)
50
Lumens Color 2
8.3
Output Type
Bipolar (NPN & PNP)
Min Op. Temperature (°C)
-40
Multi-Color Device
Simultaneous Colors On
Activation Function
Capacitive Touch
Color Option 2
Red
Primary Window Material
Polycarbonate Diffused
IO Link
No
Quick Disconnect Type
M12 (Euro)
Physical Dimensions (LxWxH or DxH mm)
50.0 x 66.0
Primary Housing Color
Black
Number of Colors / Segments
3
Input Type
Bimodal (PNP/NPN)
Feature: Audible
No
Operation
Normally Open
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Environmental Rating
IP67; IP69
Storage Temp (°C)
-40 to 70
Lumens Color 3
23.8
Feature: Hazardous Area
No
Number of Input Pins/Conductors
5
Pro-Editor Compatible (Discrete)
Yes
