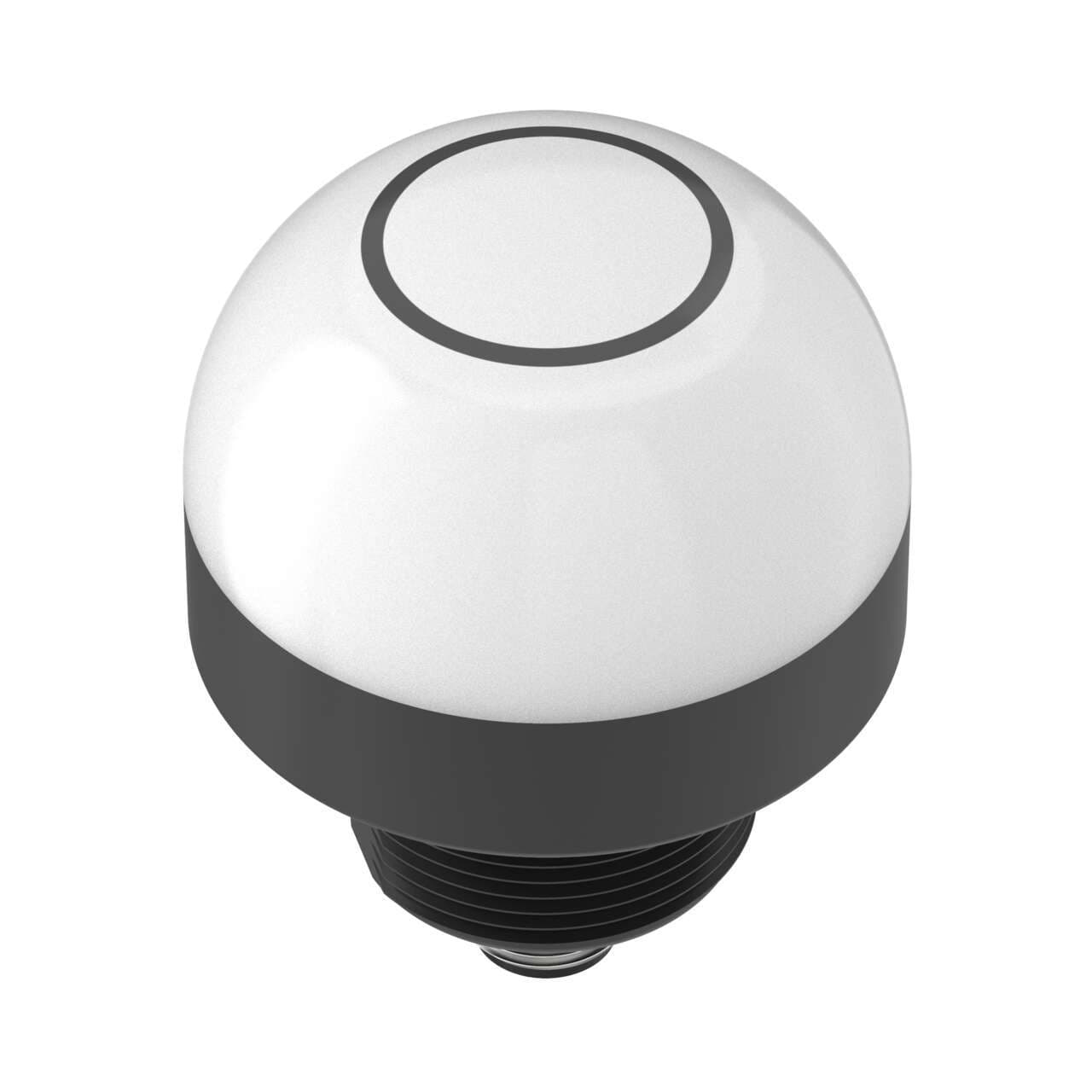

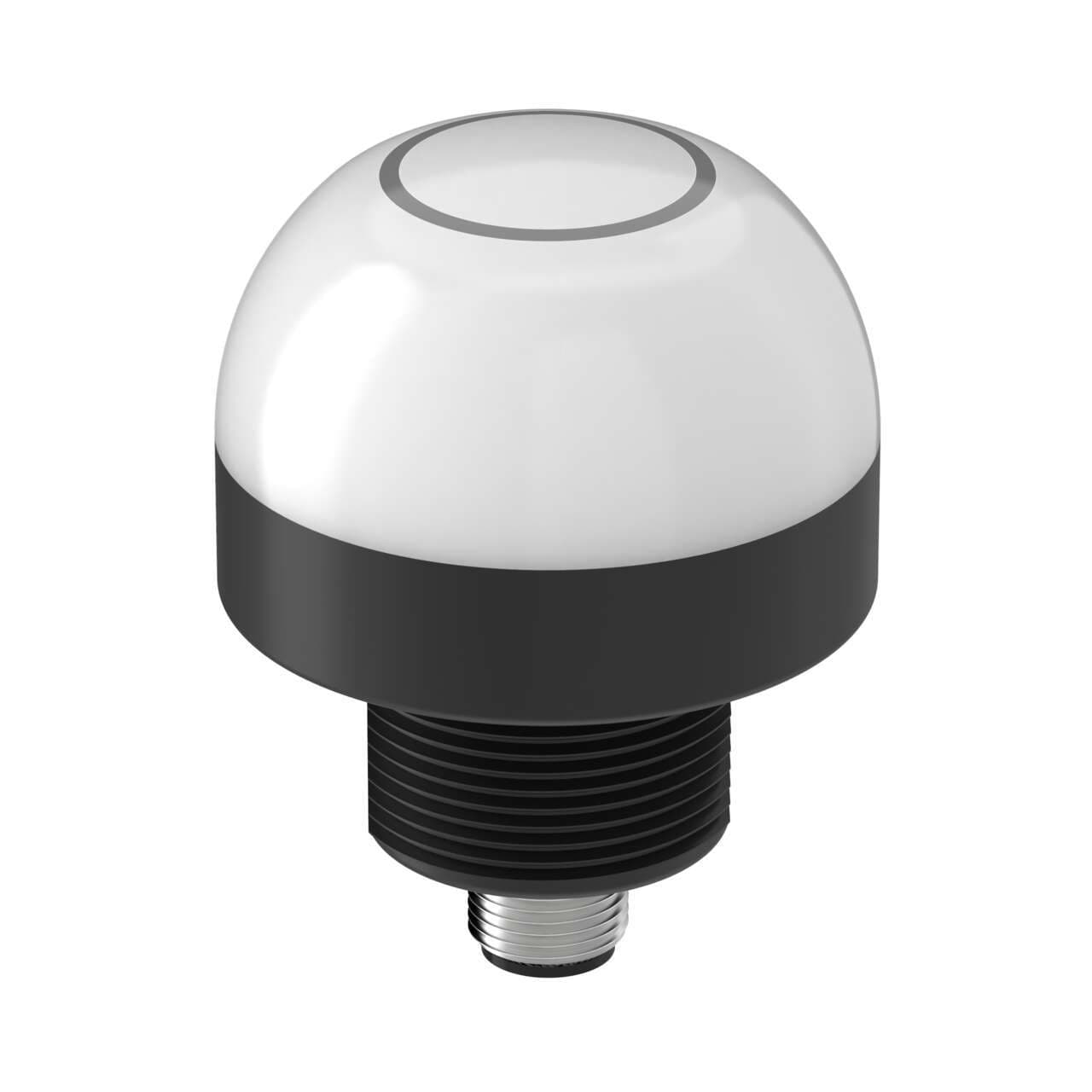

K50PTKQ-CRCLI Banner Pick-to-Light Sensors

Product Details

• Weight
  136.0776 g
• Country Of Origin
  MX
• Housing Style
  Base Mount - Dome Window
• Pick-to-Light Function
  Programmable
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Mounting Thread
  M30 x 1.5
• Dimming Option
  Programmable
• Supply Voltage
  18-30 V dc
• Actuation
  Yes
• Animation Option 1
  Programmable
• Power
  DC
• Max Current Color (mA)
  115
• Number of Input Pins/Conductors
  4
• Number of Colors / Segments
  Programmable
• Connection
  Integral QD
• I/O Block Compatible
  Yes
• Activation Function
  Capacitive Touch
• Quick Disconnect Type
  M12 (Euro)
• Max Output Response Time (ms)
  300
• Color Input Control
  Communication Protocol
Product Size (mm)
50
Physical Dimensions (LxWxH or DxH mm)
50.0 x 66.0
Primary Housing Material
Polycarbonate
Color Option 1
RGB
Input Type
Communication Protocol
Storage Temp (°C)
-40 to 70
Modbus RTU
No
Operation
Programmable
Min Op. Temperature (°C)
-40
Wireless
No
Environmental Rating
IP67; IP69
Button Operation
Programmable
Feature: Hazardous Area
No
Feature: Audible
No
Feature: Chemical Resistant
No
Power Source
DC
Max Op. Temperature (°C)
50
Primary Housing Color
Black
Color Technology
RGB IO-Link
Output Type
Communication Protocol
Primary Window Material
Polycarbonate Diffused
Feature: Washdown Rated
Yes
IO Link
Yes
Multi-Color Device
Simultaneous Colors On
Pro-Editor Compatible (Discrete)
No
