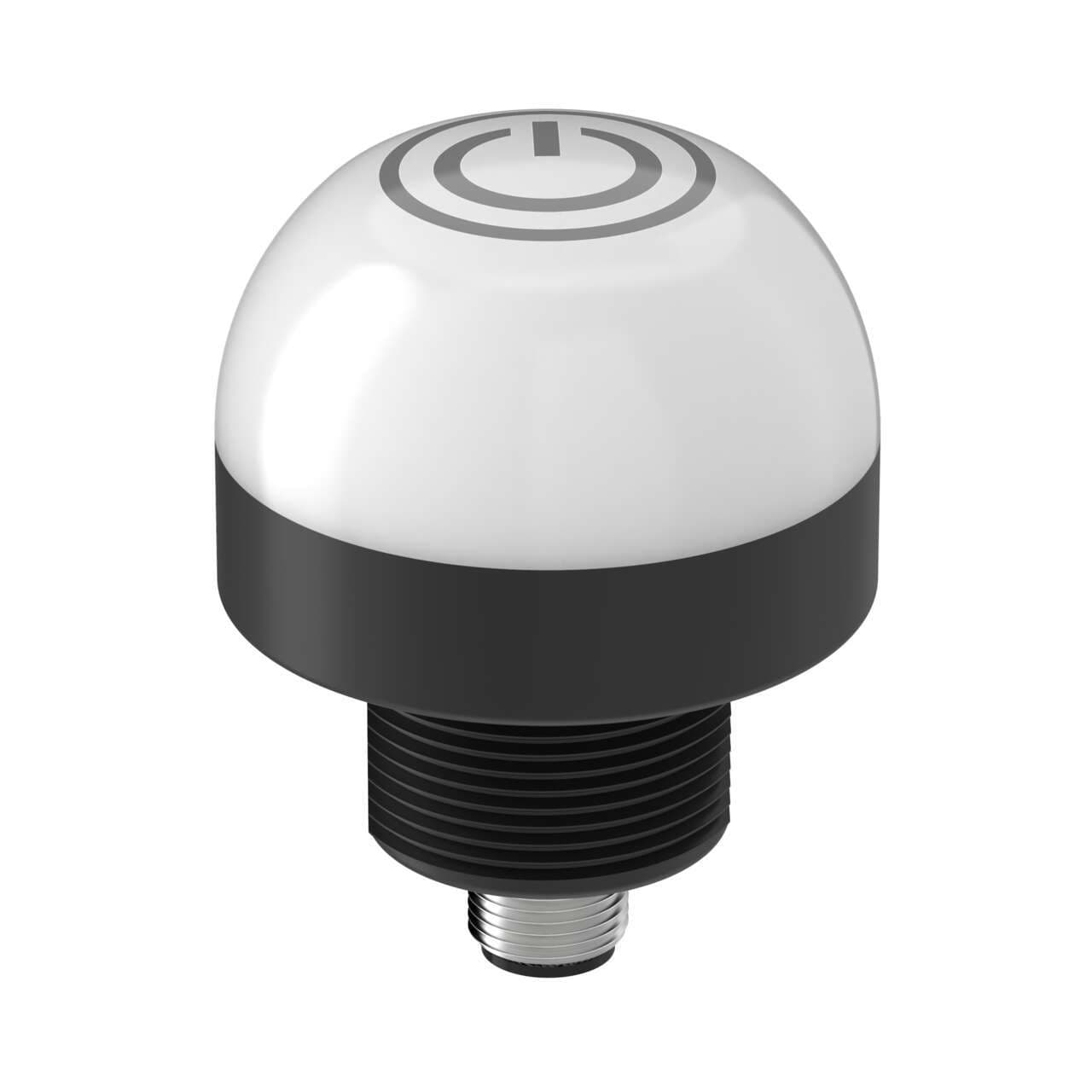

K50PTKQ-STRTI Banner Pick-to-Light Sensors

Product Details

• Weight
  136.0776 g
• Country Of Origin
  MX
• Activation Function
  Capacitive Touch
• Animation Option 1
  Programmable
• Output Type
  Communication Protocol
• Primary Housing Color
  Black
• Housing Style
  Base Mount - Dome Window
• Dimming Option
  Programmable
• Color Input Control
  Communication Protocol
• Pick-to-Light Function
  Programmable
• Power
  DC
• Product Size (mm)
  50
• Number of Input Pins/Conductors
  4
• Primary Housing Material
  Polycarbonate
• Quick Disconnect Type
  M12 (Euro)
• I/O Block Compatible
  Yes
• Button Operation
  Programmable
• Wireless
  No
• Actuation
  Yes
• Max Current Color (mA)
  115
Max Output Response Time (ms)
300
Feature: Hazardous Area
No
Power Source
DC
Color Technology
RGB IO-Link
Operation
Programmable
Number of Colors / Segments
Programmable
Supply Voltage
18-30 V dc
Physical Dimensions (LxWxH or DxH mm)
50.0 x 66.0
Multi-Color Device
Simultaneous Colors On
Connection
Integral QD
IO Link
Yes
Mounting Thread
M30 x 1.5
Color Option 1
RGB
Storage Temp (°C)
-40 to 70
Primary Window Material
Polycarbonate Diffused
Pro-Editor Compatible (Discrete)
No
Environmental Rating
IP67; IP69
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Audible
No
Modbus RTU
No
Max Op. Temperature (°C)
50
Feature: Chemical Resistant
No
Min Op. Temperature (°C)
-40
Input Type
Communication Protocol
Feature: Washdown Rated
Yes
