Part#:K70DXN2GQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

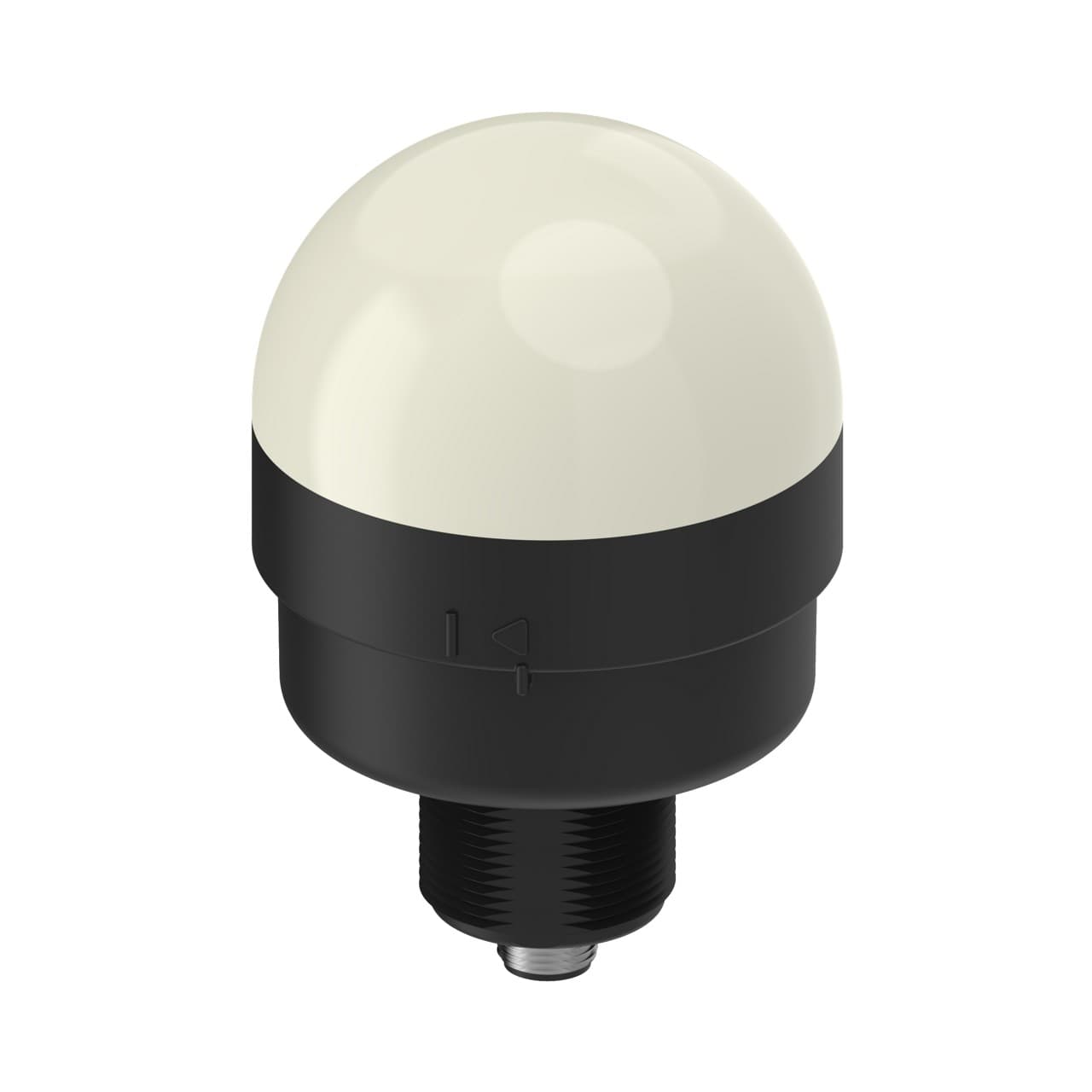

K70 Wireless Indicator, 2.4 GHz; 1-Color Indicator, Voltage: 12-30 V dc; Environmental Rating: IP65, Colors: Green, Euro 5-pin Quick-Disconnect

Product Details

  • Number of Colors / Segments
    1
  • Number of Input Pins/Conductors
    5
  • Primary Housing Color
    Black
  • Mounting Thread
    M30 x 1.5
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 107.5
  • IO Link
    No
  • Housing Style
    Base Mount - Dome Window
  • Max Current Color (mA)
    200
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    No
  • Lumens Color 1
    65.0
  • Wireless Network
    Node
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Environmental Rating
    IP65
  • Product Size (mm)
    70
  • Color Option 1
    Green
  • Max Input Response Time (ms)
    180
  • Wireless
    Yes
  • Power Source
    DC
  • Input Type
    PNP or Communication Protocol
  • Feature: Audible
    No
  • Primary Housing Material
    Polycarbonate
  • Animation Option 1
    Solid On
  • Supply Voltage
    12-30 V dc
  • Feature: Chemical Resistant
    No
  • Indication
    Yes
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Power
    DC
  • Feature: Hazardous Area
    No
  • Feature: Quick Disconnect
    Yes
  • Connection
    Integral QD
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Wireless Radio Frequency
    2.4 GHz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K70DXN2GQ Related Documents

K70L_ WEB QD-1630954497613.pdfK70L_ WEB QD-1630954497607.stpK70 Wireless Indicator Light -- Datasheet-1630954497611.pdf
