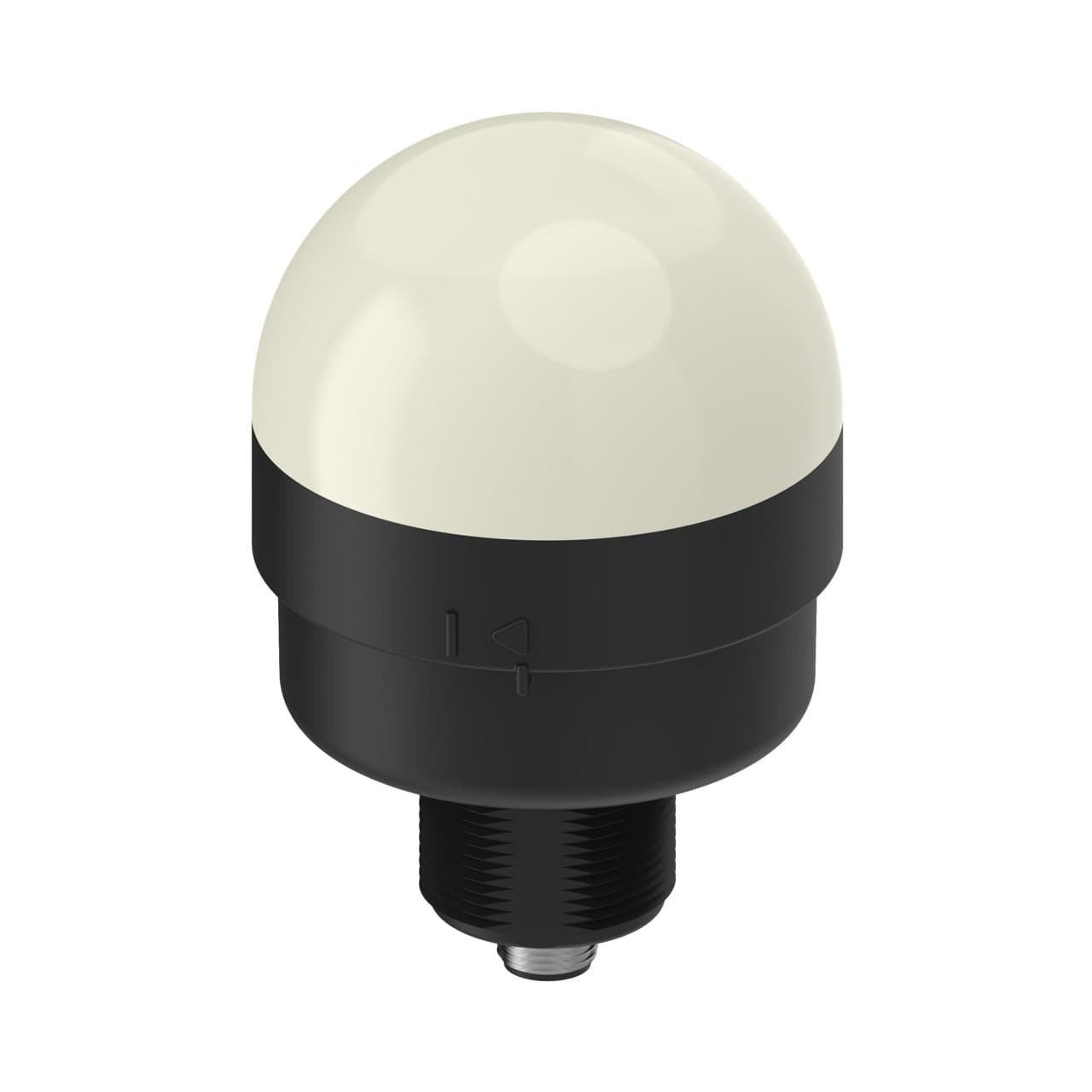

K70DXN2GRQ Banner Electronic Components

Product Details

• Color Technology
  Standard LED
• Primary Housing Material
  Polycarbonate
• Color 1 - Wavelength/Color Temp/Coordinates
  525 nm
• Number of Colors / Segments
  2
• Housing Style
  Base Mount - Dome Window
• Physical Dimensions (LxWxH or DxH mm)
  70.0 x 107.5
• Mounting Thread
  M30 x 1.5
• Product Size (mm)
  70
• Indication
  Yes
• Power
  DC
• Power Source
  DC
• Quick Disconnect Type
  M12 (Euro)
• Supply Voltage
  12-30 V dc
• Wireless
  Yes
• Max Current Color (mA)
  200
• Primary Housing Color
  Black
• Wireless Network
  Node
• Min Op. Temperature (°C)
  -40
• Feature: Hazardous Area
  No
• IO Link
  No
Animation Option 1
Solid On
Environmental Rating
IP65
Multi-Color Device
Single Color On
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Lumens Color 2
34.0
Wireless Radio Frequency
2.4 GHz
Color Option 2
Red
Max Input Response Time (ms)
180
Feature: Audible
No
Lumens Color 1
65.0
Input Type
PNP or Communication Protocol
Feature: Quick Disconnect
Yes
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Number of Input Pins/Conductors
5
Feature: Chemical Resistant
No
Connection
Integral QD
Max Op. Temperature (°C)
50
Pro-Editor Compatible (Discrete)
No
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Color Option 1
Green
Modbus RTU
No
