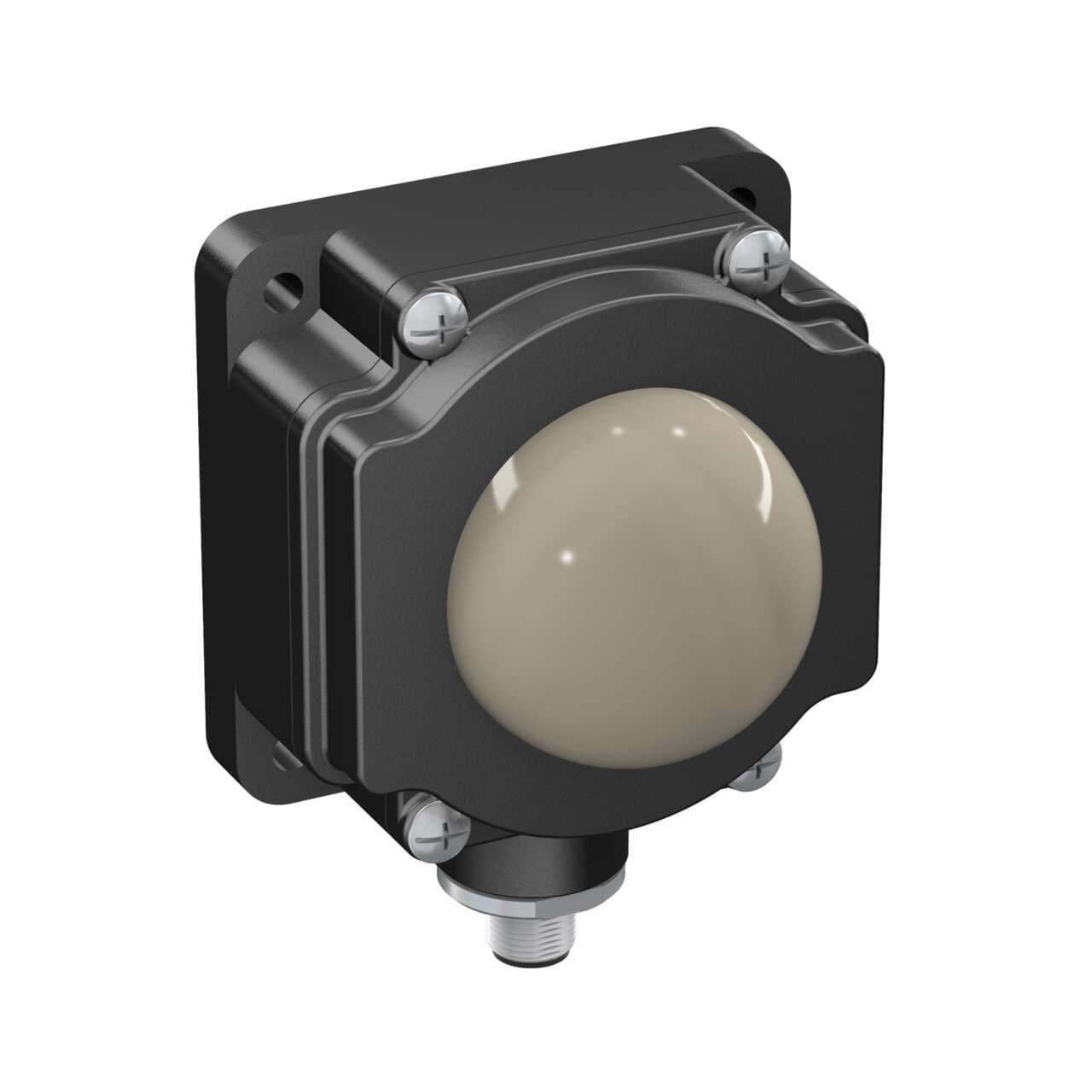

K80LGRY2PQ Banner Pick-to-Light Sensors

Name: K80LGRY2PQ
Brand: Banner
Price: 151 USD
Availability: BackOrder

Part#:K80LGRY2PQ

Alt. Part#:76847

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K80 Series EZ-LIGHT: 3-Color Multi-Function Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red Yellow; M12 Integral QD

Product Details

Weight
272.1552 g
Country Of Origin
US
Animation Option 3
Multiple
Feature: Hazardous Area
No
Primary Housing Material
Polycarbonate
Connection
Integral QD
Input Type
PNP
Feature: Audible
No
Housing Style
Flat Mount - Dome Window
Animation Option 1
Multiple
Supply Voltage
18-30 V dc
Indication
Yes
Color Option 2
Red
Environmental Rating
IP67
IO Link
No
Mounting Thread
No Thread
Color Option 3
Yellow
Max Op. Temperature (°C)
50
Modbus RTU
No
Number of Colors / Segments
3

Animation Option 2

Multiple

Physical Dimensions (LxWxH or DxH mm)

107.6 x 80.9 x 66.7

Multi-Color Device

Single Color On - Alternating

Cable Length (m)

0.15

Product Size (mm)

Max Current Color (mA)

Min Op. Temperature (°C)

-40

Wireless

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Quick Disconnect Type

M12 (Euro)

Max Input Response Time (ms)

Feature: Quick Disconnect

Yes

Power Source

Color Option 1

Green

Number of Input Pins/Conductors

Primary Housing Color

Yellow

Power

Color Technology

Standard LED

Wire Selectable Function

Multi-Function

Feature: Chemical Resistant

Primary Window Material

Acrylic Diffused

Pro-Editor Compatible (Discrete)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K80LGRY2PQ on Powermatic Associates is $151.00. Order now.

About the product

Banner Engineering K80LGRY2PQ is a pilot light from the EZ-LIGHT series designed for surface or wall mounting with an 80x80mm footprint. This part features a flat-pack LED pilot light indicator with a 3-color multifunction G/R/Y color pattern LED illumination housed in a yellow acrylic diffused window with a polycarbonate (PC) base. The dome window on the flat-pack body has a diameter of 50mm / 2 inches. It offers a screw-clamp terminal connection and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nominal). The K80LGRY2PQ is designed to function within an ambient air temperature range of -40°C to +50°C and has a degree of protection rated at IP67. It consumes 40mA of current and includes 3 x digital inputs (18-30Vdc; PNP) for color control.
