K90LGYRPQ Banner Signal Beacons

K90LGYRPQ on Powermatic Associates
Banner

Part#:K90LGYRPQ

Alt. Part#:92822

Manufacturer:Banner

Category:Signal Beacons

Product Lifecycle:Active

Product description

K90 Series EZ-LIGHT; 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Yellow Red; 5-pin M12 Integral QD

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    MX
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 1
    150
  • Number of Input Pins/Conductors
    5
  • Color Technology
    Standard LED
  • Color Option 2
    Yellow
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 87.0
  • Feature: Chemical Resistant
    No
  • Indication
    Yes
  • Connection
    Integral QD
  • Color 3 - Wavelength/Color Temp/Coordinates
    625 nm
  • Feature: Hazardous Area
    No
  • Color Option 1
    Green
  • Cable Length (m)
    0.15
  • Lumens Color 2
    35.0
  • Environmental Rating
    IP67
  • IO Link
    No
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • Color 2 - Wavelength/Color Temp/Coordinates
    590 nm
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    No
  • Power Source
    DC
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Max Input Response Time (ms)
    75
  • Feature: Audible
    No
  • Input Type
    PNP
  • Max Current Color (mA)
    475
  • Min Op. Temperature (°C)
    -40
  • Housing Style
    Base Mount - Dome Window
  • Animation Option 1
    Solid On
  • Lumens Color 3
    65.0
  • Primary Window Material
    Polycarbonate Diffused
  • Wire Selectable Function
    Flashing
  • Mounting Thread
    M30 x 1.5
  • Product Size (mm)
    90
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Pro-Editor Compatible (Discrete)
    No
  • Number of Colors / Segments
    3
  • Primary Housing Material
    Polycarbonate
  • Color Option 3
    Red
  • Supply Voltage
    12-30 V dc
  • Wireless
    No
  • Multi-Color Device
    Single Color On

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K90LGYRPQ on Powermatic Associates is $200.00. Order now.

About the product

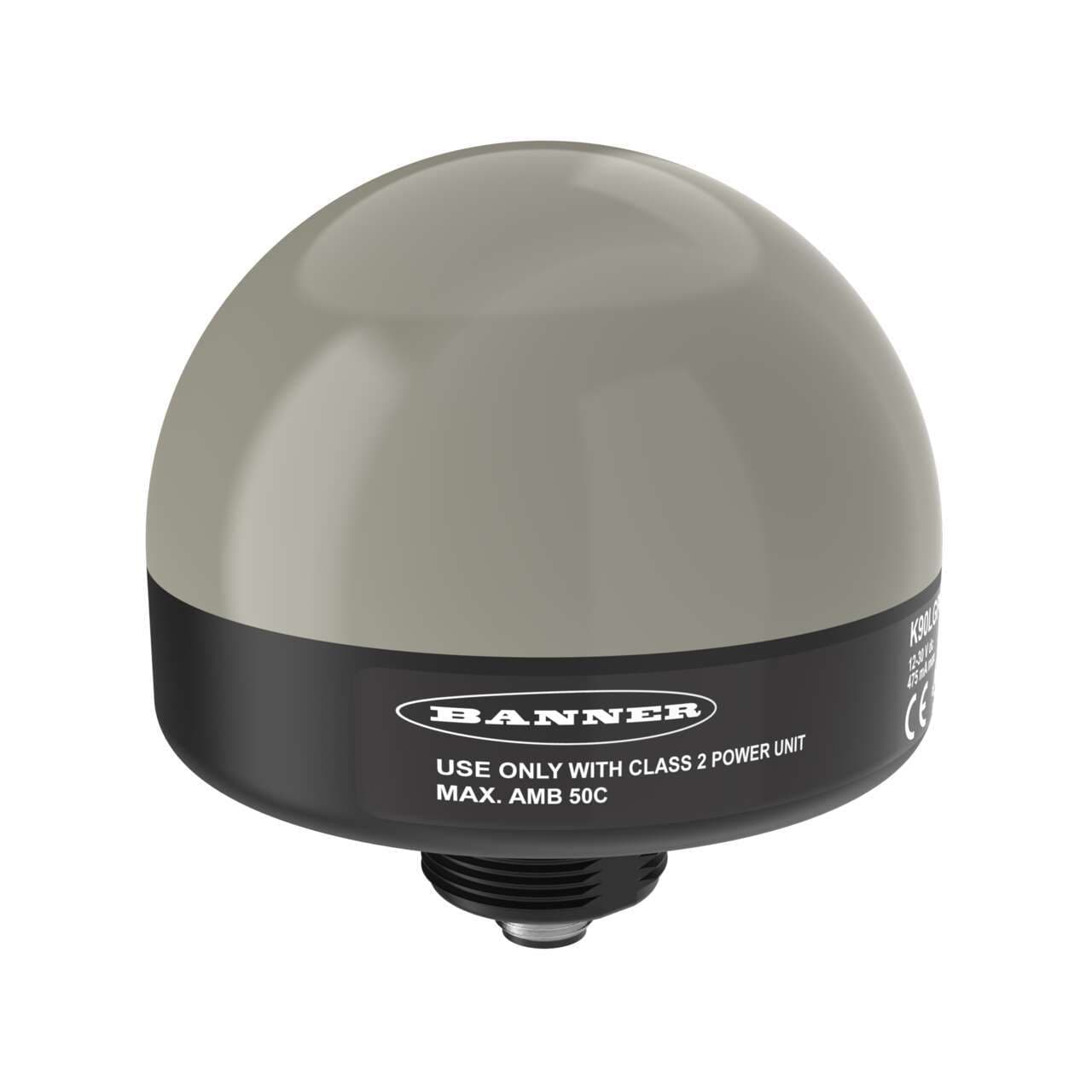

Banner Engineering K90LGYRPQ is a pilot light from the EZ-LIGHT series designed with a 3-color G/Y/R color pattern LED illumination for clear visibility. It features a black housing with a dome window shape, constructed from polycarbonate for both the diffused window and the base, ensuring durability. This part is pre-wired with a 2m / 6.5ft 5-wire cable that terminates with bare end flying leads for easy installation. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K90LGYRPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread, fitting a 90mm / 3-1/2" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C and boasts a high degree of protection with ratings of IP67, NEMA 4X, and NEMA 13, making it suitable for challenging environments. The current consumption is 475mA, and it includes 3 x digital inputs (12-30Vdc; PNP) for color control.

K90LGYRPQ Related Documents

181765.pdf
