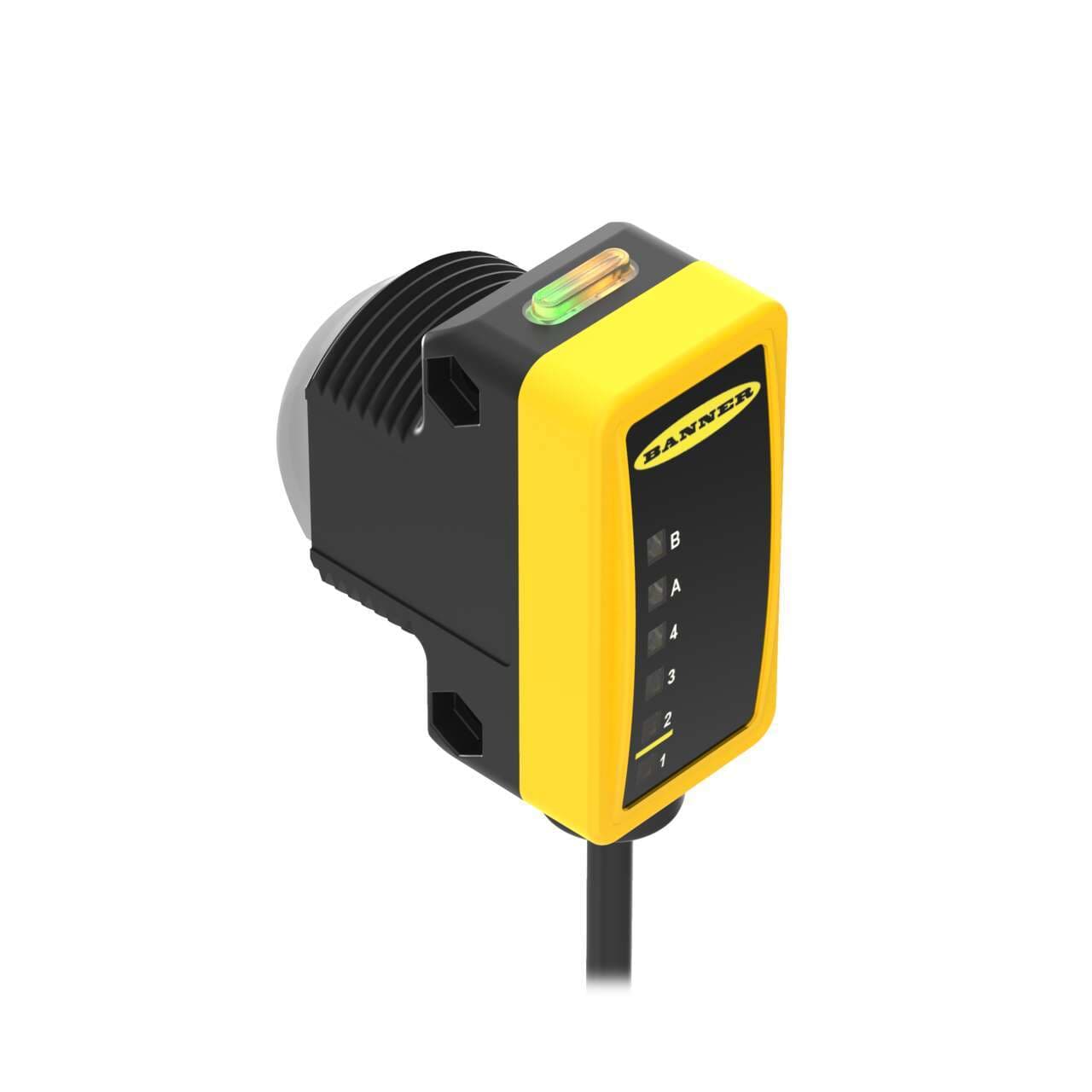

QS30ARX Banner Proximity Sensors
Part#:QS30ARX
Alt. Part#:71560
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: High-Powered Receiver; Range: 213 m; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable (CAR WASH)
Product Details
- Weight 127.00576 g
- Country Of Origin US
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Wavelength 875 nm
- Operating mode Light-ON
- Order code / Manufacturer SKU 71560
- Design through-beam system / opposed mode
- Shape Rectangular
- Degree of protection IP67 NEMA 6
- Sub-range name QS30 high-powered receivers series
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Mounting mode Threaded mount
- Material thermoplastic housing Zeonex lns.
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Infrared (IR)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -20...+70 °C
- Product series / family name WORLD-BEAM series
- Sensing distance 213m
- Thread size M30
- Response time 5ms / 0.005 s
- Compliant with standard(s) cULus CE
- Cable Length (m) 2
- Connection Cable
- IP Rating IP67
- Indicator Bargraph
- Outputs Bipolar (NPN & PNP)
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- DeviceNet No
- Power DC
- Special Feature: Remote Teach No
- Lens Material Zeonex
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 875
- Feature: Timing (Hold/Delay) No
- Quick Disconnect Type No QD
- Max Op. Relative Humidity [%] 95% @ 50°C
- Sensing Mode (Detailed) Receiver
- Feature: Hazardous Area No
- Operation Light Operate
- Delay at Power-up (ms) 100
- Primary Housing Material Thermoplastic
- Feature: Encapsulated Yes
- Min Op. Temp. (°C) -20
- Number of Pins 5
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 213000
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 70
- Input/Output Discrete
- Output response time (ms) 5
- Adjustments N/A
- IO Link No
- Housing Style Rectangular w/M30 Mount
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 5000
- Feature: Audible No
- NEMA Rating NEMA 6
- Opposed Mode Emitter/Receiver Receiver
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30ARX on Powermatic Associates is $174.00. Order now.
About the product
Banner Engineering QS30ARX is a photo-electric sensor designed for through-beam system applications, functioning as a high-powered receiver within the QS30 series. This sensor features a M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. It is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for convenient connection. The QS30ARX boasts a robust thermoplastic housing made from Cyclo Olefin Polymers (COP), ensuring durability in various environments with a degree of protection rated at IP67 NEMA 6P. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor's rectangular shape is designed for efficient integration into a wide range of applications. With a sensing distance of up to 213m and utilizing infrared light with a wavelength of 875 nm, it operates in a Light-ON mode. The QS30ARX provides quick response times of 5ms / 0.005 s and includes 1 x digital output (PNP/NPN transistor) for reliable signaling.
