LEDBA70AD5-XQ Banner Vision Accessories

LEDBA70AD5-XQ on Powermatic Associates
Banner
  • LEDBA70AD5-XQ
  • LEDBA70AD5-XQ

Part#:LEDBA70AD5-XQ

Alt. Part#:16148

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

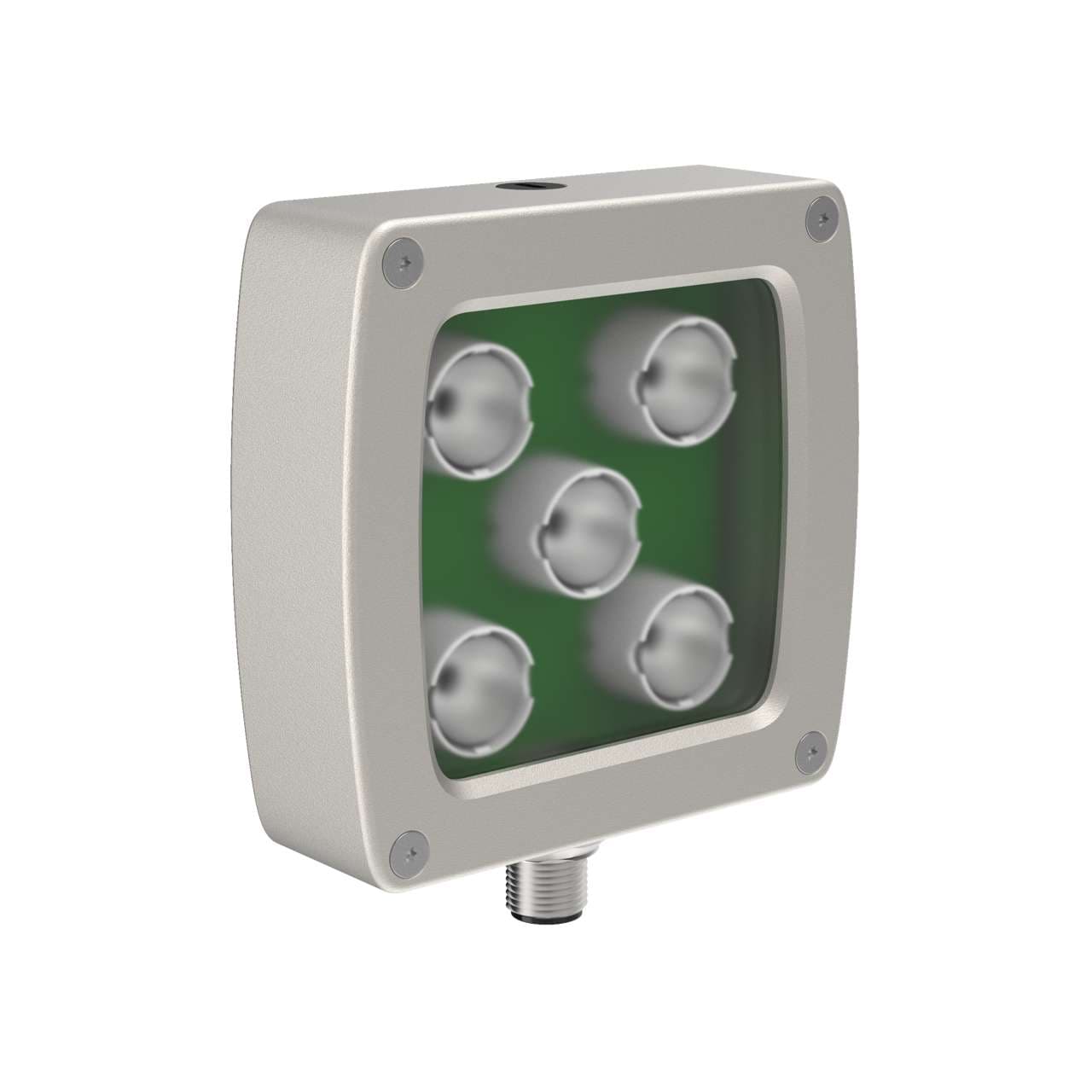

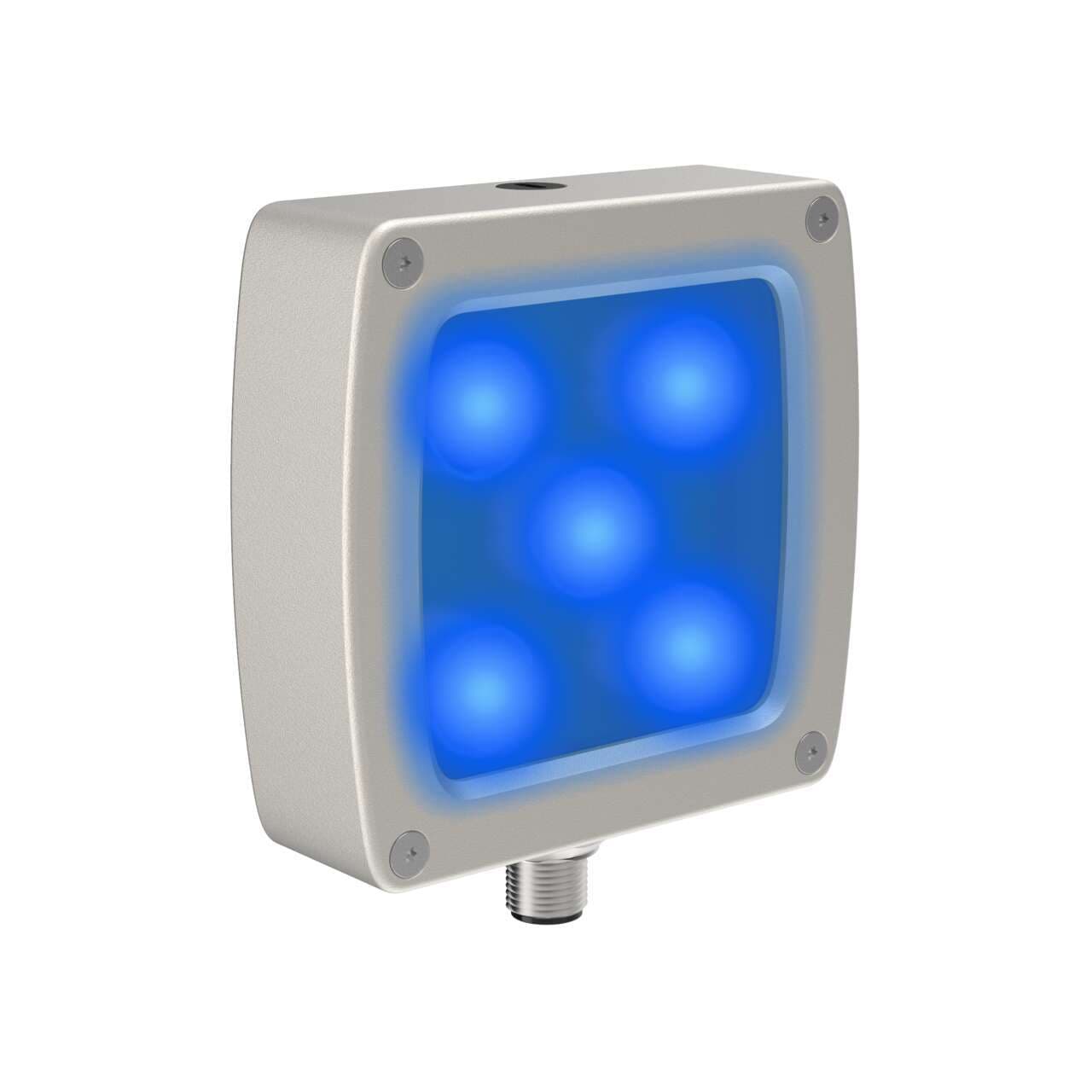

Vision Light - 70 mm Area - IP68; 5 High Intensity Blue LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx

Product Details

  • Weight
    38.101728 g
  • Country Of Origin
    MX
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Max Current Color (mA)
    500
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Housing Style
    Rectangular
  • Power
    DC
  • Feature: Quick Disconnect
    Yes
  • Physical Dimensions (LxWxH or DxH mm)
    102.0 x 91.0 x 28.2
  • Color
    Blue
  • Color Technology
    Standard LED
  • Primary Housing Material
    Nickel-Plated Aluminum
  • Device Type
    Area Light
  • Number of Input Pins/Conductors
    5
  • Connection Type
    Integral QD
  • Window Material
    Diffuse Acrylic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDBA70AD5-XQ on Powermatic Associates is $923.00. Order now.

About the product

Banner Engineering LEDBA70AD5-XQ is an area illumination light designed for high-intensity applications. This unit features a square shape with dimensions of 70x70mm and emits visible blue light. It is constructed with a nickel-plated aluminum housing and a diffused acrylic window for durability. The LEDBA70AD5-XQ is pre-equipped with a 5-pin Euro-style M12 connector for easy installation. It operates on a 24Vdc supply voltage and is rated with a degree of protection of IP68, indicating a high level of protection against dust and water ingress.
