LEDBA70XD5-PQ Banner Vision Accessories
Part#:LEDBA70XD5-PQ
Alt. Part#:16068
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description
Vision Light - 70 mm Area with Potentiometer; 5 High Intensity Blue LEDs - 24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20-xxx
Product Details
- Weight 272.1552 g
- Country Of Origin MX
- Max Op. Temperature (°C) 50
- Physical Dimensions (LxWxH or DxH mm) 76.2 x 76.2 x 29.2
- Supply Voltage 24 V DC
- Max Current Color (mA) 500
- Color Technology Standard LED
- Device Type Area Light
- Connection Type Integral QD
- Window Material Diffuse Acrylic
- Intensity Adjustment Potentiometer
- Color Blue
- Number of Input Pins/Conductors 5
- Housing Style Rectangular
- Primary Housing Material Low-Carbon Steel
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDBA70XD5-PQ on Powermatic Associates is $812.00. Order now.
About the product

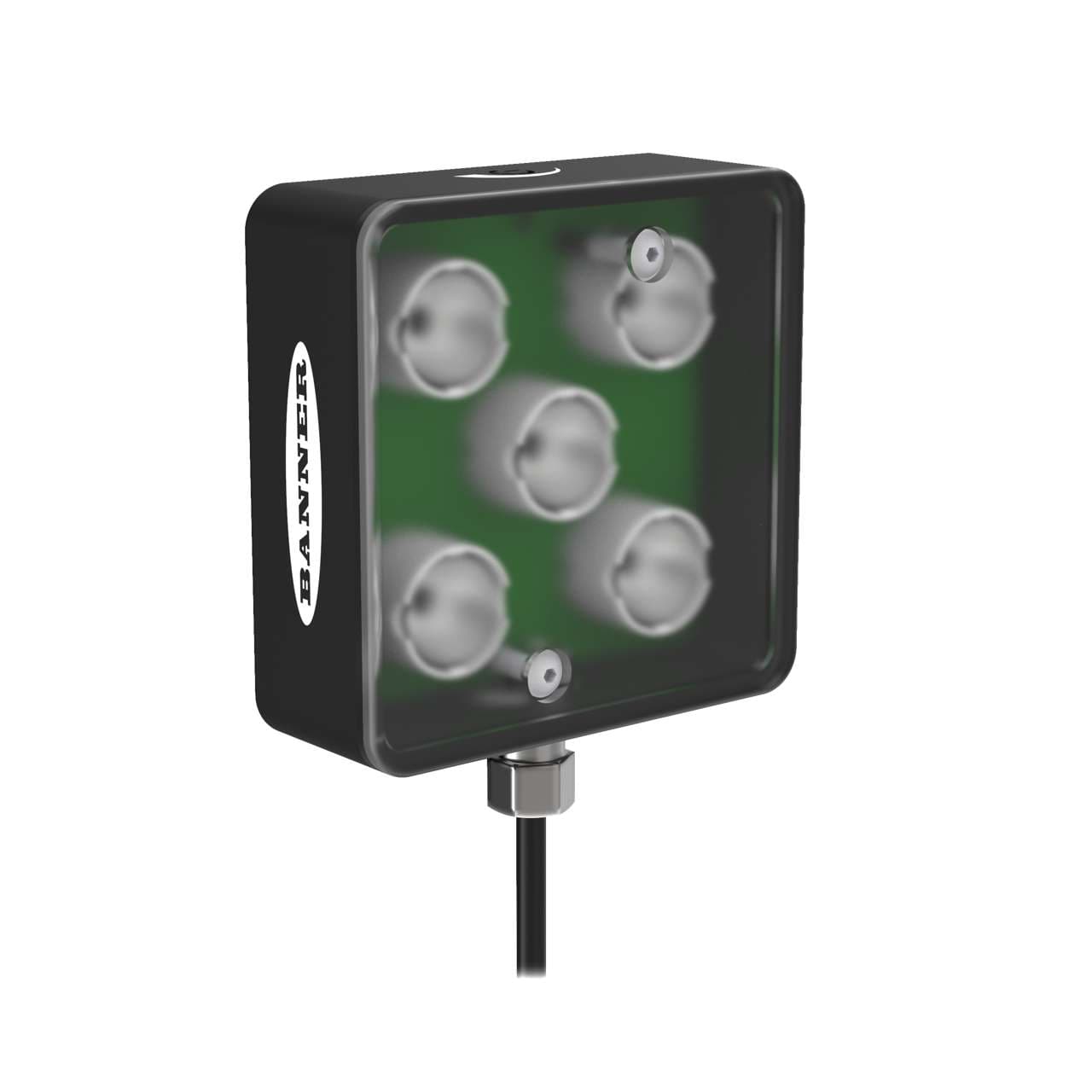

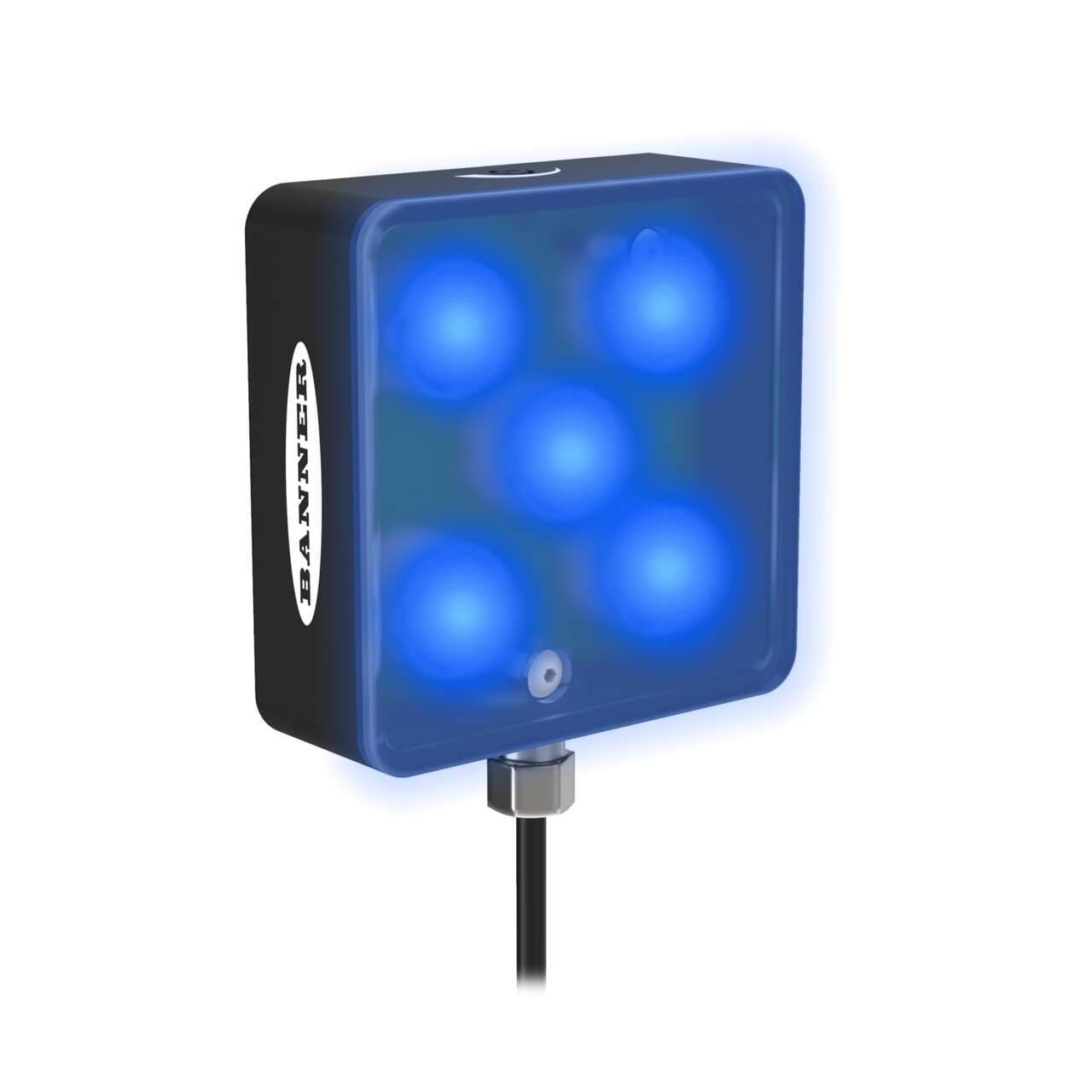

Banner Engineering LEDBA70XD5-PQ is an illumination unit designed for area lighting applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer, and provides high-intensity, visible blue light. This square-shaped unit measures 70x70mm and is constructed with a low-carbon steel housing and a diffused acrylic window. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 5-pin Euro-style M12 connector. The LEDBA70XD5-PQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50.
