LEDBLA290XD6-PLQ Banner Vision Accessories

Name: LEDBLA290XD6-PLQ
Brand: Banner
Price: 1076 USD
Availability: BackOrder

LEDBLA290XD6-PLQ on Powermatic Associates

Part#:LEDBLA290XD6-PLQ

Alt. Part#:82201

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

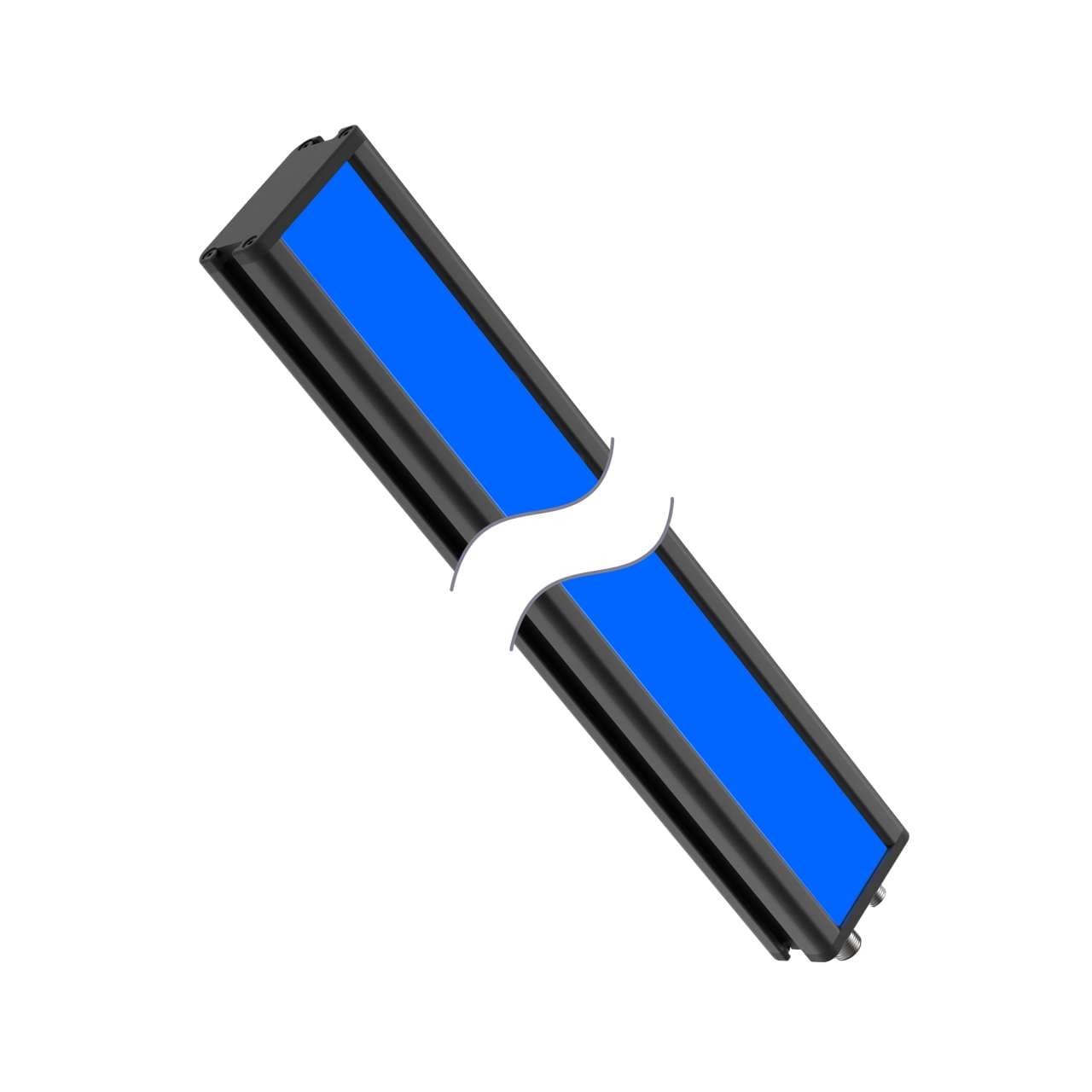

LINEAR ARRAY BLU ACRY DIFF 1 FT DIMMABLE ACTIVE LOW

Product Details

Weight
771.1064 g
Country Of Origin
US
QD Type/Cable Length
M12 (Euro) requires mating cordset
Physical Dimensions (LxWxH or DxH mm)
332.6 x 59.4 x 32.6
Color Technology
Standard LED
Number of Input Pins/Conductors
5
Primary Housing Material
Anodized Aluminum
Window Material
Diffuse Acrylic
Device Type
Bar Light
Max Current Color (mA)
1000
Housing Style
Linear Strip
Lens Focusing Angle (°)/Field of View
6.5
Color
Blue
Intensity Adjustment
Potentiometer and Analog
Connection Type
Integral QD
Max Op. Temperature (°C)
50
Power
DC
Supply Voltage
24 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDBLA290XD6-PLQ on Powermatic Associates is $1,076.00. Order now.

About the product

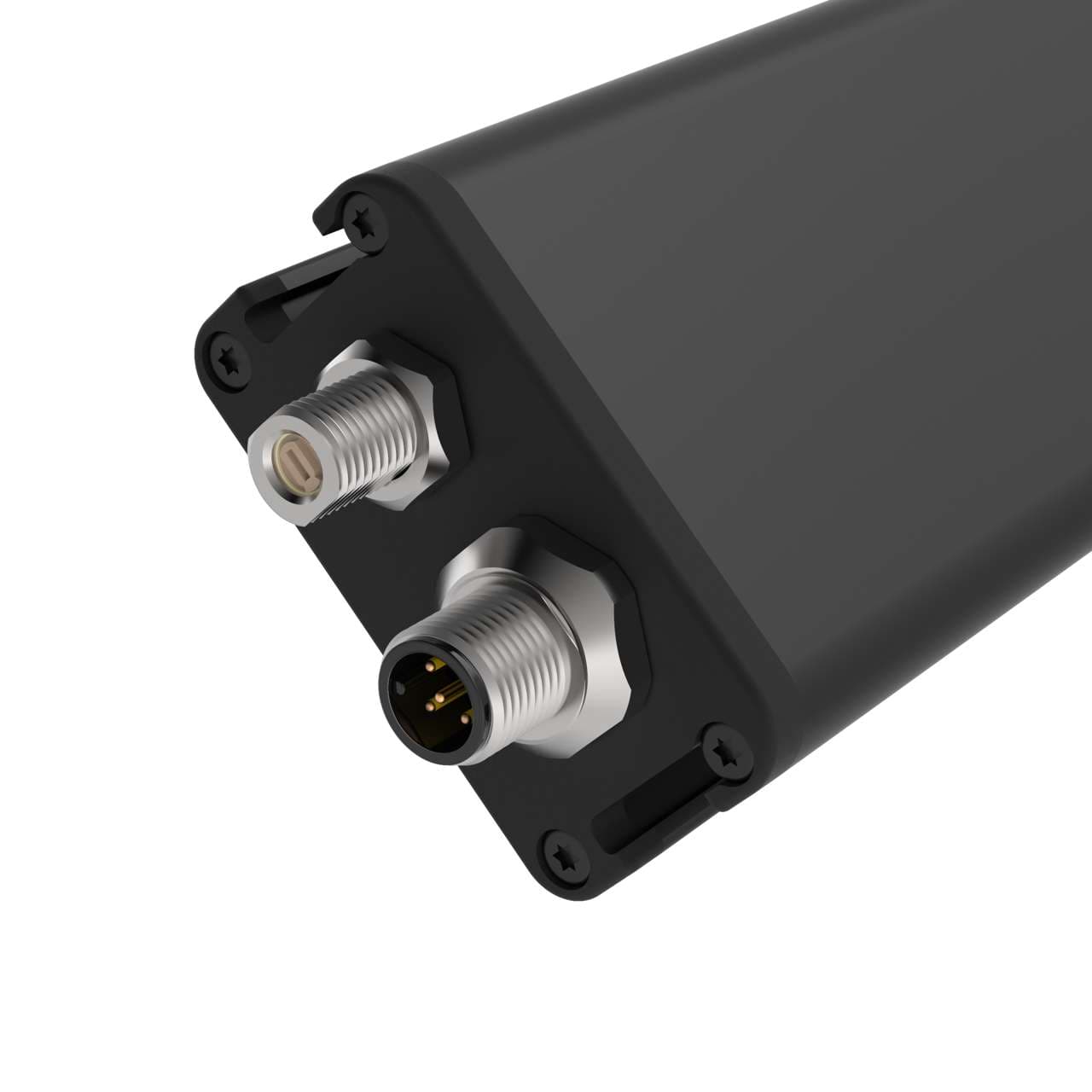

Banner Engineering LEDBLA290XD6-PLQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via either a potentiometer or an analog input, and delivers high-intensity visible blue light. The unit measures 290mm in array length and is housed in black anodized aluminum with a diffused acrylic window, ensuring durability and optimal light diffusion. It is pre-equipped with a 5-pin Euro-style M12 connector for easy installation. The LEDBLA290XD6-PLQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. For enhanced control, it includes 1 x digital input (24Vdc; low-polarity) for strobe control and 1 x analog input (0-10Vdc) for precise intensity control.

LEDBLA290XD6-PLQ Related Documents

150944.pdf
