Part#:LEDWLA1160XD6-PHQ

Alt. Part#:82698

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

LINEAR ARRAY WHT ACRY DIFF DIMM ACT HGH 4 FT

Product Details

  • Weight
    2494.756 g
  • Country Of Origin
    US
  • Color
    White
  • Housing Style
    Linear Strip
  • Physical Dimensions (LxWxH or DxH mm)
    1205.6 x 59.4 x 32.6
  • Device Type
    Bar Light
  • Supply Voltage
    24 V DC
  • Primary Housing Material
    Anodized Aluminum
  • Number of Input Pins/Conductors
    5
  • Intensity Adjustment
    Potentiometer and Analog
  • Max Current Color (mA)
    4000
  • Power
    DC
  • Window Material
    Diffuse Acrylic
  • Feature: Quick Disconnect
    Yes
  • Connection Type
    Integral QD
  • Max Op. Temperature (°C)
    50
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Color Technology
    Standard LED
  • Lens Focusing Angle (°)/Field of View
    6.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDWLA1160XD6-PHQ on Powermatic Associates is $3,721.00. Order now.

About the product

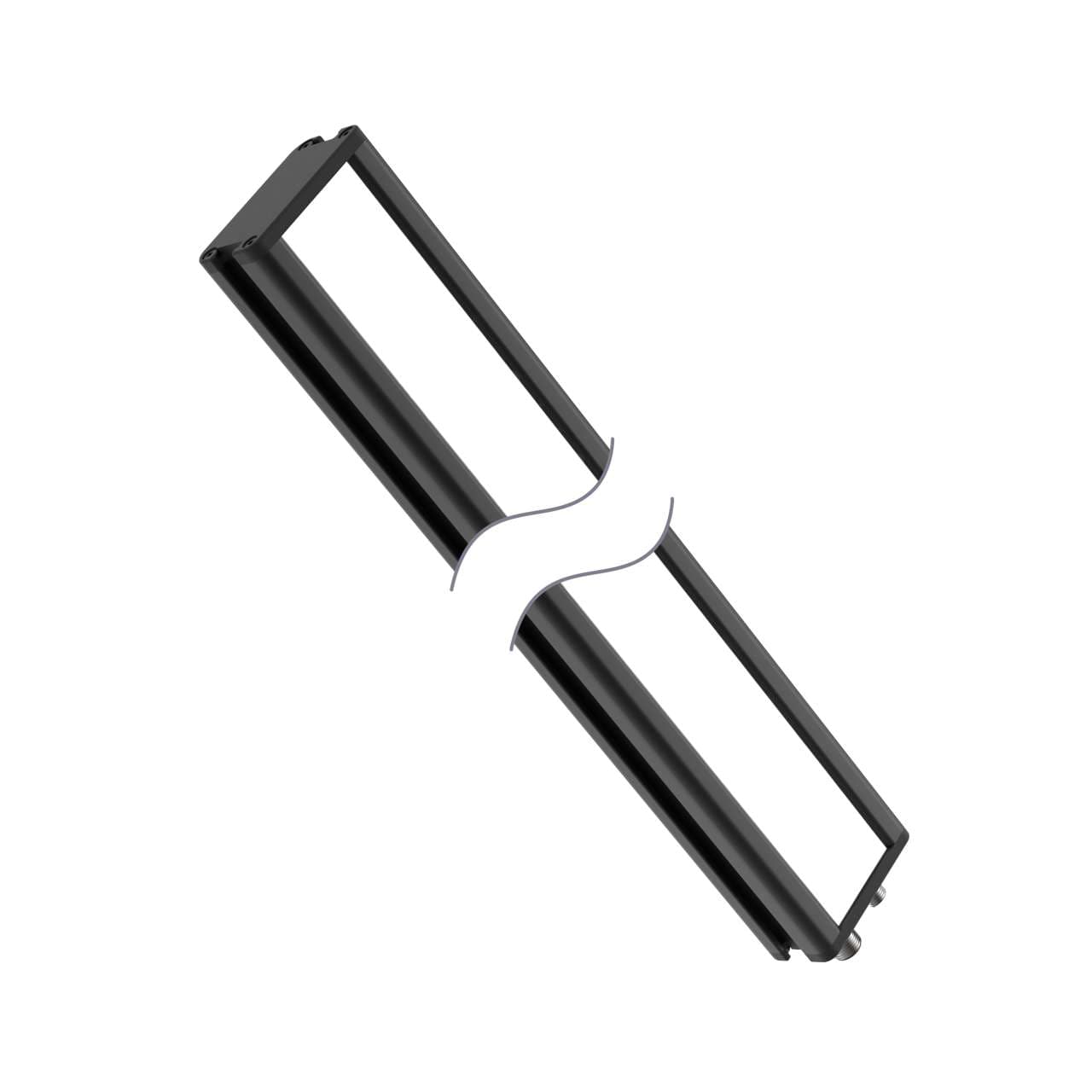

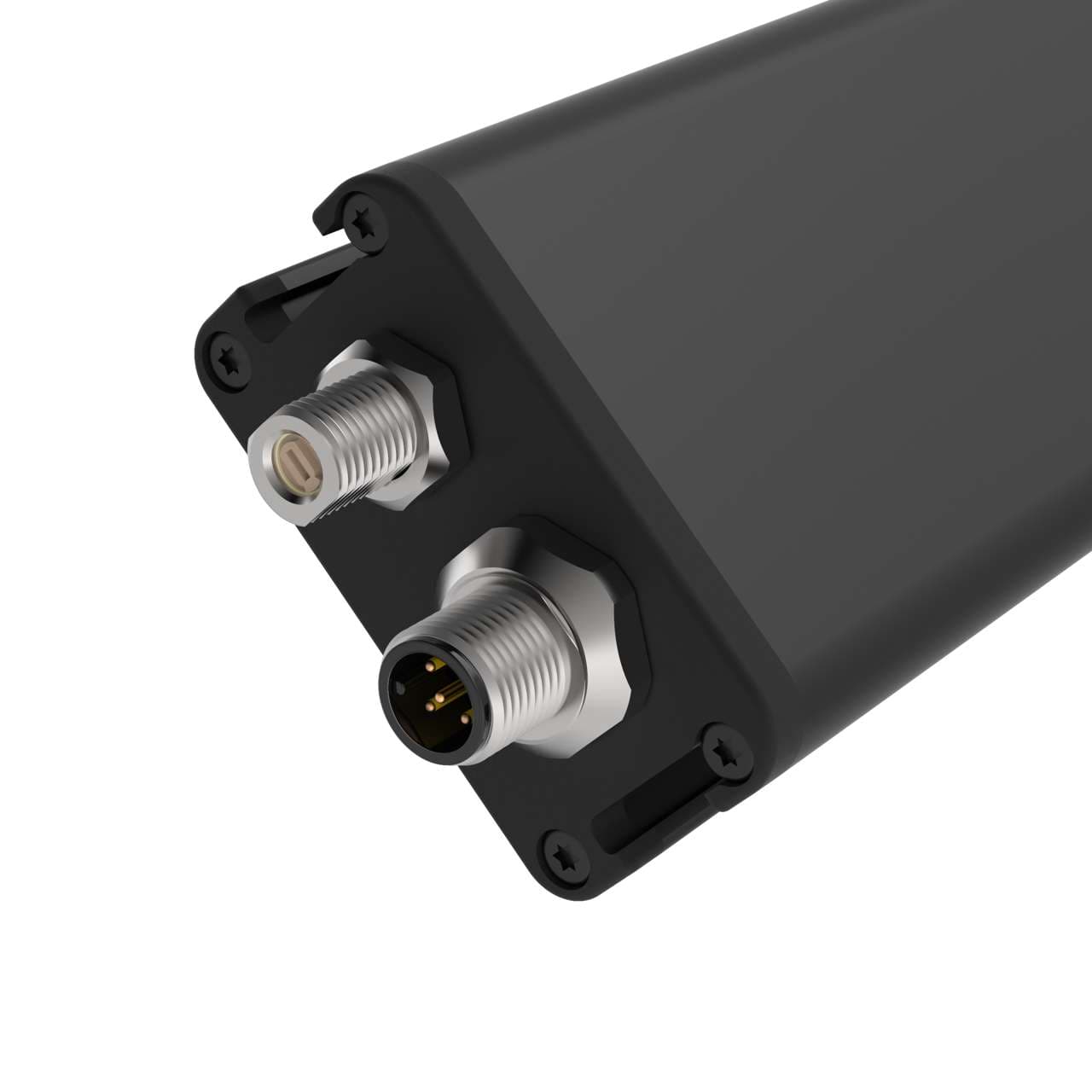

Banner Engineering LEDWLA1160XD6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via either a potentiometer or an analog input, and delivers high-intensity visible white light. The unit measures 1160mm in length and is housed in a black anodized aluminum casing with a diffused acrylic window, adopting a rectangular shape. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDWLA1160XD6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. For control, it includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.
