LS2TP30-150Q88 Banner Safety Light Curtains

LS2TP30-150Q88 on Powermatic Associates
Banner

Part#:LS2TP30-150Q88

Alt. Part#:73544

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

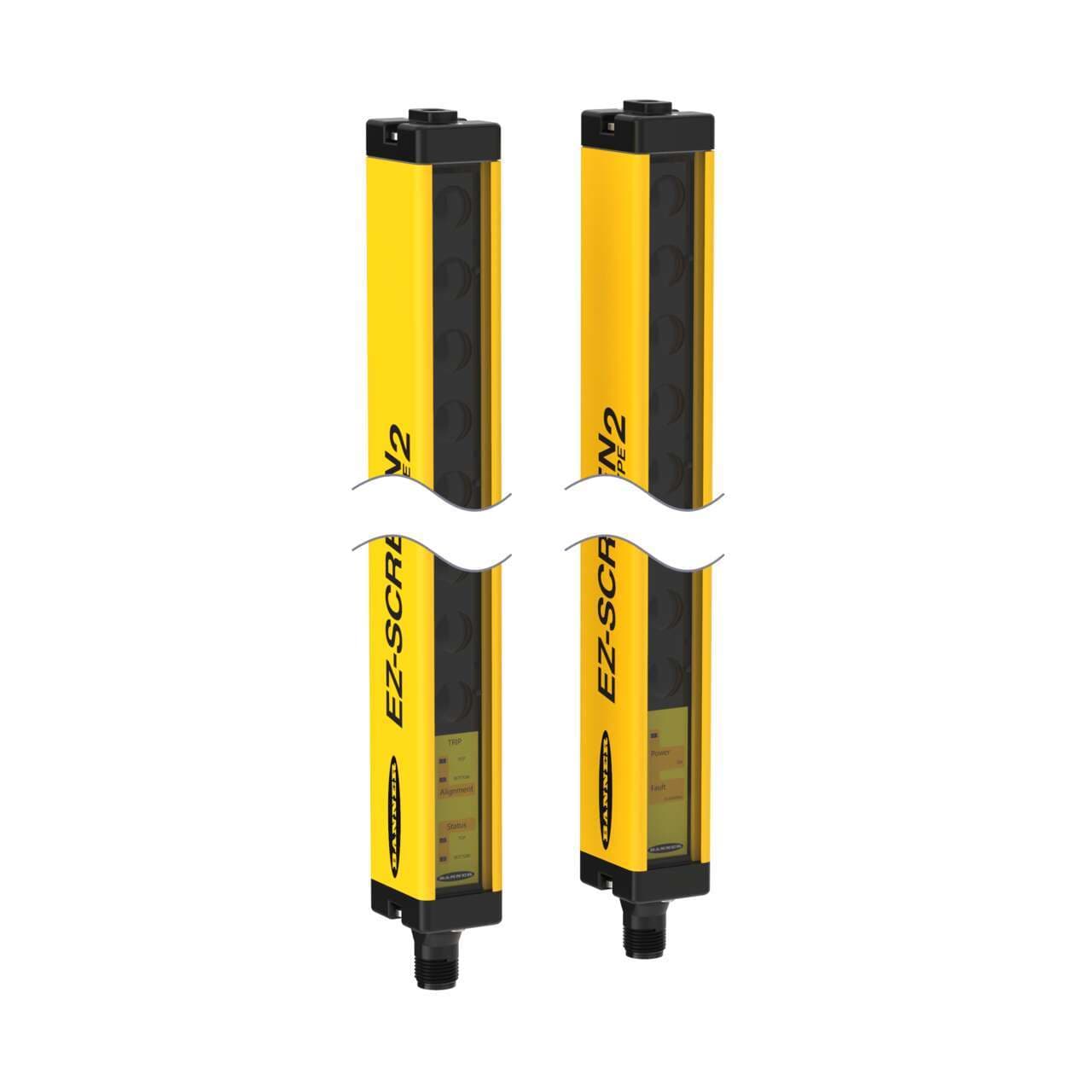

EZ-SCREEN TYPE 2; TRIP Output; E/R Pair; 30 mm Resolution; 150 mm Defined Area; 15 m Range; Yellow Housing; 8-pin M12 Integral QD; Mounting Hardware Included

Product Details

  • Weight
    1637.46712 g
  • Country Of Origin
    MX
  • Feature: Integral Muting
    No
  • Effective Aperture Angle
    Type 2 Per IEC 61496-2
  • Fixed Blanking
    No
  • Resolution (mm)
    30
  • Fault Output
    No
  • Defined Area Height (mm)
    150
  • Recovery Time
    N/A
  • Shock
    10g at 16ms (6000 cycles)
  • Supply Current
    140 mA max.
  • Primary Housing Material
    Aluminum
  • IP Rating
    IP65
  • Scan Code
    None
  • Housing Material
    Aluminum; Zinc; Acrylic
  • OSSD Rating
    24 V dc at 0.5 A each
  • Dimensions WxD (mm)
    25.4 x 31.8
  • PL Rating
    N/A
  • Electrical Safety Class
    III
  • Overall Length (mm)
    215
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Feature: End-to-End Sensing
    No
  • System Type
    Emitter/Receiver Pair
  • Reduced Resolution
    No
  • Auxiliary Output
    No
  • Feature: ESD Safe
    No
  • low-profile
    No
  • Housing Finish
    Yellow Polyester
  • Operating Distance (m)
    0.2 - 15
  • Response Time
    11
  • Vibration
    10-55 Hz at 0.35 mm
  • Safety Level
    Type 2
  • Connector Type
    M12
  • Operating Voltage
    24 V dc +/- 20%
  • SIL Rating
    SIL2; CL2
  • Trip/Latch Output
    Trip
  • External Monitoring Device
    No
  • Number of Pins (Receiver/Emitter)
    8
  • Short Protection
    Yes
  • Test Input
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2TP30-150Q88 on Powermatic Associates is $775.00. Order now.

About the product

Banner Engineering LS2TP30-150Q88 is a safety light curtain within the LS2TP series type 2 light screens, designed for hand detection with a resolution of 30mm. This unit features a protective height of 150mm and operates with a 30mm beam spacing/pitch. It comes in a yellow aluminum housing with acrylic lens and die-cast zinc end caps, ensuring durability. The light curtain is pre-equipped with an 8-pin Euro-style M12 connector for connectivity and requires a 24Vdc supply voltage. It has a net height of 215mm, a width of 26mm, and a depth of 32mm, making it compact for various applications. The operating ambient air temperature range is from 0 to +55°C. With an IP65 degree of protection, it is suitable for use in environments requiring dust and water resistance. The sensing distance ranges from 20cm to 15m, and it features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 11ms.
