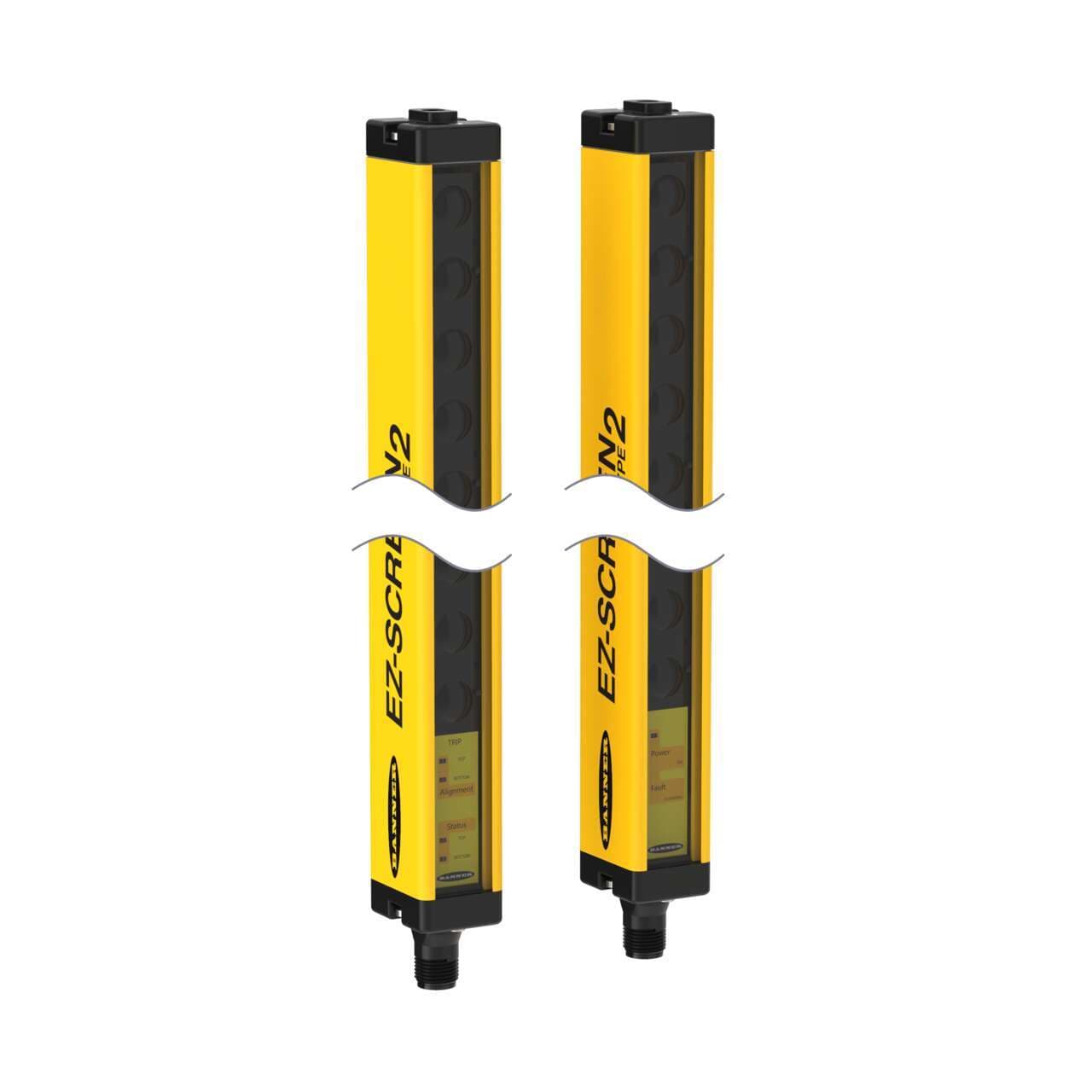

LS2TR30-1500Q8 Banner Safety Light Curtains

Name: LS2TR30-1500Q8
Brand: Banner
Price: 1963 USD
Availability: BackOrder

Part#:LS2TR30-1500Q8

Alt. Part#:73543

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

LS2TR30-1500Q8 EZS TYPE2 R TRIP 30 mm x 1500 mm

Product Details

Weight
2902.9888 g
Country Of Origin
CN
Trip/Latch Output
Trip
Housing Material
Aluminum; Zinc; Acrylic
Feature: ESD Safe
No
Feature: End-to-End Sensing
No
Supply Current
90 mA max.
OSSD Rating
24 V dc at 0.5 A each
Test Input
Yes
Auxiliary Output
No
Fault Output
No
System Type
Receiver
Scan Code
None
SIL Rating
SIL2; CL2
Shock
10g at 16ms (6000 cycles)
Reduced Resolution
No
Resolution (mm)
30
Operating Temperature
0 to +55 deg. C; RH 95%
Recovery Time
N/A
Operating Voltage
24 V dc +/- 20%

Number of Pins (Receiver/Emitter)

IP Rating

IP65

Housing Finish

Yellow Polyester

Connector Type

M12

Defined Area Height (mm)

1500

Dimensions WxD (mm)

25.4 x 31.8

Primary Housing Material

Aluminum

Feature: Integral Muting

Electrical Safety Class

III

Vibration

10-55 Hz at 0.35 mm

Short Protection

Yes

Response Time

PL Rating

N/A

Operating Distance (m)

0.2 - 15

External Monitoring Device

Fixed Blanking

Overall Length (mm)

1563

Effective Aperture Angle

Type 2 Per IEC 61496-2

low-profile

Safety Level

Type 2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2TR30-1500Q8 on Powermatic Associates is $1,963.00. Order now.

About the product

Banner Engineering LS2TR30-1500Q8 is a safety light curtain designed for hand detection with a protective height of 1500mm and operates on a 24Vdc supply voltage. This part of the LS2TR series type 2 light screens features an infrared light color with a wavelength of 850 nm and a beam spacing/pitch of 30mm. It is housed in yellow aluminum with an acrylic lens and die-cast zinc end caps, ensuring durability. The LS2TR30-1500Q8 is equipped with a pre-equipped 8-pin Euro-style M12 connector for connectivity and offers a sensing distance ranging from 20cm to 15m. It has a net height of 1563 mm, a width of 26 mm, and a depth of 32 mm. This safety light curtain provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and has a response time of 25ms. It operates within an ambient air temperature range of 0 to +55°C and is rated IP65 for protection against dust and water ingress.
