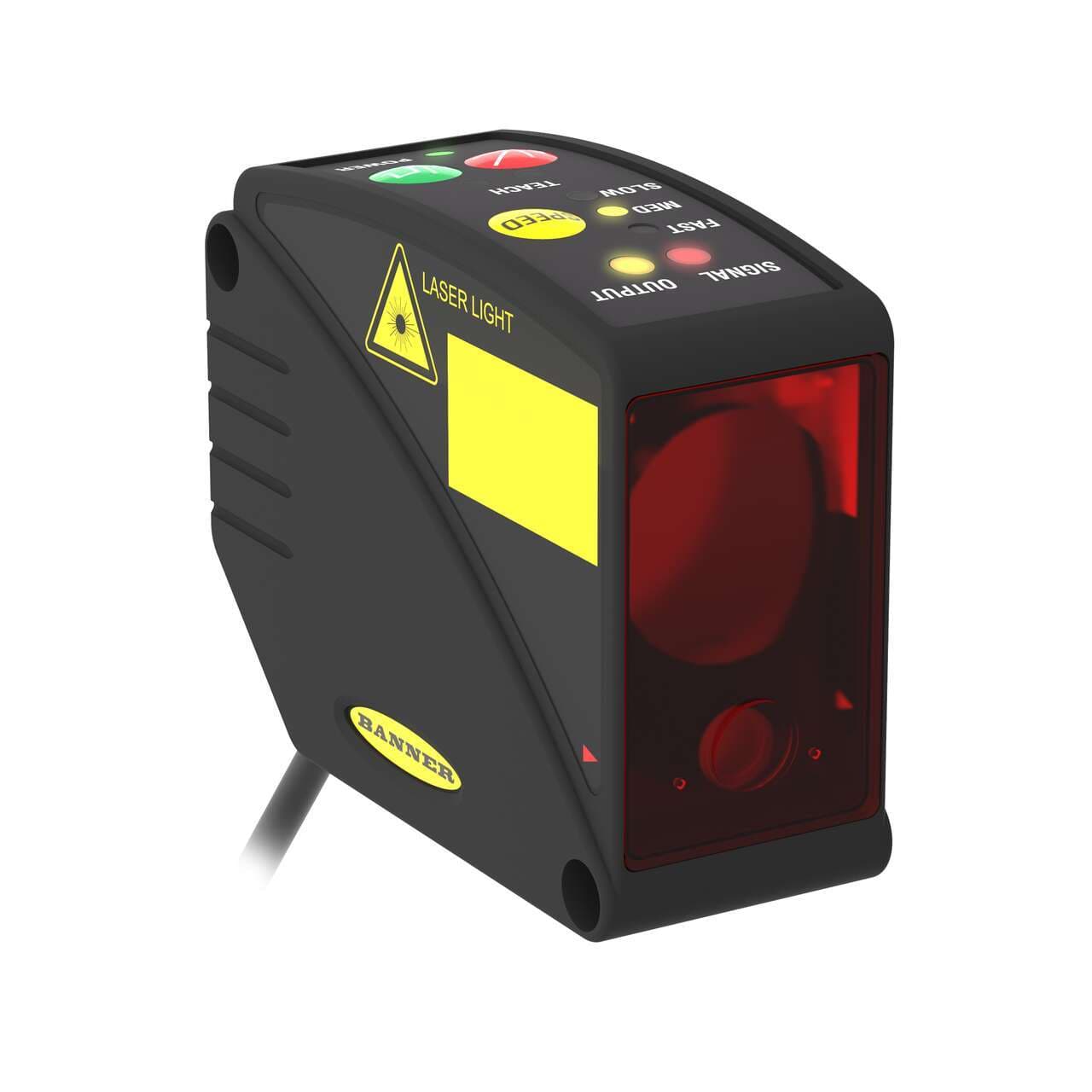

LT3NU Banner Optical Sensors

Product Details

• Weight
  308.44256 g
• Country Of Origin
  US
• Main function
  Sensor (Distance)
• Design
  diffuse time-of-flight system
• Digital outputs
  1 x digital output (NPN transistor)
• Product series / family name
  L-GAGE series
• Supply voltage (DC)
  12Vdc-24Vdc
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Primary brand
  Banner Engineering
• Light Color
  Visible red
• Ambient air temperature for operation
  +50 °C
• Sub-range name
  LT3
• Wavelength
  658 nm
• Shape
  Rectangular
• Protection functions
  Short-circuit
• Functions
  Class 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
• Sensing distance
  30cm...5m
• Analog outputs
  1 x analog output (0-10Vdc)
• Degree of protection
  IP67 NEMA 6
• Material
  ABS housing Acrylic window
Order code / Manufacturer SKU
65505
Analog Output Configuration
0-10 V dc
Temperature Effect (mm/°C)
2 mm/°C
PC Configurable
No
Max Sensing Distance (mm)
5000
Adjustments
Push Button; Remote Teach
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Sensing Beam
Visible Red Laser
Primary Housing Material
ABS
Quick Disconnect Type
No QD
Max Discrete (Switched) Output (mA)
100
Spot Size (@ Reference Distance)
6 mm
Sensing Mode (General)
Proximity
Delay at Power-up (ms)
1000
IP Rating
IP67
Minimum Window Size (mm)
20
Feature: Remote Teach
Yes
SSI
No
Device Type
Sensor
Minimum Sensing Distance (mm)
300
Discrete (Switched) Outputs
1 NPN
Analog Linearity (mm)
+/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
Typical Laser Lifetime (Hours)
75000
RS-485
No
Sensing Mode (Detailed)
Time of Flight
Indicator
LED(s)
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Window Material
Acrylic
Max Ambient Light (Lux)
5000
PROFINET
No
Housing Style
Rectangular
Analog Resolution/Discrete Repeatability
1 to 1.25 at slow response speed
Number of Pins
8
Warm-up Time (minutes)
30
Max Off-state Leakage Current (µA)
5
RS-232
No
Cable Length (m)
2
Connection
Flying Leads
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Minimum Response Time (ms)
1
Power/Current Consumption (exclusive of load)
108 mA max @ 24 V dc
NEMA Rating
NEMA 6
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Feature: Chemical Resistant
No
1-wire Serial Interface
No
Laser Classification
Class 2
Power Supply
12-24 V dc
Color Sensitivity (Typical)
90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
Wireless
No
Common Ethernet Protocol
No
Profibus
No
IO Link
No
Max Operating Temperature (°C)
50
RS-422
No
Output Protection
Protected against short circuit conditions
Max Measurement Range
>1 m - <=20 m
Power
DC
Sensing Beam Wavelength (nm)
658
Discrete Output Hysteresis (mm)
3
Laser Control
Yes
Feature: Timing (Hold/Delay)
No
Input/Output
Analog & Discrete
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
