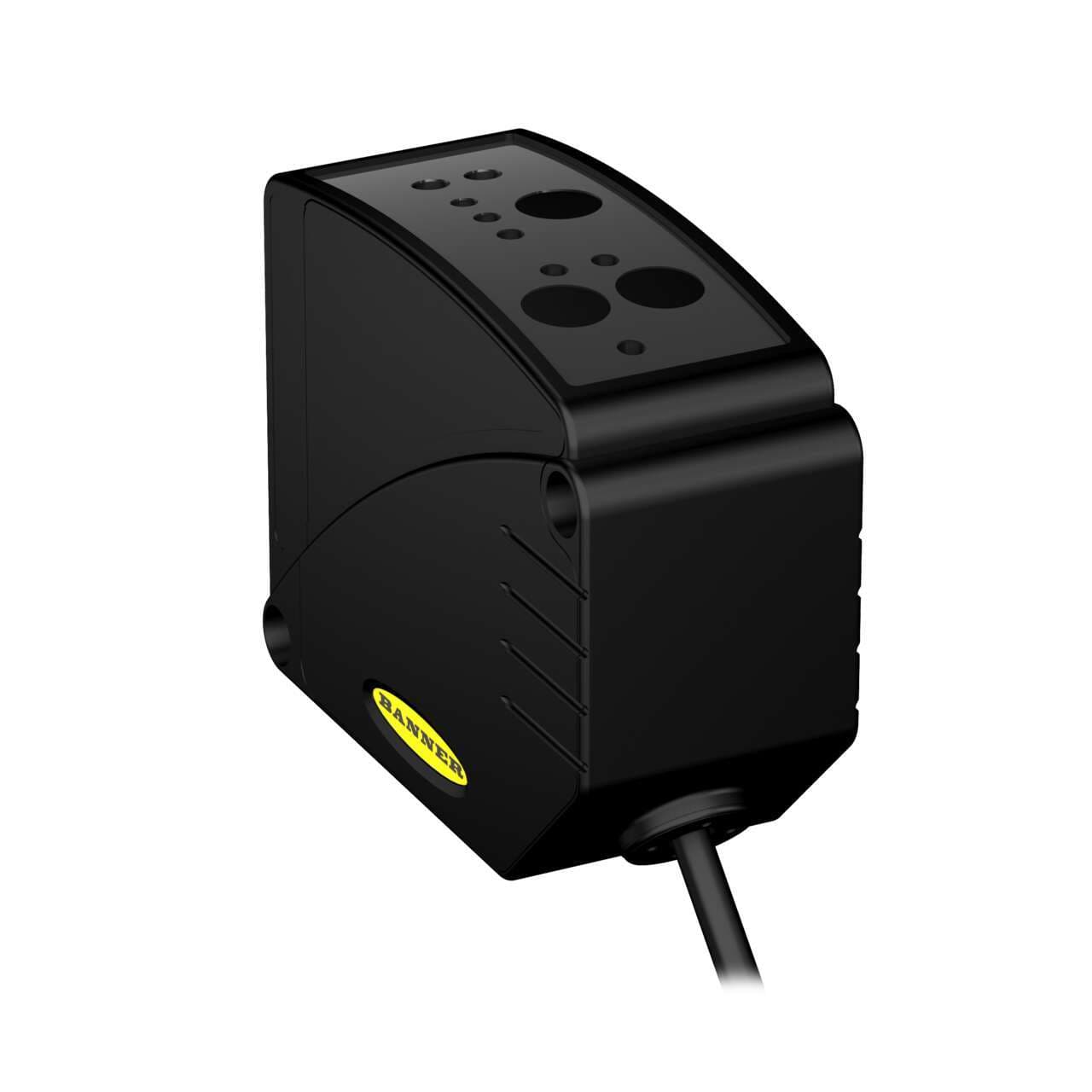

LT3NULV Banner Optical Sensors

Product Details

• Weight
  435.44832 g
• Country Of Origin
  US
• Functions
  Class 1 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  12Vdc-24Vdc
• Wavelength
  658 nm
• Main function
  Sensor (Distance)
• Design
  retro-reflective time-of-flight system
• Digital outputs
  1 x digital output (NPN transistor)
• Order code / Manufacturer SKU
  67276
• Product series / family name
  L-GAGE series
• Sensing distance
  50cm...50m
• Shape
  Rectangular
• Material
  ABS housing Acrylic window
• Sub-range name
  L3 Retro Time-of-Flight
• Light Color
  Visible red
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Analog outputs
  1 x analog output (0-10Vdc)
• Ambient air temperature for operation
  +50 °C
• Protection functions
  Short-circuit
Degree of protection
IP67 NEMA 6
Cable Length (m)
2
Laser Classification
Class 1
Power Supply
12-24 V dc
Discrete (Switched) Outputs
1 NPN
Minimum Response Time (ms)
1
Typical Laser Lifetime (Hours)
75000
1-wire Serial Interface
No
Power
DC
Analog Resolution/Discrete Repeatability
5 to 6 at slow response speed
Number of Pins
8
Max Operating Temperature (°C)
50
Laser Control
Yes
Feature: Chemical Resistant
No
Primary Housing Material
ABS
Indicator
LED(s)
Sensing Beam Wavelength (nm)
658
NEMA Rating
NEMA 6
Max Ambient Light (Lux)
5000
IO Link
No
Max Measurement Range
>20 m
Housing Style
Rectangular
Quick Disconnect Type
No QD
Max Discrete (Switched) Output (mA)
100
Analog Linearity (mm)
+/- 60 mm from 0.5 to 50 m
Feature: Timing (Hold/Delay)
No
Warm-up Time (minutes)
30
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-485
No
Sensing Beam
Visible Red Laser
Connection
Flying Leads
Temperature Effect (mm/°C)
3 mm/°C
Discrete Output Hysteresis (mm)
6
Spot Size (@ Reference Distance)
6 mm
PROFINET
No
Profibus
No
Sensing Mode (General)
Retroreflective
Input/Output
Analog & Discrete
Delay at Power-up (ms)
1000
Output Protection
Protected against short circuit conditions
Minimum Window Size (mm)
40
Feature: Remote Teach
Yes
SSI
No
Sensing Mode (Detailed)
Time of Flight
Analog Output Configuration
0-10 V dc
Adjustments
Push Button; Remote Teach
IP Rating
IP67
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Device Type
Sensor
Minimum Sensing Distance (mm)
500
Output Saturation Voltage NPN Outputs
< 0.2 V at 10 mA; < 0.6 V at 100 mA
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Max Off-state Leakage Current (µA)
5
Wireless
No
PC Configurable
No
Max Sensing Distance (mm)
50000
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Window Material
Acrylic
Power/Current Consumption (exclusive of load)
108 mA max @ 24 V dc
RS-232
No
Common Ethernet Protocol
No
RS-422
No
