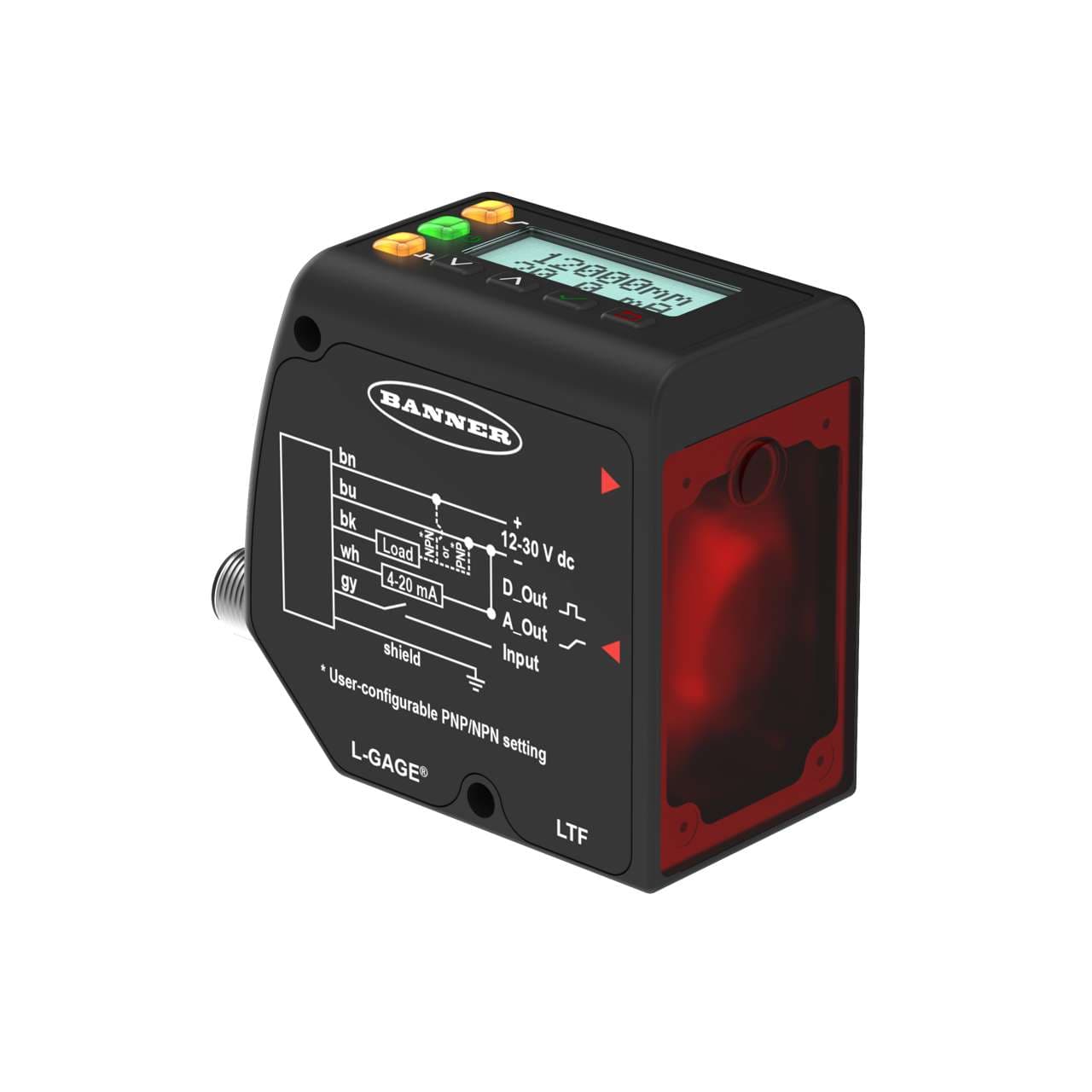

LTF12KC2LDQ Banner Optical Sensors

Product Details

• Weight
  408.2328 g
• Country Of Origin
  US
• Wavelength
  660 nm
• Ambient air temperature for operation
  -20...+55 °C
• Order code / Manufacturer SKU
  801130
• Primary brand
  Banner Engineering
• Product series / family name
  L-GAGE series
• Display
  LCD 2 lines x 8 characters
• Functions
  Class 2 Laser photo-electric distance sensor green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON) TEACH mode
• Sensing distance
  5cm...12m
• Main function
  Sensor (Distance)
• Sub-range name
  LTF
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Light Color
  Visible class 2 red Laser
• Communication protocol
  IO-Link
• Design
  diffuse time-of-flight system
• Shape
  Rectangular
• Digital outputs
  2 x digital outputs (PNP/NPN transistors)
• Material
  Die-cast Zinc alloy housing Acrylic window
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
Compliant with standard(s)
cULus CE
Degree of protection
IP67 NEMA 6
Protection functions
Overload Short-circuit
Sensing Mode (Detailed)
Time of Flight
Primary Housing Material
Zinc Alloy Die-Cast
Power Supply
12-30 V dc
Storage Temperature (°C)
-30 to 65
Minimum Window Size (mm)
10
IO Link
Yes
1-wire Serial Interface
No
PC Configurable
No
Minimum Sensing Distance (mm)
50
Output Saturation Voltage PNP Outputs
< 3V @ 100ma
Max Operating Temperature (°C)
55
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Feature: Chemical Resistant
No
RS-422
No
Housing Style
Rectangular
Connection
Integral QD
Number of Pins
5
Output Protection
Protected against continuous overload and short circuit
Max Ambient Light (Lux)
40000
Discrete Output Hysteresis (mm)
Automatically adjusted or manually settable from 2 to 11950 mm
Sensing Beam
Visible Red Laser
Max Sensing Distance (mm)
12000
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Window Material
Acrylic
Power/Current Consumption (exclusive of load)
<85 mA @ 24 V (< 2.1 W)
Laser Classification
Class 2
Max Measurement Range
>1 m - <=20 m
Output Saturation Voltage NPN Outputs
< 1.6V @ 100ma
NEMA Rating
NEMA 6
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Feature: Remote Teach
Yes
Sensing Mode (General)
Proximity
Indicator
Display; LED(s)
Temperature Effect (mm/°C)
0.25mm/C (typical)
IP Rating
IP67
Laser Control
Yes
Power
DC
Quick Disconnect Type
M12 (Euro)
Delay at Power-up (ms)
2000
Min Operating Temperature (°C)
-20
Feature: Timing (Hold/Delay)
Yes
Analog Linearity (mm)
+/- 10
Analog Resolution/Discrete Repeatability
1
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Spot Size (@ Reference Distance)
6.5 mm at 50 mm, 12.5 mm at 12000 mm
Max Off-state Leakage Current (µA)
PNP <10µA at 30V, NPN <200µa at 30V
RS-485
No
Device Type
Sensor
Sensing Beam Wavelength (nm)
660
Max Discrete (Switched) Output (mA)
100
Warm-up Time (minutes)
15
Alarm Output (mA)
100
Feature: Pump-in/ Pump-out
Yes
PFM Output
Yes
Input/Output
Discrete
Adjustments
Push Button; Remote Teach
Discrete (Switched) Outputs
2 NPN/PNP Configurable
Minimum Response Time (ms)
1.5
RS-232
No
SSI
No
Common Ethernet Protocol
No
PROFINET
No
Feature: Health/ Marginal Signal Output
Yes
Profibus
No
Typical Laser Lifetime (Hours)
60000
Wireless
No
