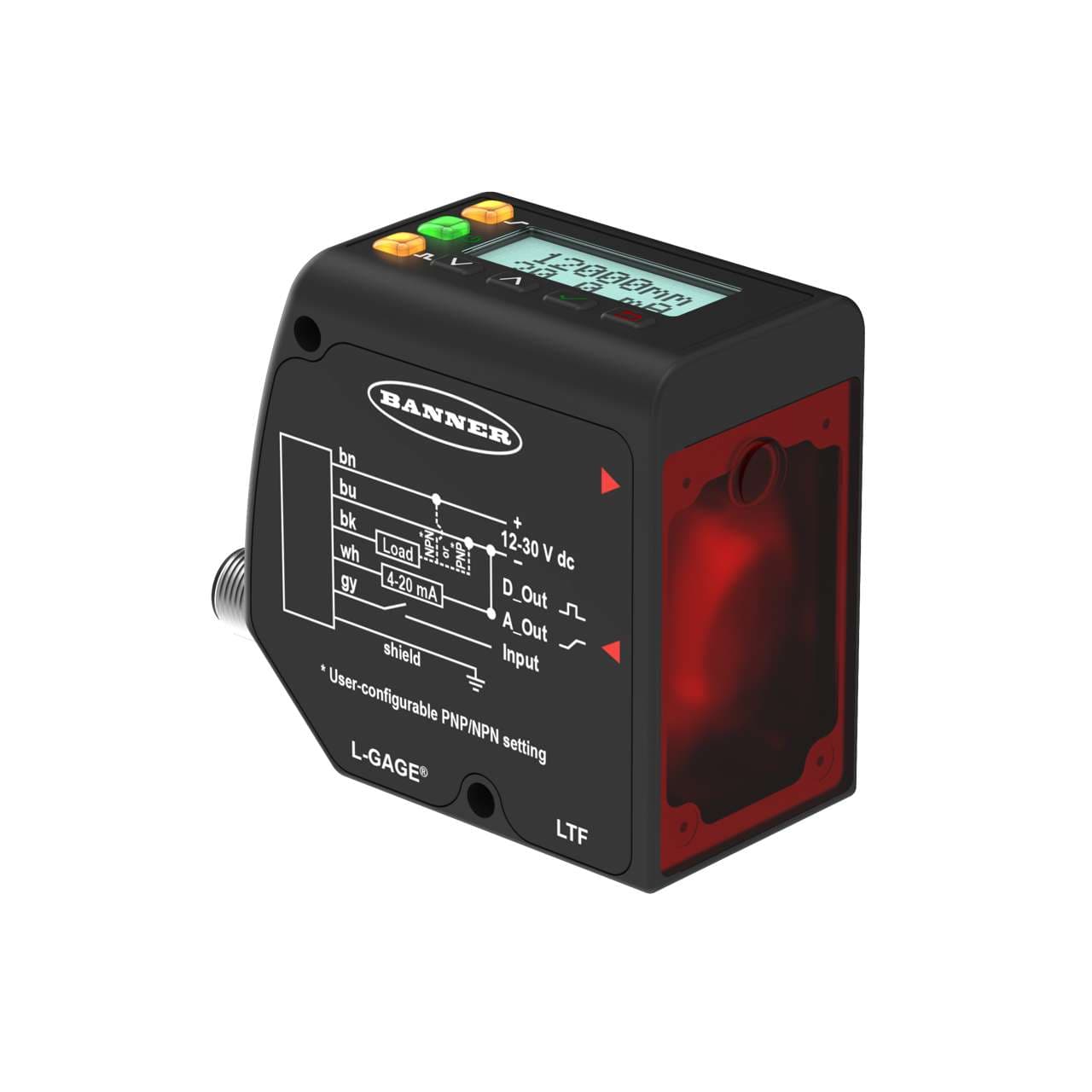

LTF12IC2LDQ Banner Optical Sensors

Product Details

• Weight
  390.08912 g
• Country Of Origin
  US
• Sub-range name
  LTF
• Main function
  Sensor (Distance)
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Wavelength
  660 nm
• Connection type
  Pre-equipped with 5-pin Euro-style M12 connector
• Protection functions
  Overload Short-circuit
• Compliant with standard(s)
  cULus CE
• Display
  LCD 2 lines x 8 characters
• Shape
  Rectangular
• Degree of protection
  IP67 NEMA 6
• Primary brand
  Banner Engineering
• Product series / family name
  L-GAGE series
• Design
  diffuse time-of-flight system
• Sensing distance
  5cm...12m
• Analog outputs
  1 x analog output (4-20mA)
• Order code / Manufacturer SKU
  94849
• Light Color
  Visible class 2 red Laser
• Ambient air temperature for operation
  -20...+55 °C
Functions
Class 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON) TEACH mode
Digital outputs
1 x digital output (PNP/NPN transistor)
Material
Die-cast Zinc alloy housing Acrylic window
Sensing Mode (General)
Proximity
Connection
Integral QD
Number of Pins
5
Warm-up Time (minutes)
15
Device Type
Sensor
Analog Output Configuration
4-20 mA
Temperature Effect (mm/°C)
0.25mm/C (typical)
Typical Laser Lifetime (Hours)
60000
Analog Linearity (mm)
+/- 10
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-232
No
Sensing Beam
Visible Red Laser
Sensing Mode (Detailed)
Time of Flight
Max Sensing Distance (mm)
12000
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Min Operating Temperature (°C)
-20
Max Ambient Light (Lux)
40000
PROFINET
No
Primary Housing Material
Zinc Alloy Die-Cast
Minimum Sensing Distance (mm)
50
Window Material
Acrylic
Feature: Chemical Resistant
No
Profibus
No
Housing Style
Rectangular
Input/Output
Analog & Discrete
Analog Resolution/Discrete Repeatability
1
Output Saturation Voltage PNP Outputs
< 3V @ 100ma
Storage Temperature (°C)
-30 to 65
Minimum Response Time (ms)
1.5
Laser Control
Yes
Max Off-state Leakage Current (µA)
PNP <10µA at 30V, NPN <200µa at 30V
Wireless
No
PC Configurable
No
Laser Classification
Class 2
Quick Disconnect Type
M12 (Euro)
Power Supply
12-30 V dc
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Output Protection
Protected against continuous overload and short circuit
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Power
DC
Output Saturation Voltage NPN Outputs
< 1.6V @ 100ma
Max Discrete (Switched) Output (mA)
100
IP Rating
IP67
Power/Current Consumption (exclusive of load)
<85 mA @ 24 V (< 2.1 W)
IO Link
No
Max Measurement Range
>1 m - <=20 m
Adjustments
Push Button; Remote Teach
NEMA Rating
NEMA 6
Minimum Window Size (mm)
10
Feature: Timing (Hold/Delay)
Yes
SSI
No
Indicator
Display; LED(s)
Sensing Beam Wavelength (nm)
660
Delay at Power-up (ms)
2000
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Max Operating Temperature (°C)
55
Feature: Remote Teach
Yes
RS-422
No
Spot Size (@ Reference Distance)
6.5 mm at 50 mm, 12.5 mm at 12000 mm
Alarm Output (mA)
100
Feature: Health/ Marginal Signal Output
Yes
Discrete Output Hysteresis (mm)
Automatically adjusted
Common Ethernet Protocol
No
RS-485
No
1-wire Serial Interface
No
