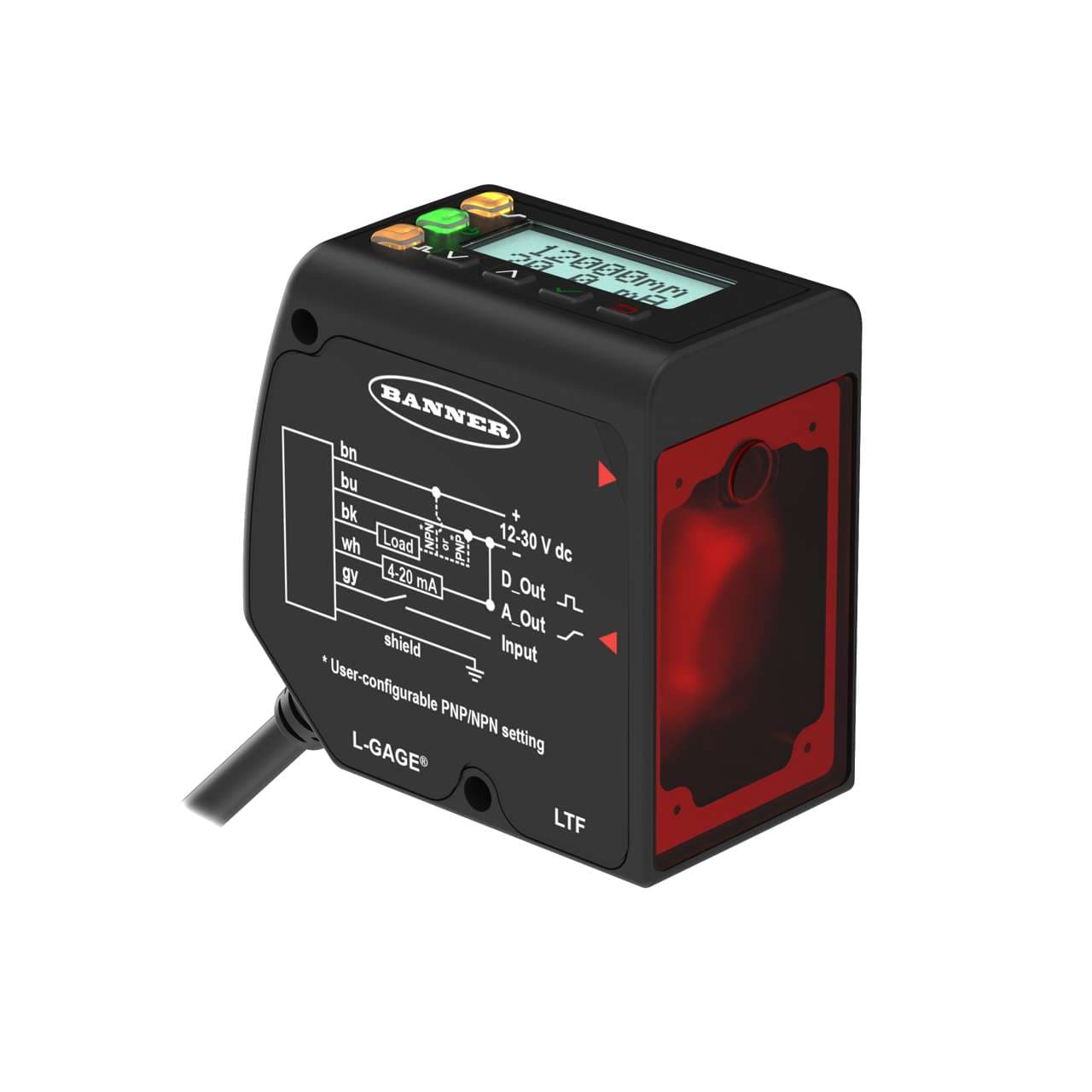

LTF12IC2LD Banner Optical Sensors

Product Details

• Weight
  503.48712 g
• Country Of Origin
  US
• Product series / family name
  L-GAGE series
• Design
  diffuse time-of-flight system
• Primary brand
  Banner Engineering
• Functions
  Class 2 Laser photo-electric distance sensor green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON) TEACH mode
• Sub-range name
  LTF
• Sensing distance
  5cm...12m
• Shape
  Rectangular
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Wavelength
  660 nm
• Ambient air temperature for operation
  -20...+55 °C
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Analog outputs
  1 x analog output (4-20mA)
• Protection functions
  Overload Short-circuit
• Compliant with standard(s)
  cULus CE
• Display
  LCD 2 lines x 8 characters
• Degree of protection
  IP67 NEMA 6
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Order code / Manufacturer SKU
  94851
Main function
Sensor (Distance)
Light Color
Visible class 2 red Laser
Material
Die-cast Zinc alloy housing Acrylic window
Max Measurement Range
>1 m - <=20 m
Laser Classification
Class 2
Power Supply
12-30 V dc
Output Saturation Voltage PNP Outputs
< 3V @ 100ma
NEMA Rating
NEMA 6
Discrete Output Hysteresis (mm)
Automatically adjusted
IO Link
No
Cable Length (m)
2
Adjustments
Push Button; Remote Teach
Analog Output Configuration
4-20 mA
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Spot Size (@ Reference Distance)
6.5 mm at 50 mm, 12.5 mm at 12000 mm
Sensing Mode (General)
Proximity
Indicator
Display; LED(s)
Sensing Beam Wavelength (nm)
660
Max Discrete (Switched) Output (mA)
100
Min Operating Temperature (°C)
-20
Max Off-state Leakage Current (µA)
PNP <10µA at 30V, NPN <200µa at 30V
RS-232
No
PC Configurable
No
Input/Output
Analog & Discrete
Temperature Effect (mm/°C)
0.25mm/C (typical)
Output Protection
Protected against continuous overload and short circuit
Minimum Window Size (mm)
10
Housing Style
Rectangular
Analog Resolution/Discrete Repeatability
1
Number of Pins
5
Max Operating Temperature (°C)
55
Laser Control
Yes
Power
DC
Quick Disconnect Type
No QD
Delay at Power-up (ms)
2000
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Alarm Output (mA)
100
Common Ethernet Protocol
No
Sensing Mode (Detailed)
Time of Flight
Connection
Flying Leads
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Storage Temperature (°C)
-30 to 65
Max Ambient Light (Lux)
40000
Feature: Timing (Hold/Delay)
Yes
Device Type
Sensor
Max Sensing Distance (mm)
12000
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Window Material
Acrylic
Power/Current Consumption (exclusive of load)
<85 mA @ 24 V (< 2.1 W)
Analog Linearity (mm)
+/- 10
RS-485
No
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Warm-up Time (minutes)
15
Typical Laser Lifetime (Hours)
60000
PROFINET
No
Sensing Beam
Visible Red Laser
Primary Housing Material
Zinc Alloy Die-Cast
Minimum Sensing Distance (mm)
50
Output Saturation Voltage NPN Outputs
< 1.6V @ 100ma
IP Rating
IP67
Minimum Response Time (ms)
1.5
Feature: Health/ Marginal Signal Output
Yes
Wireless
No
Feature: Remote Teach
Yes
Profibus
No
RS-422
No
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
SSI
No
1-wire Serial Interface
No
Feature: Chemical Resistant
No
