M12PD W-30 Banner Sensors & Transducers

M12PD W-30 on Powermatic Associates
Banner

Part#:M12PD W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

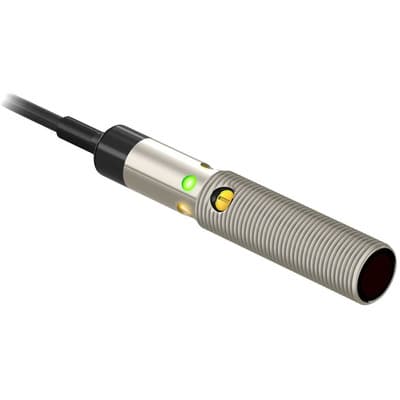

Product description

Photo-electric sensor with diffuse mode - Banner Engineering (M12 barrel series - M12) - Part #77204 - Sensing range 400mm - Visible red light (660nm) - 1 x digital output (PNP transistor) (Light-ON or Dark-ON operation) - Supply voltage 10Vdc-30Vdc (12Vd

Product Details

  • Sensing distance
    400mm
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Sub-range name
    M12
  • Wavelength
    660 nm
  • Connection type
    Pre-wired with 30ft / 9m cable terminated with bare end flying leads
  • Material
    Nickel-plated brass housing PMMA lns.
  • Product series / family name
    M12 barrel series
  • Design
    diffuse mode
  • Thread size
    M12
  • Degree of protection
    IP67 IP68 NEMA 5 NEMA 6
  • Order code / Manufacturer SKU
    77204
  • Response time
    0.5ms / 0.0005 s
  • Main function
    Sensor (Photo-electric)
  • Functions
    Photo-electric sensor green LED (power ON) amber LED (light sensed) potentiometer adjustment
  • Light Color
    Visible red
  • Equivalent to
    M12PDW30
  • Shape
    Cylindrical threaded/barrel
  • Digital outputs
    1 x digital output (PNP transistor)
  • Compliant with standard(s)
    CE
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -20...+60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M12PD W-30 Related Documents

Banner Engineering - M12 series - Datasheet.pdf
